User Manual for Avantco 177DC1800 1800W Drop-In Induction Range
Quick guide for the Avantco 177DC1800 1800W Drop-In Induction Range. Includes setup, operation, safety warnings, error codes, and maintenance instructions.
Quick answers from the manual
Quick answer
- The Avantco 177DC1800 is an 1800W drop-in induction range. It operates on 120V and features adjustable power levels (1-20) and temperature settings (140-460°F). p. 1, 2, 7
Key actions
- Adjusting Power/Temperature p. 7
- Cleaning p. 10
First start
- Place magnetic cookware on the plate, plug in, rotate the knob to set power, or press P/F for temperature. p. 7
Problems and fixes
E0 Error
No cookware on cooker. Place cookware on plate.
p. 9
E1 Error
Temperature sensor overheated. Let cool.
p. 9Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E0 | No cookware on cooker | Place cookware on plate and turn on | p. 9 |
| E1 | Temperature sensor overheated/sensor out of order | Unit will stop heating; E1 will disappear when cooled | p. 9 |
| E2 | Cookware too hot | Unplug and let cool down completely | p. 9 |
| E3 | Power surge protection | Unit will return to normal function when current is normal | p. 9 |
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wattage | 1800W | Power consumption | p. 2 |
| Voltage | 120V | Operating voltage | p. 2 |
| Temperature Range | 140-460°F | Adjustable temperature range | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Operation p. 7
- Safety Functions p. 9
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual

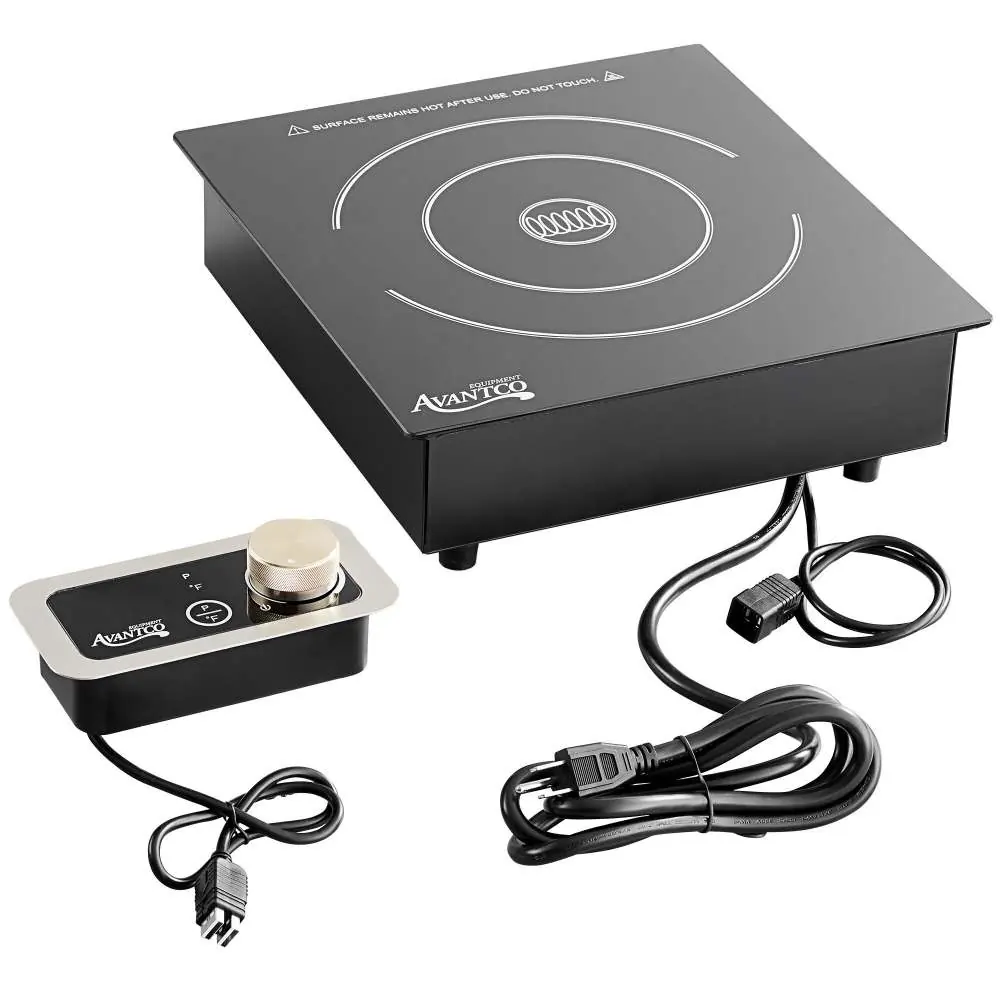

The Avantco 177DC1800 is an 1800W drop-in induction range designed for indoor use. It requires a 120V grounded power socket. Always ensure the appliance is placed on a stable, flat, and dry surface. Use only magnetic cookware with a flat bottom. Never leave the appliance unattended while in operation.
Specifications
- Model: 177DC1800
- Wattage: 1800W
- Voltage: 120V / 60Hz
- Temperature Range: 140-460°F
- Dimensions: 12.6"W x 13.39"D x 4.45"H
Operation
To operate the induction range:
- Place suitable magnetic cookware filled with food centered on the cooking field.
- Plug the unit into a suitable socket; a long acoustic signal will sound, and the display will show "----".
- Power Mode: Rotate the knob to switch to power mode. The fan will start, and the display will show "10" (default). Adjust power levels from 1 to 20 using the knob.
- Temperature Mode: Touch the "P/F" button to switch to temperature mode. Adjust the temperature from 140 to 460°F using the knob.
The unit will switch off automatically when the cooking time is finished.

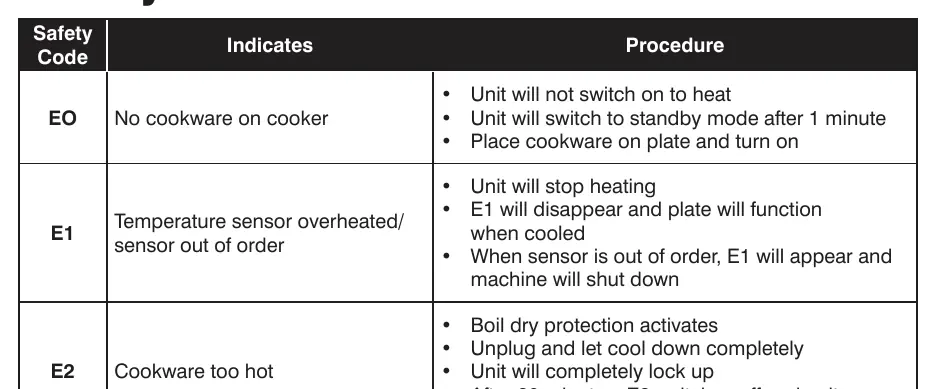

Safety Functions
The unit features built-in safety protections indicated by error codes on the display:
- E0: No cookware detected. Place cookware on the plate.
- E1: Temperature sensor overheated or out of order. Allow the unit to cool.
- E2: Cookware too hot (boil dry protection). Unplug and let cool.
- E3: Power surge protection. Unit will resume when current returns to normal.
Cookware Compatibility
Suitable: Steel, cast iron, enameled iron, stainless steel, and flat-bottom pans with a diameter of 4¾" to 10¼". Look for the spiral symbol on the bottom.
Not Suitable: Glass, ceramic, copper, aluminum, or rounded-bottom pans.
Cleaning and Maintenance
- Always switch off and unplug the appliance before cleaning.
- Let the unit cool down completely.
- Wipe the plates and stainless steel surface with a damp cloth only.
- Do not immerse the device or cord in water.
- Do not use abrasive cleaners, sharp objects, or metal scouring pads.
- Store in a dry place out of reach of children.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Display shows E0
No cookware detected. Place magnetic cookware on the plate.
Display shows E1
Temperature sensor overheated. Allow the unit to cool down.
Display shows E2
Cookware too hot (boil dry protection). Unplug and let cool completely.
Display shows E3
Power surge protection. Wait for current to return to normal.
Before use
- Ensure the power supply is 120V grounded.
- Place the unit on a stable, flat, and dry surface.
- Verify cookware is magnetic (test with a magnet).
- Ensure cookware has a flat bottom (4¾" to 10¼").
- Check that ventilation slots are not blocked.
Specs in practice
- Power Levels
- Adjustable from 1 to 20 for heat intensity.
- Temperature Range
- Adjustable from 140°F to 460°F.
- Cutout Dimensions
- 11.82"W x 12.6"D required for installation.
Images and diagrams
- The control panel features a rotating knob for power/temperature adjustment and a P/F button to toggle between modes.
- Induction works by creating an alternating electromagnetic field that heats the magnetic bottom of the cookware directly.
Model compatibility
- Do not use glass, ceramic, copper, or aluminum cookware.
- Do not use rounded-bottom pans.
- Keep pacemakers at least 60 cm away from the device during operation.
