User Manual for Avantco Electric Portable Hot Plates 177EB202SBSM / 177EB202F2BM
Quick guide for Avantco Electric Portable Hot Plates (177EB202SBSM, 177EB202F2BM). Includes installation, operation, safety, and maintenance instructions for commercial use.
Quick answers from the manual
Quick answer
- The Avantco Electric Portable Hot Plate is a commercial-grade appliance requiring a 240V power source. It must be installed on a flat, non-combustible surface with adjustable legs attached. Always unplug after use and clean with a damp cloth; do not immerse in water. p. 1, 4, 5, 6
Key actions
- Install adjustable legs p. 4
- Clean the unit p. 6
First start
- Remove plastic coating p. 4
- Install legs p. 4
Problems and fixes
Unit fails to operate
Check power source, circuit breaker, pilot light, and voltage.
p. 6Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 240V | Required electrical supply | p. 4 |
| Wattage | 3000W | Total power consumption | p. 4 |
Where to find it in the PDF
- Safety Information p. 3

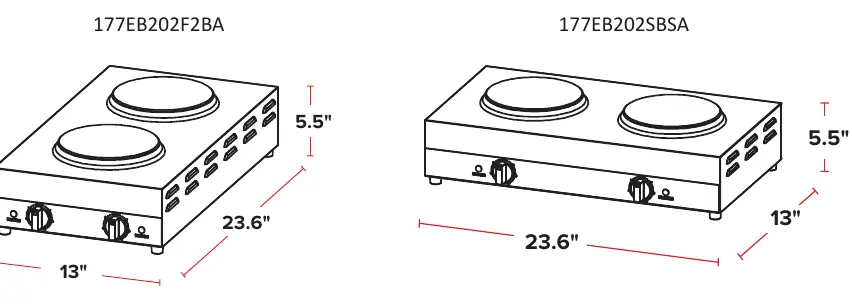

- Specifications p. 4
- Installation p. 4
- Operation p. 5
- Maintenance p. 6
Table of contents
Manual images
Click an image to enlargeImportant Information
This manual provides instructions for the Avantco Electric Portable Hot Plates, specifically models 177EB202SBSM and 177EB202F2BM. These units are designed for commercial use only and must be operated indoors. Always read the safety instructions before use.
Safety Precautions
- Commercial Use Only: This appliance is not for residential use.
- Hot Surfaces: The unit becomes extremely hot during and immediately after use. Do not touch.
- Electrical Safety: Keep cords and plugs away from water. Do not use if the cord or plug is damaged.
- Placement: Place on a flat, level, heat-resistant, and well-ventilated surface. Do not place near hot gas or electric burners.
- Clearance: Maintain at least 18 inches of clearance from sides, front, and rear, and 40 inches above the appliance from combustible materials.
- Supervision: Do not leave the appliance unattended while powered on.
Installation
Installation must be performed by qualified personnel to avoid voiding the warranty.
- Unbox the hotplate and remove the plastic coating from all stainless-steel surfaces.
- Ensure all parts are accounted for.
- Install the adjustable legs into the pre-threaded holes in the base of the unit. The unit must be operated with these legs.
- Place the hot plate in the designated operating location.
- Check the rating label to ensure the electrical supply matches the unit's requirements (240V).
Operating Instructions
- Ensure the Control Knob(s) are in the "OFF" position.
- Plug the unit into a standard 240V AC electrical outlet.
- Place cookware onto the heating element.
- Adjust the Control Knob to the desired heat level (Lo to Hi).
- To turn off, rotate the Control Knob to "OFF" and unplug the unit from the outlet.
Warning: Do not use pots or pans that are wider than the burner. Do not use the unit to hold potentially hazardous foods like raw meats.
Care and Maintenance
- Cooling: Always unplug the unit and allow it to cool completely before cleaning.
- Cleaning: Use a damp cloth or sponge with a mild detergent. Ensure no detergent remains on the heating elements.
- Restrictions: Do not immerse the product in liquid, do not place in a dishwasher, and do not use abrasive cleaners or pads.
- Heating Elements: Do not attempt to remove the heating elements.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Unit fails to operate
Check if the unit is connected to a live power source, verify the circuit breaker, ensure the power switch is on and the pilot light is glowing, and confirm the unit is operating on the correct voltage.
Plug does not fit the outlet
The unit requires a specific 240V outlet. Do not alter the plug or attempt to defeat its safety features; contact a qualified electrician if it does not fit.
Before use
- Remove all plastic coating from stainless-steel surfaces
- Install the adjustable legs into the base
- Clean the equipment thoroughly
- Verify the electrical outlet provides 240V
- Ensure the unit is placed on a flat, non-combustible surface
Images and diagrams

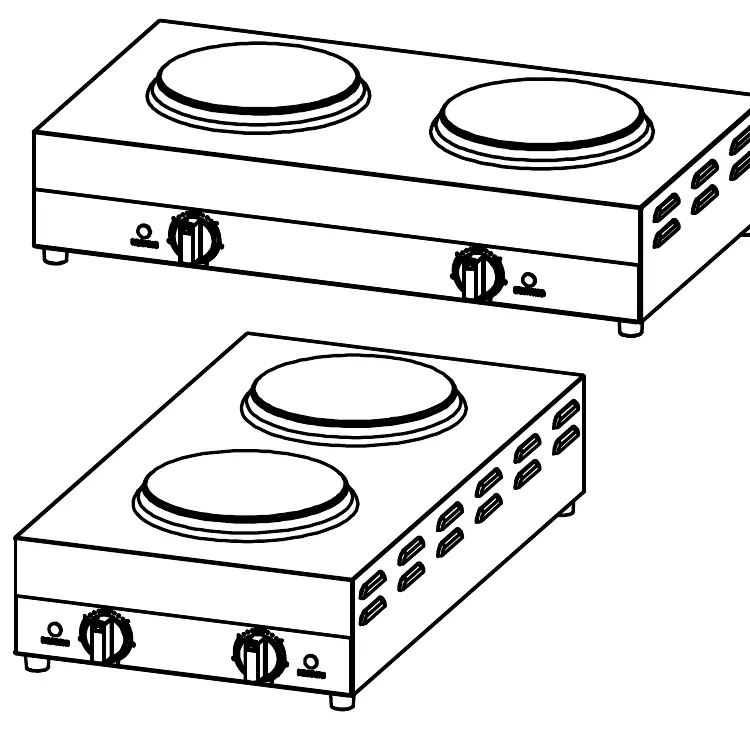

- The unit features two heating elements with individual control knobs.
- Adjustable legs are required for proper airflow and operation.
Model compatibility
- Commercial use only.
- Do not use cookware wider than the burner.
- Must be installed in non-combustible surroundings.
