User Manual for Baseus GaN 2-in-1 Power Bank & Quick Charger 10000mAh 45W
Comprehensive user guide for the Baseus GaN 2-in-1 Power Bank & Quick Charger 10000mAh 45W. Learn how to operate the device, understand charging modes, view technical specifications, and follow safety guidelines.
Quick answers from the manual
Quick answer
- The Baseus GaN 2-in-1 is a hybrid device that functions as both a wall charger and a portable power bank. It features a 10000mAh capacity and supports up to 45W output. p. 1
Key actions
- To use as a power bank, press the power button. p. 1
First start
- Plug the device into a wall outlet to charge it, or press the power button to check the battery level and begin charging connected devices. p. 1
Maintenance and reset
- Charge the device at least once every 3 months if not in use. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 10000mAh | Total battery capacity | p. 1 |
| Max Output | 45W | Maximum power output | p. 1 |
Where to find it in the PDF
- Product Specifications and Operation p. 1
Table of contents
Quick Guide
The Baseus GaN 2-in-1 is a hybrid device that functions as both a wall charger and a portable power bank. It is designed to charge your devices efficiently using GaN technology. To use it as a charger, plug it directly into a wall outlet. To use it as a power bank, press the power button to activate the output.
Product Overview
The package includes the power bank/charger, a Type-C to Type-C charging cable, and a storage bag. The device features a power button, a Type-C output port, a USB output port, and an electric indicator lamp.
Operation
Charging Mode: When plugged into an AC outlet, the device acts as a charger. It can charge your device and the power bank simultaneously. If the power bank is fully charged, the charger will prioritize the connected device.
Power Bank Mode: When not plugged into an AC outlet, press the power button to activate the power bank. The indicator light will show the current power level. If no load is detected, the device will automatically turn off after 30 seconds to conserve energy.
Technical Specifications
- Model: PPNL45UC
- Capacity: 10000mAh
- Rated Capacity: 5800mAh (5V/3A)
- Input: AC 100-240V~, 50/60Hz, 1.5A Max
- Type-C Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A Max
- USB Output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A Max
- Combined Output (Type-C + USB): 30W + 18W
Safety and Maintenance
To ensure the longevity of your device and safety during use, please follow these guidelines:
- Use the original charging cable for optimal performance.
- Do not expose the device to extreme temperatures, moisture, or direct sunlight.
- Do not disassemble, crush, or puncture the device.
- If the device is not used for a long period, charge it at least once every 3 months to maintain battery health.
- The device will automatically enter standby mode if no load is detected.
Manufacturer information
Baseus
Practical help
Common problems
Device turns off automatically
The power bank will automatically turn off after 30 seconds if no load is detected. This is a power-saving feature.
Charging speed is slow
Ensure you are using the correct port for your device's requirements and that you are using a high-quality, compatible cable.
Before use
- Ensure the power bank is charged before first use.
- Check that your device is compatible with the output voltage and current specifications.
- Use the provided Type-C to Type-C cable for best results.
- Verify the power button is pressed to activate power bank mode when not plugged into a wall.

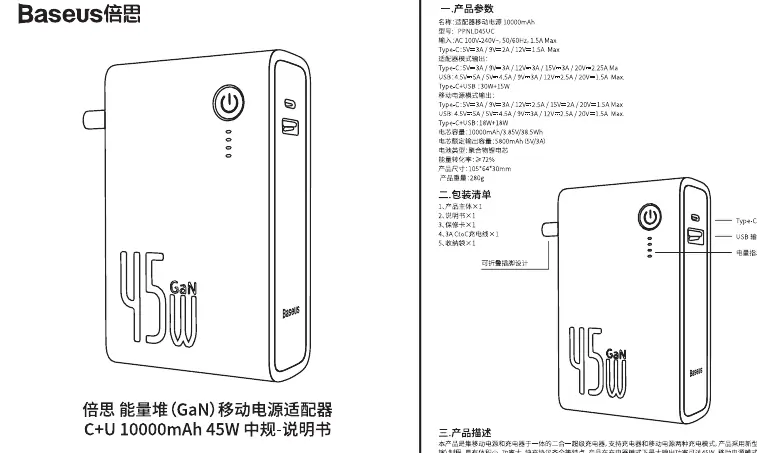

Images and diagrams
- The device features a foldable plug for wall charging.
- The side panel contains the power button and LED indicator.
- The output ports (Type-C and USB) are located on the side of the unit.
Model compatibility
- Supports various devices; check your device's specific input requirements against the charger's output specs.
- Combined output is 30W + 18W when both ports are used simultaneously.
