User Manual for Batavia Fixxpack 12V Cordless Reciprocating Saw

Quick Guide

The Batavia Fixxpack 12V Cordless Reciprocating Saw is designed for general-purpose cutting of wood, metal, and plastics. Before use, ensure the battery is charged and the saw blade is securely fitted. Always wear protective gear, including safety glasses and hearing protection. Ensure the footplate rests firmly on the workpiece during operation to prevent backlash.

Product Overview

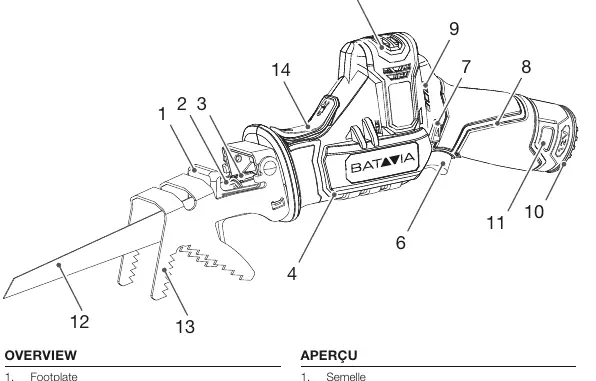

The tool features a quick-fit system for the saw blade. Key components include:

• Footplate: Must rest on the workpiece during sawing.
• Saw Blade Holder & Clamping Ring: Used for quick blade changes.
• Trigger Switch & Lock: Controls the stroke rate.
• Branch Jaw Clamp: Optional guide for cutting branches.
• Motor Vents: Keep clear of debris.

Safety Instructions

Warning: Do not operate in wet environments. Always hold the tool by insulated gripping surfaces when cutting near hidden wiring. Do not saw materials containing asbestos. Always secure the workpiece with clamps and ensure a stable footing. Only switch on the machine when the blade is installed and not touching any objects.

Mounting Accessories

Fitting a Saw Blade

1. Turn the clamping ring (3) as far to the left as possible and hold it.
2. Insert the saw blade into the holder.
3. Release the clamping ring.
4. Check that the blade is securely fixed before use.

Branch Jaw Clamp

The branch jaw clamp assists in guiding the tool when cutting branches. To insert, press the release button (14) and slide the holding bracket over the footplate guides until locked. To remove, press the release button and pull the bracket forward.

Operation

Switching On/Off

To switch on, press the trigger switch lock (7) and the trigger switch (6). The stroke rate is variable; press the trigger further to increase the speed. Release both to switch off.

Sawing Tips

• Adjust blade and stroke rate to the material.
• Use narrow blades for curved cuts.
• Apply coolant or lubricant when sawing metal.
• Check for foreign bodies (nails, screws) before sawing.
• Do not support the workpiece with your hand or foot.

Plunge Cutting

Only for soft materials like wood or gypsum boards. Place the saw on the workpiece, ensure the footplate edge rests on the surface, and slowly saw into the material at an angle before moving to a vertical position.

Flush Sawing

Use elastic bi-metal blades to cut protruding objects (e.g., pipes) near a wall. Bend the blade slightly so the footplate rests against the wall while cutting.

Maintenance and Cleaning

Remove the battery before any maintenance. Keep ventilation openings and the motor housing free of dust. Clean the tool regularly with a damp cloth and mild soap. Do not use solvents. There are no user-serviceable parts inside the tool.

Technical Data

• Speed: 0 – 2700 min-1
• Saw Stroke: 20 mm
• Weight: 1.04 kg
• Sound Pressure Level: 84.3 dB(A)
• Sound Power Level: 95.3 dB(A)
