Owner's Manual for Bauer 2144C-B 20V Lithium-Ion 1/2 Gallon Chemical Fogger
Comprehensive owner's manual for the Bauer 2144C-B 20V Lithium-Ion 1/2 Gallon Chemical Fogger. Includes safety warnings, setup instructions, operation procedures, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bauer 2144C-B is a 20V cordless chemical fogger intended for water-based solutions. Before use, ensure the battery is charged and the unit is inspected for damage. Always wear ANSI-approved safety goggles and gloves. After every use, the unit must be cleaned by flushing the tank with clean water to prevent clogging and damage.
Safety instructions
Battery Safety: Keep the battery pack dry. Do not open, drop, short-circuit, puncture, incinerate, or expose to temperatures above 140°F. Inspect the battery before every use.
General Safety: Use only for water or water-based fertilizers, herbicides, pesticides, and sealers. Do not use for combustible or corrosive chemicals. Do not use in the rain or in wet locations. Keep children and visitors away from the work area.
Setup
Charging: Charge the battery pack according to the charger's instructions before first use.

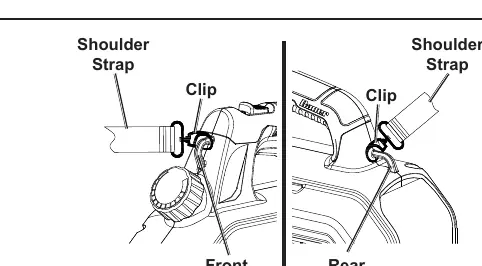

Shoulder Strap: Attach the clips on both ends of the shoulder strap to the front and rear of the fogger. Adjust the length using the buckle and position the cushion for comfort.
Operation
Filling the Tank: Remove the battery pack before filling. Remove the cap and place a funnel in the neck of the tank. Fill with the desired chemical/water solution. Do not overfill beyond the max fill line. Replace the cap securely and reinstall the battery.

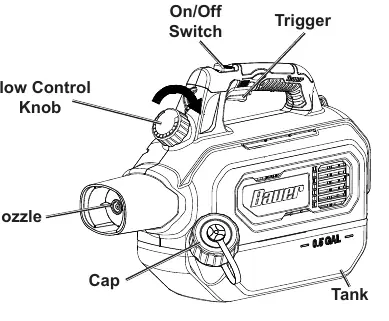

Fogging: Slide the On/Off switch to ON. Point the nozzle at the target area and depress the trigger. Hold the fogger level; tilting may cause liquid to spurt instead of fog. Use the flow control knob to adjust the output. Always point the fogger downwind.
Maintenance and cleaning

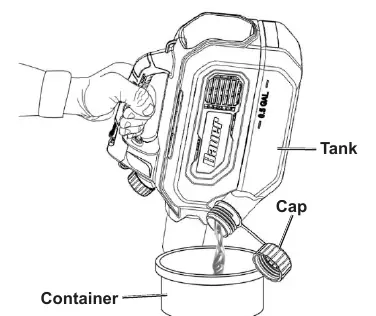

After Every Use: Drain the tank contents into a suitable container. Fill the tank one-third full with clean water, install the battery, and run the fogger until the tank is empty. Repeat if necessary. Allow the tool to air-dry with the tank open before storing.
Troubleshooting
If the tool will not start, check the battery connection and charge. If the spray is weak, clean the filter or check if the solution is too thick. If the tool spurts liquid, ensure you are holding the fogger level.
Technical specifications
- Battery Type: Bauer 20V Li-Ion
- Tank Capacity: 1/2 Gallon (2 Liter)
Practical help
Common problems
Tool will not start
Check battery connection, ensure it is charged, or replace the battery pack.
Spray is weak
Clean the filter or ensure the chemical/water solution is as thin as water.
Tool spurts or streams liquid
Hold the fogger level; do not tilt or hold at an angle.
Overheating
Clear blocked motor housing vents using compressed air while wearing safety gear.
Before use
- Charge the battery pack.
- Inspect the tool for loose hardware or damaged parts.
- Ensure the battery is removed before filling the tank.
- Verify the chemical solution is thin (like water).
- Wear ANSI-approved safety goggles and heavy-duty gloves.
Show more Show less
Specs in practice
- Tank Capacity
- 1/2 Gallon (2 Liter) maximum volume.
- Battery Type
- Requires Bauer 20V Li-Ion battery.
Images and diagrams

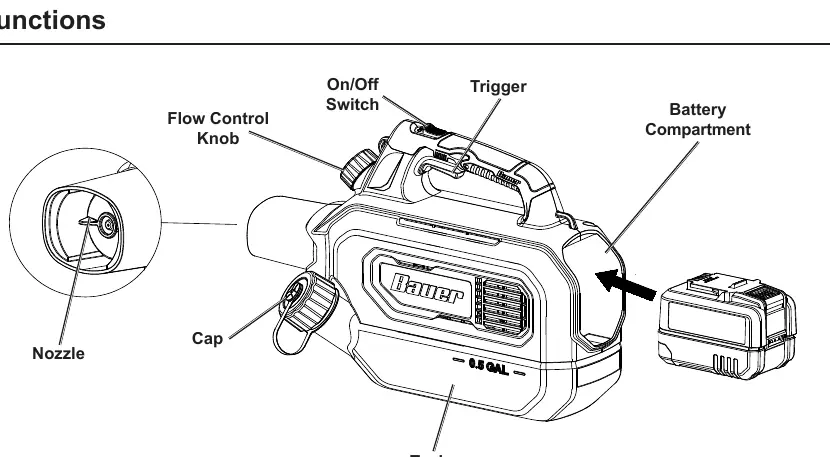

- The Functions diagram identifies the On/Off switch, trigger, flow control knob, and battery compartment.

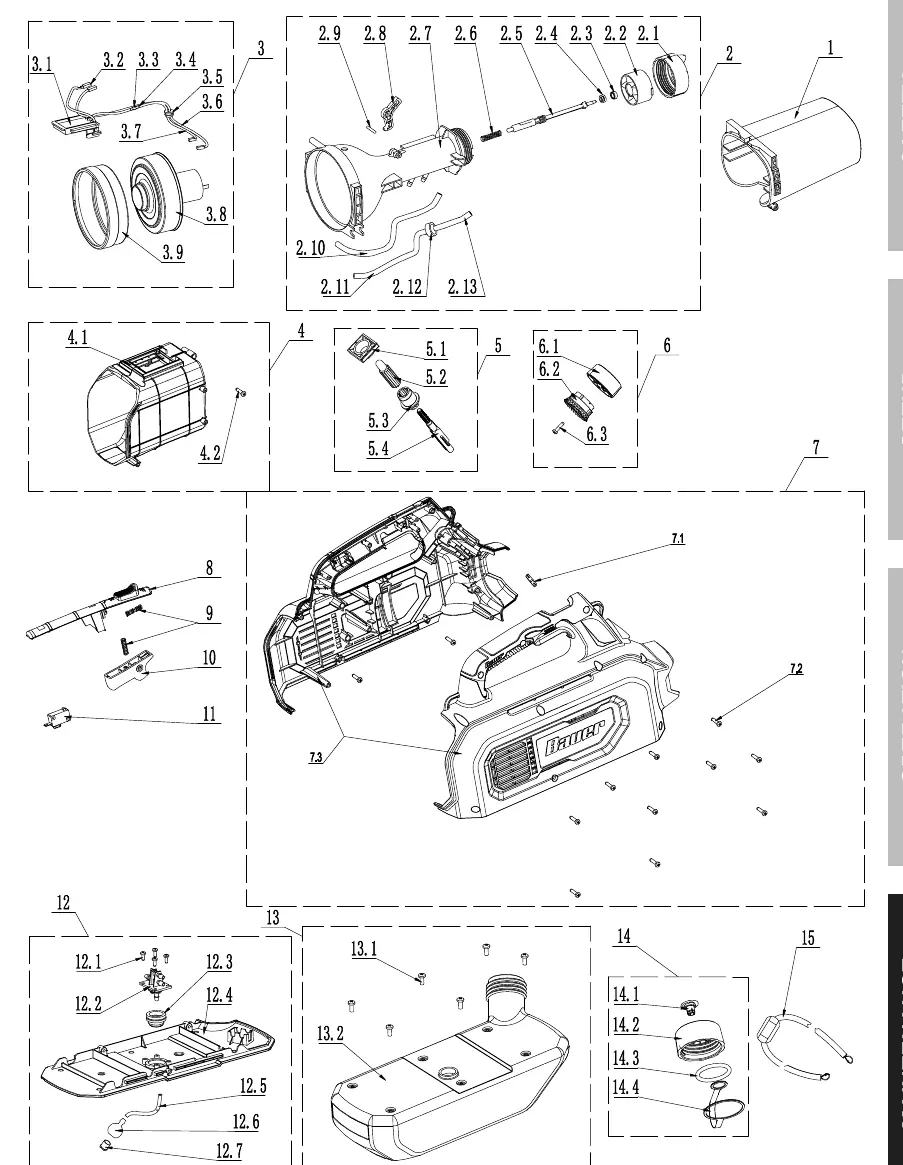

- The Assembly Diagram provides a breakdown of all internal and external parts for reference.
Model compatibility
- Use only for water or water-based fertilizers, herbicides, pesticides, and sealers.
- Do not use to spray combustible or corrosive chemicals.
