Installation and Operation Guide for Bed Bath and Beyond 205-TJB Power Lift Recliner
Complete installation and operation guide for the Bed Bath and Beyond 205-TJB Power Lift Recliner. Includes assembly steps, remote control instructions, and maintenance tips.
Quick answers from the manual
Quick answer
- The 205-TJB is a power lift recliner. Assembly requires attaching the armrests and backrest to the base, followed by connecting the power, massage, and lift control cables. p. 2, 3, 4
Key actions
- Assemble the chair by attaching armrests and backrest to the base. p. 2
- Connect power, massage, and lift control cables. p. 3
First start
- Connect the power cord (D), massage control (E), and lift control (F) to the ports on the back of the chair. p. 3
Maintenance and reset
- Vacuum weekly, use distilled water for stains, and keep away from direct sunlight. p. 7
Where to find it in the PDF
- Assembly p. 2, 3, 4
- Operation p. 5, 6
- Maintenance p. 7
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Bed Bath and Beyond 205-TJB is a power lift recliner. Before using, ensure the chair is placed on a level surface and all cable connections are secure. The chair features a remote control for reclining, lifting, massage, and heat functions.
Assembly Instructions
Follow these steps to assemble your recliner:
- Step 1: Attach the armrests (C) to the chair base (A). Ensure they are properly aligned.
- Step 2: Attach the backrest (B) to the chair base (A).
- Step 3: Connect the power cord (D), massage control (E), and lift control (F) to the corresponding ports on the back of the chair.
- Step 4: Secure the hardware (G) as indicated in the diagram to finalize the assembly.
Remote Control Operation
The remote control allows you to customize your comfort:
- POWER: Turns the remote control on or off.
- HEAT: Activates or deactivates the heat function for the lumbar area.
- INTENSITY: Adjusts the massage intensity from low to high.
- MODE: Selects the massage pattern (pulse, press, wave, auto, normal).
- Massage Zones: You can select specific areas to massage: Back, Lumbar, Thighs, and Legs.
- TIMER: Sets the massage duration to 15, 30, or 60 minutes.
Reclining and Standing
Use the remote control to operate the lift and recline functions. Ensure the area around the chair is clear of obstacles before operating the reclining mechanism. Do not sit on the armrests or the footrest.
Maintenance and Care
- Cleaning: Vacuum the recliner at least once a week. For stains, use distilled water and a clean cloth, blotting from the outside of the stain toward the center. Avoid harsh solvents.
- Placement: Keep the chair at least 30cm away from direct sunlight to prevent fabric fading.
- Safety: Always power off the chair when cleaning. Do not allow children to play with the remote or the reclining mechanism.
Practical help
Common problems
Recliner functions not working
Check all cable connections (Power, Massage, Lift controls) at the back of the chair to ensure they are securely plugged in.
Stains on fabric
Use distilled water and a clean cloth. Blot gently from the outside of the stain toward the center. Avoid using solvents directly on the stain.
Before use
- Ensure the chair is placed on a level surface.
- Verify all cable connections are secure.
- Ensure the area around the chair is clear of obstacles.
- Do not sit on the armrests or footrest.
- Keep the chair away from direct sunlight.
Images and diagrams

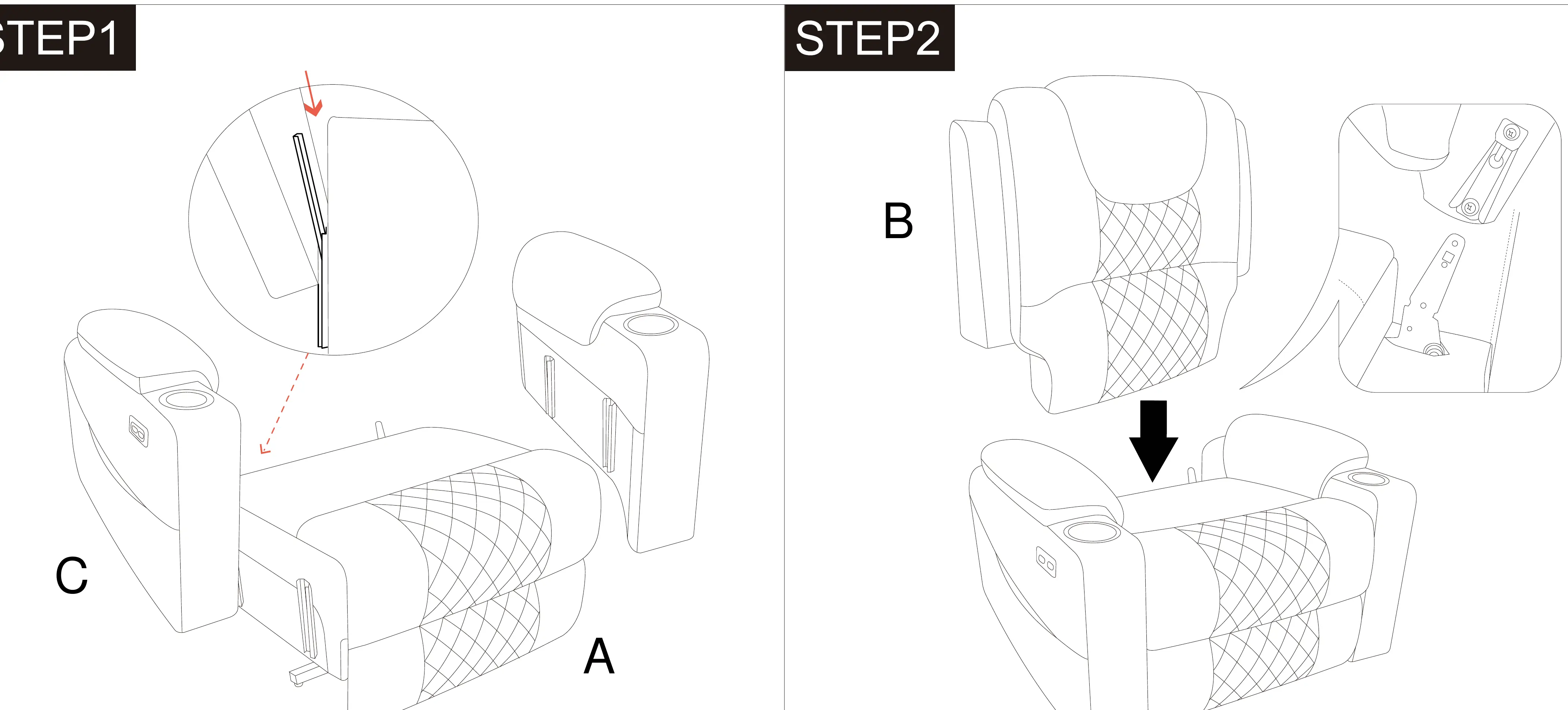

- Step 1 & 2: Shows the attachment of armrests and backrest to the base.

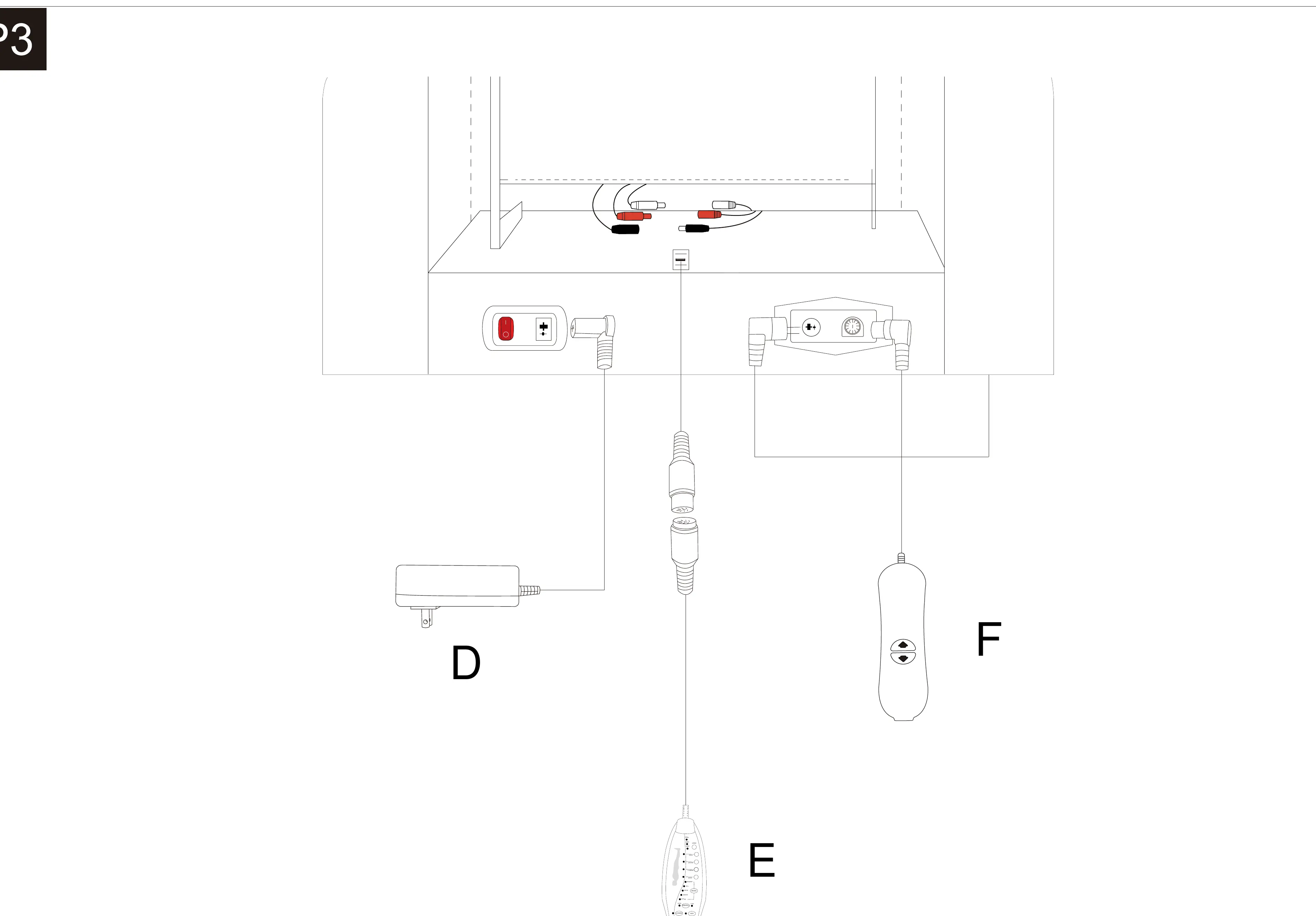

- Step 3: Illustrates the connection of the power cord, massage control, and lift control cables.

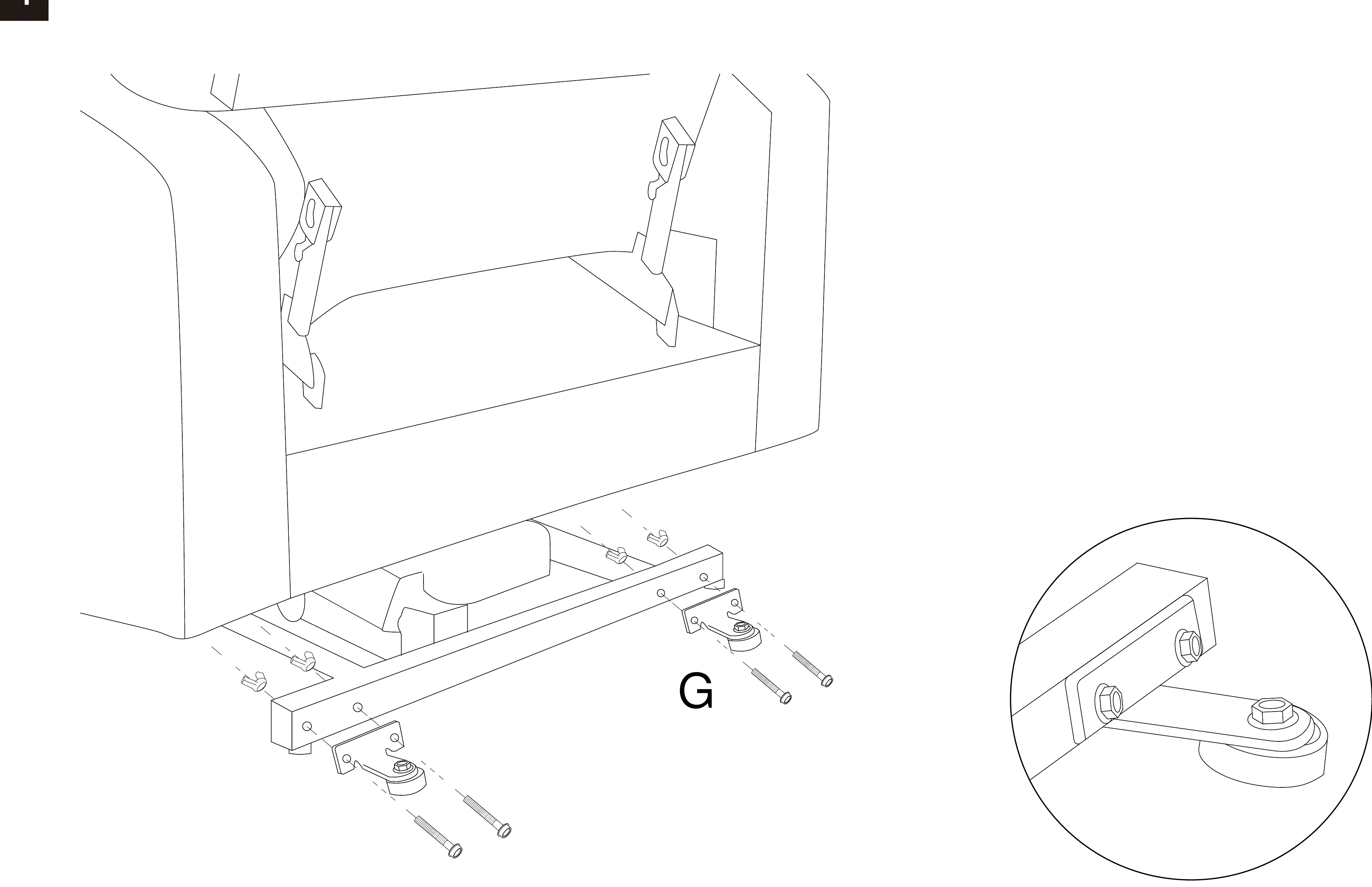

- Step 4: Details the installation of hardware G.
- Remote Operation: Explains the function of each button on the remote control.
Model compatibility
- Indoor use only.
- Keep away from direct sunlight to prevent fabric damage.
