Installation Guide for BELL Lighting Deco Slim LED Bulkhead
Quick installation guide for the BELL Lighting Deco Slim LED Bulkhead. Includes wiring diagrams, colour temperature settings, and essential safety precautions for proper setup.
Quick answers from the manual
Quick answer
- The BELL Lighting Deco Slim LED Bulkhead must be installed by a qualified electrician. It features adjustable colour temperatures (3000K, 4000K, 6000K) and specific wiring configurations for Standard and Emergency models. p. 1
Key actions
- Install the bracket p. 1
- Configure colour temperature p. 1
Problems and fixes
Emergency mode not working
Ensure switch '3' is turned on for Emergency mode.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Ambient Temperature | < 40°C | Maximum operating temperature | p. 1 |
Where to find it in the PDF
- Installation and Wiring Guide p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the BELL Lighting Deco Slim LED Bulkhead. It is intended for installation by a competent electrician in accordance with IEE wiring regulations BS7671:2008. Ensure the mains supply is switched off before beginning installation.

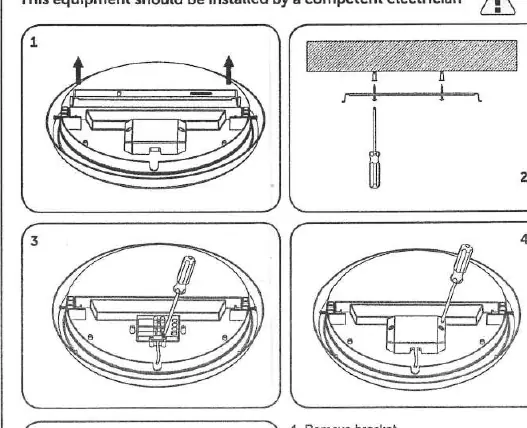

Installation steps
- Remove the bracket from the fitting.
- Fix the bracket to the ceiling using the 2 expansion bolts.
- Connect the cable using the wiring diagram appropriate for your version (Standard or Emergency).
- Replace the terminal cover.
- Secure the fitting to the bracket and switch on.
Wiring diagrams
The manual provides specific wiring diagrams for two versions:
- Standard: Requires connection to Live (L) and Neutral (N).
- Emergency: Requires connection to Switched Live, Neutral, and Permanent Live. Ensure switch '3' is turned on for Emergency mode.

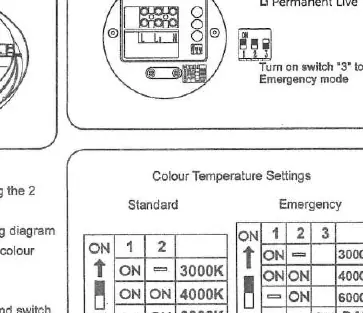

Colour temperature settings
The light output colour temperature can be adjusted using the DIP switches on the unit:
- 3000K: Set switches 1 and 2 to OFF.
- 4000K: Set switch 1 to ON and switch 2 to ON.
- 6000K: Set switch 1 to OFF and switch 2 to ON.
For Emergency versions, refer to the specific DIP switch configuration table provided in the manual.
Safety and maintenance
- The ambient room temperature should not exceed 40°C.
- Ensure there is adequate free air ventilation around the fitting.
- It may be necessary to uprate your MCBs to allow for increased inrush current.
- The light source of this luminaire is not replaceable; when the light source reaches the end of life, the whole luminaire must be replaced.
- Always switch off the mains supply before installing.
Manufacturer information
BELL Lighting
Practical help
Common problems
Light does not turn on
Verify that the mains supply is switched on and that wiring connections match the provided diagram for your specific model (Standard or Emergency).
Emergency mode not functioning
Ensure that switch '3' is turned on for the Emergency mode configuration.
Before use
- Ensure installation is performed by a qualified electrician.
- Verify that the installation complies with IEE wiring regulations BS7671:2008.
- Check that the ambient room temperature will not exceed 40°C.
- Ensure there is adequate free air ventilation around the fitting.
- Switch off the mains supply before starting installation.
Specs in practice
- Colour Temperature
- Adjustable between 3000K (warm), 4000K (cool), and 6000K (daylight) via DIP switches.
- Ambient Temperature
- The maximum operating temperature for the fitting is 40°C.
Images and diagrams
- Wiring diagrams illustrate the correct terminal connections for Standard and Emergency versions.
- Colour Temperature Settings table provides the DIP switch positions required to achieve 3000K, 4000K, or 6000K.
Model compatibility
- Must be installed in accordance with local building control and IEE wiring regulations BS7671:2008.
