Instruction Manual for Belleze 014-HG-43004 Record Player Stand
Quick assembly and maintenance guide for the Belleze 014-HG-43004 Record Player Stand. Includes step-by-step installation instructions, weight limits, and care tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the Belleze 014-HG-43004 Record Player Stand. The estimated assembly time is 70 minutes, and it requires two people for safe construction. Please ensure all parts are present before beginning and assemble on a soft surface like a carpet or rug to prevent damage.
Safety and weight limits
- Maximum load (top panel): 50 lb
- Maximum load (shelves): 30 lb
- Keep small components, plastic bags, and packaging film away from children and pets to avoid choking or suffocation hazards.

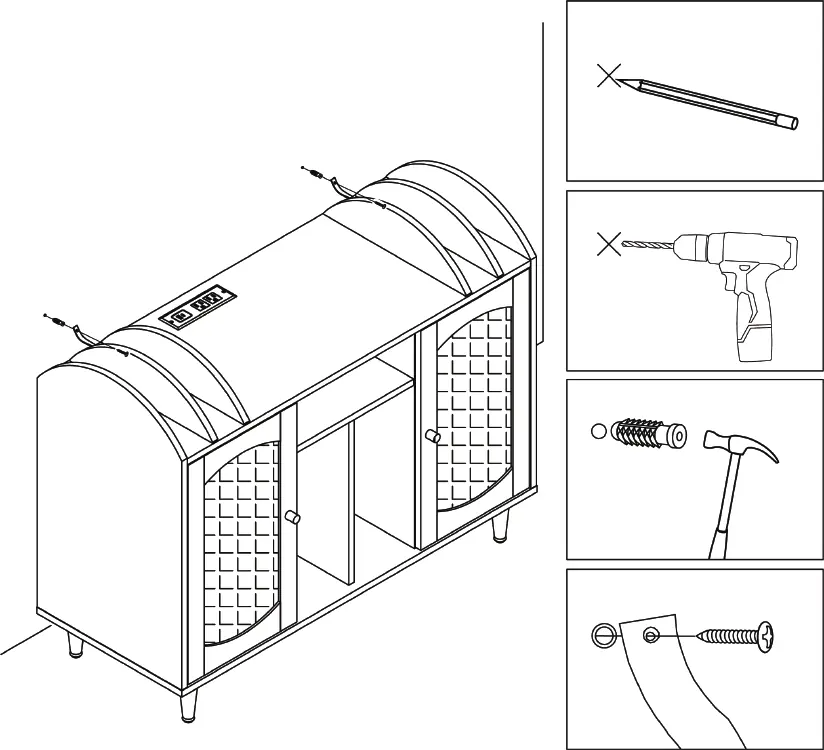

- The furniture must be permanently fixed to a wall stud using the included anti-tipping device to prevent serious or fatal crushing injuries.
Assembly instructions

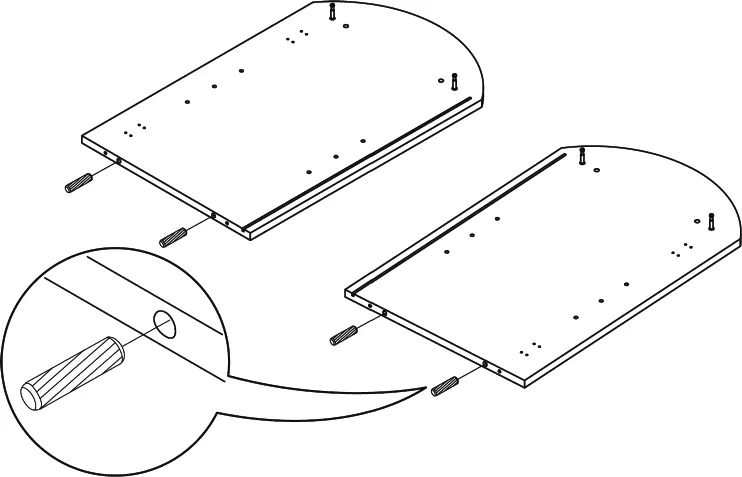

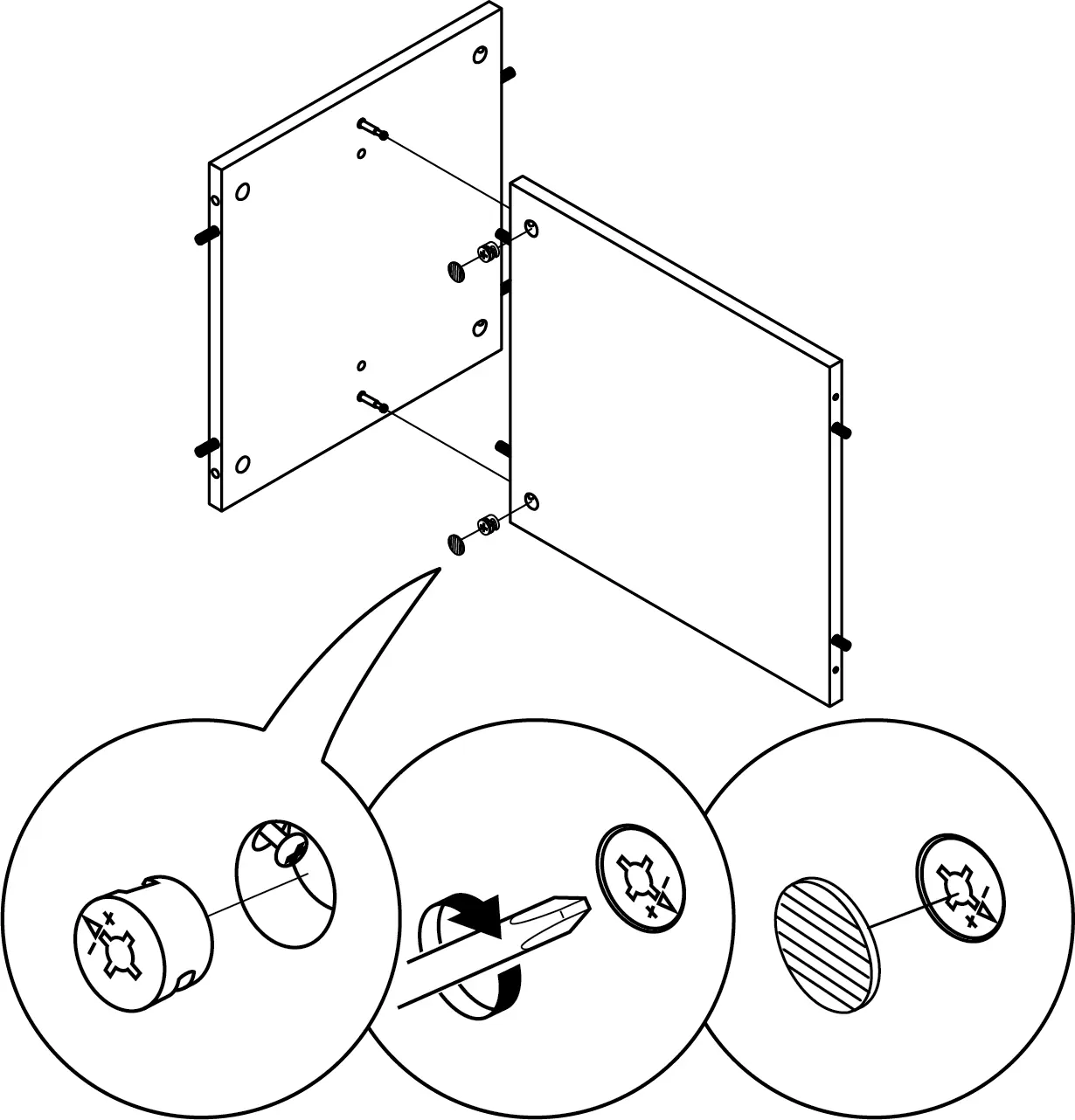

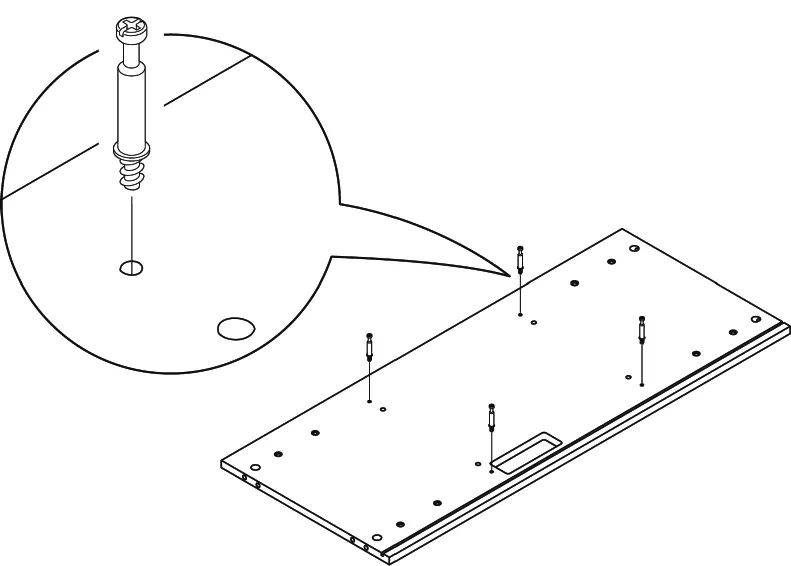

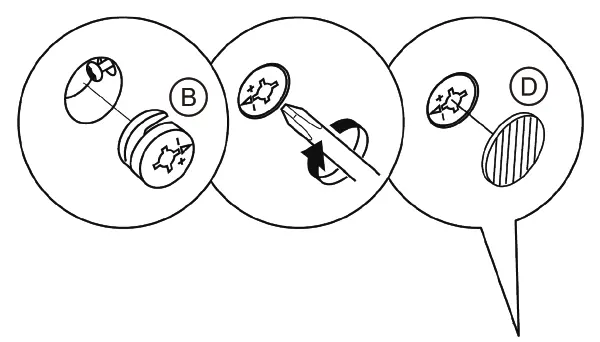

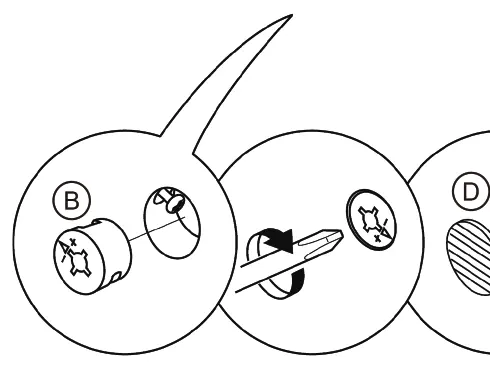

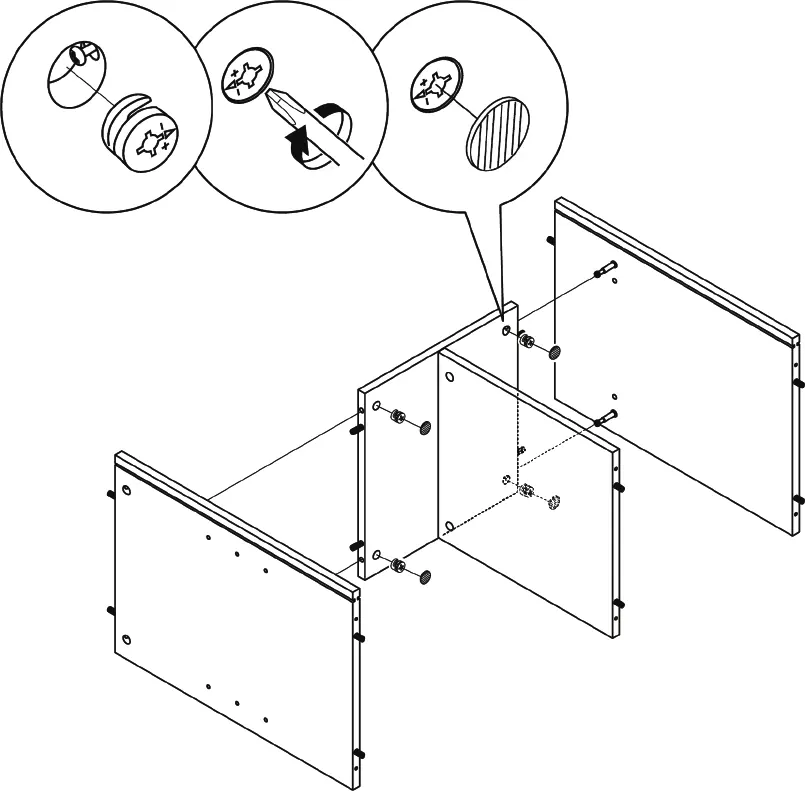

The assembly process involves 22 steps, including attaching cam bolts, inserting wood dowels, and securing panels with cam locks. Ensure all hardware is installed perpendicular to the opening. Hand-tighten all hardware; do not over-tighten to avoid damaging the MDF material.

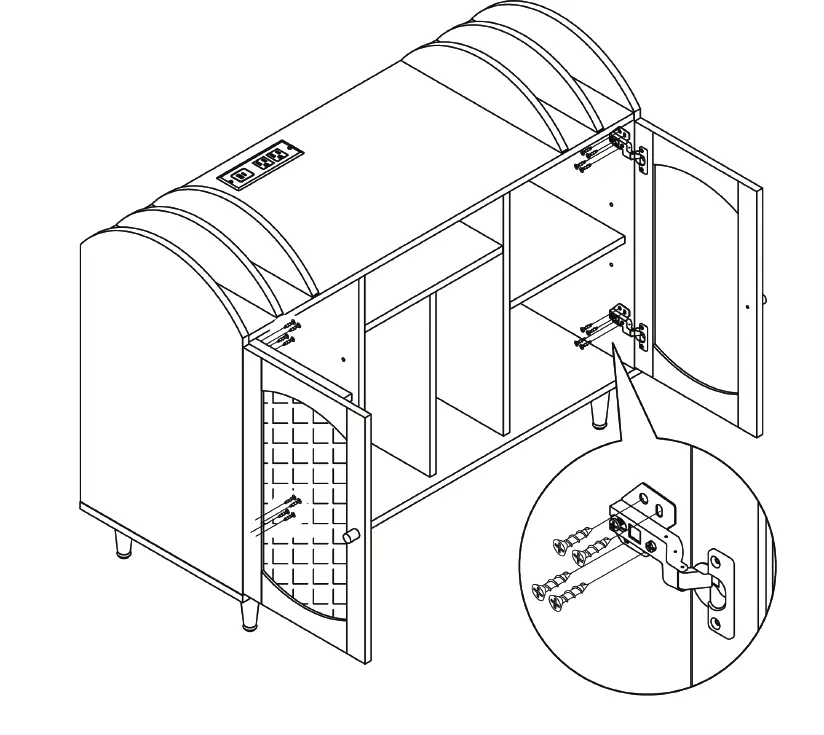

Cabinet door adjustment
If the cabinet doors are misaligned, you can adjust them using the hinges:
- Up and down: Loosen the screws on the mounting plate.
- In and out: Loosen the screws on the hinge arm.
- Side to side: Use the front adjustment screw on the hinge.
Care and maintenance
- Tighten all bolts and screws again within the first 2 weeks of assembly.
- Check the tightness of all bolts every 2 months.
- Clean the MDF surface with a lightly dampened cloth and mild soap if necessary. Dry immediately.
- Do not use bleach or alcohol for cleaning. Do not apply wood treatments to MDF parts.
Manufacturer information
Belleze Furniture
Practical help
Common problems
Cabinet doors are misaligned
Use the hinge adjustment screws to align the doors vertically, horizontally, or in/out.
Missing parts or hardware
Do not use the product until missing parts are restored. Contact support at 1-800-682-6376 or [email protected].
Furniture instability
Ensure the anti-tipping device is installed and the adjustable foot pads are leveled on uneven floors.
Before use
- Verify all components and hardware are present against the package contents list.
- Assemble on a flat, protected surface (carpet or rug).
- Ensure two people are available for assembly.
- Check that all cam locks and screws are tightened correctly.
- Install the anti-tipping device to a wall stud.
Specs in practice
- MDF (Medium-Density Fiberboard)
- The material used for the stand; sensitive to water damage, requires dry cleaning.
Images and diagrams
- The manual uses numbered codes for panels and lettered codes for hardware to guide the assembly sequence.
- Detailed circular callouts show the correct orientation of cam locks and hinge adjustments.
Model compatibility
- Different wall materials require specific types of wall anchors; consult a local hardware store if unsure.
