User Manual for BERG Rally APX Red 3 Gears Go-Kart

Quick guide from the manual

This manual provides essential instructions for the assembly, safe operation, and maintenance of the BERG Rally APX Red 3 Gears go-kart. Key takeaways include:

• Safety: Adult supervision is required. The product is not for use on public roads.
• Assembly: Follow the step-by-step diagrams on pages 4-13.
• Maintenance: Regular checks of the chain, steering, and tire pressure are required.
• Crank Adjustment: Tighten mounting bolts to a maximum of 30Nm after initial use.
• Hub Gears: Tune the gears at least every six months.

Safety Warnings

Read these warnings carefully before use:

• Not suitable for children under three years due to small parts (choking hazard).
• This toy produces flashes that may trigger epilepsy in sensitized individuals.
• Adult assembly is required.
• Do not turn sharply at high speeds to prevent tipping.
• Do not ride in the dark without lights.
• Maximum user weight is 60 kg.
• Do not ride on public roads or steep slopes.

Assembly

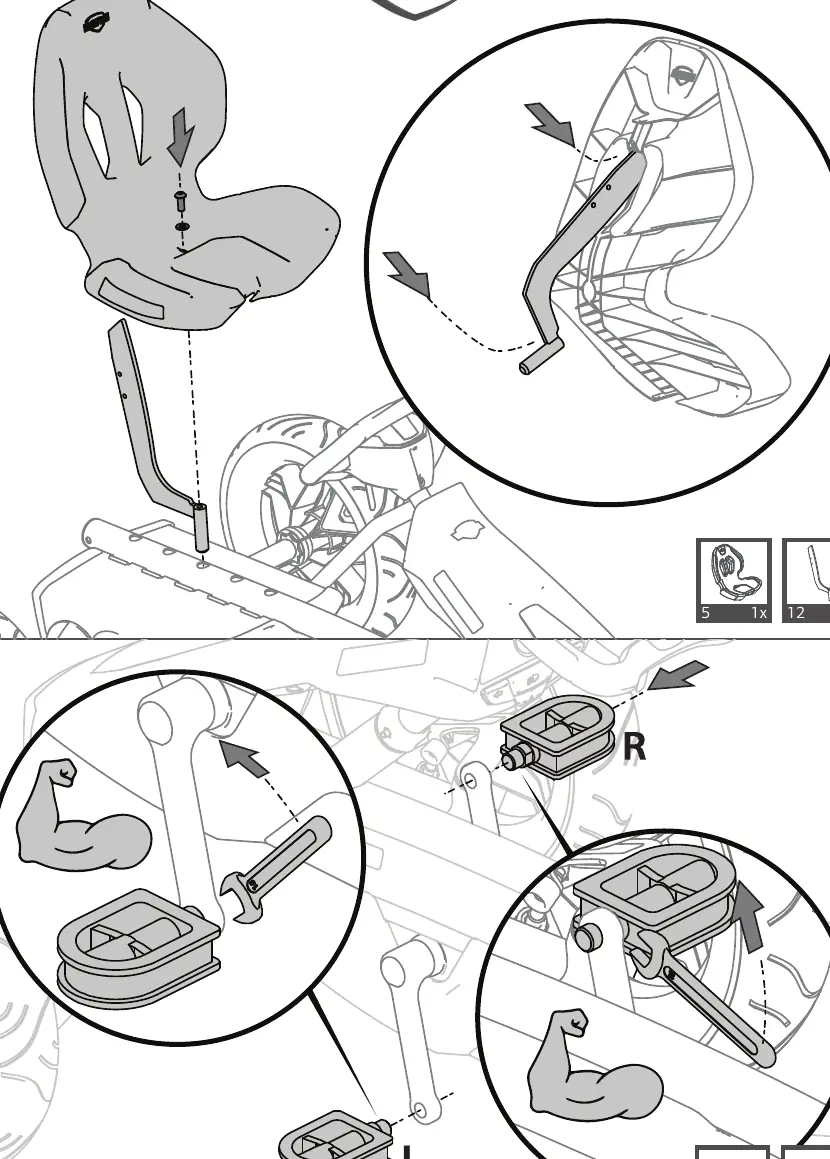

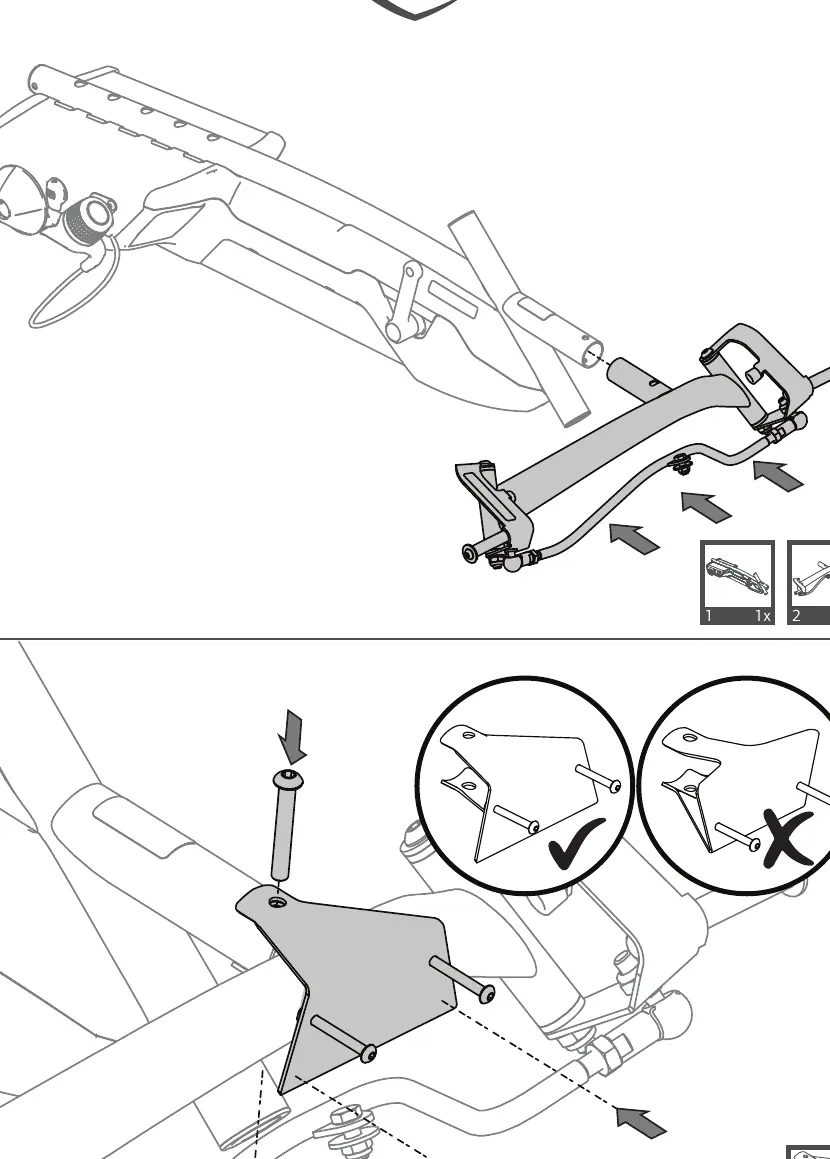

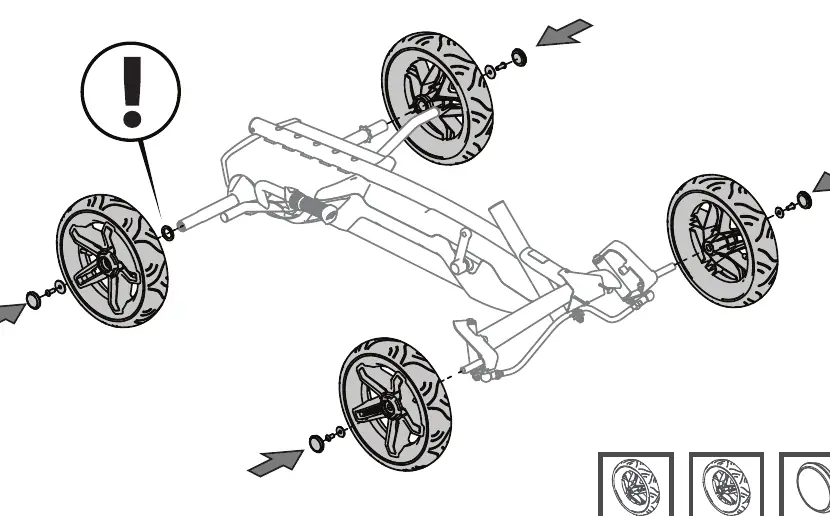

The go-kart requires assembly by an adult. Please refer to the detailed diagrams on pages 4 through 13 of the manual. Ensure all bolts and nuts are securely tightened during the process. Use the provided tools (18, 19, 20) as indicated in the assembly steps.

User Guidelines

Before Use:

• Adjust the seat and steering wheel to the correct position for the user.
• Check that steering, brakes, and tires are functioning correctly.
• Ensure all bolts and nuts are fixed.
• Verify that tire pressure meets the safety norms shown on the tire.

During Use:

• Ride at a suitable speed where you have control.
• Always pay attention to the environment.
• Brake using the handbrake or back pedal brake.
• Do not operate electrical parts while driving.

Maintenance

Regular maintenance is necessary to ensure the longevity and safety of the go-kart.

Maintenance Scheme

• Daily: Check tires for wear and pressure.
• Monthly: Clean and check all nuts and bolts; check frame for cracks; check chain tension and grease; lubricate moving parts.
• Half Yearly: Check functioning of bearings, chain, hub, sprockets, and axles.
• Yearly: Clean plastic parts and check for damage.

Specific Maintenance Activities

• Frame: Clean regularly. If using grease, use only acid-free substances. Treat damaged areas with paint.
• Wheels/Tires: Check rims and tires for cuts, cracks, or bulges. Keep tires free of oil, grease, or fuel.
• Chain Tensioning: The go-kart has two chains. Always tension the rear/short chain first. The rear chain is correctly tensioned if the middle can be pushed 6mm downwards. The front chain should have 1cm of downward play.
• Crank Adjustment: After initial use, tighten the mounting bolts (max 30Nm) to prevent play and damage to the crank axle.
• Hub Gear Tuning: Remove the protective hood, ensure the hub is in 2nd gear, loosen the small nut on the adjustment rod, and rotate the rod to position the grip shift cable correctly.

Warranty

The frame and other parts have a 2-year warranty from the date of purchase. Parts liable to wear and tear (chains, tires) are excluded. Warranty claims require the original purchase receipt and the product serial number found on the frame.
