User Manual for Bestway 65047 Inflatable Boat
Comprehensive user guide for the Bestway 65047 inflatable boat. Includes assembly instructions, inflation guidelines, safety warnings, maintenance, storage, and repair procedures for the 2.8m tender.
Quick answers from the manual
Quick answer
- The Bestway 65047 is a 2.8m inflatable boat. It requires inflation to 3.5 psi (0.24 bar) for the hull and 5 psi (0.35 bar) for the airdeck floor. Always inspect components before use and do not exceed the 480 kg load capacity. p. 3
Key actions
- Inflate the hull to 3.5 psi (0.24 bar) and the airdeck floor to 5 psi (0.35 bar). p. 2, 3
- Clean the boat with mild soap and water; do not use harsh chemicals. p. 3
First start
- Assemble the airdeck floor inside the hull, then inflate the hull and floor to the specified pressures. p. 2, 3
Problems and fixes
Air valve leaking
Use the spanner to tighten the air valve.
p. 3Maintenance and reset
- Deflate by pushing the control stem in and rotating until the valves stay open. Deflate all hull chambers at the same time. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Size | 2.80m x 1.52m x 42cm | Dimensions of the boat. | p. 3 |
| Max Load | 480 kg | Maximum weight capacity. | p. 3 |
Where to find it in the PDF
- Assembly Diagrams p. 2
- Safety and Maintenance p. 3
- Parts and Packing p. 4
Table of contents
Manual images
Click an image to enlargeImportant Information
The Bestway 65047 is a 2.8m inflatable boat designed for recreational use. Before using the boat, ensure you have read all safety instructions. The boat must be inflated to specific pressures: 3.5 psi (0.24 bar) for the hull and 5 psi (0.35 bar) for the airdeck floor. Never exceed the maximum load capacity of 480 kg (3 adults + 1 child) or the maximum motor power of 7.5 kW (10 hp).
Safety Instructions
- Always inspect all boat components, including air-chambers, grab ropes, oars, and air valves, before every use.
- Do not exceed the maximum recommended number of persons or the maximum load capacity.
- Use life-saving devices such as life jackets at all times.
- Be aware of offshore winds and currents.
- Do not drag the boat on rough surfaces to avoid punctures.
- Keep fuel and battery acid away from the boat material as they can cause damage.
Assembly and Inflation
Note: The airdeck floor must be assembled before inflating the hull.
- Lay out the boat and components.
- Assemble the airdeck floor inside the hull.
- Use a Bestway approved inflation pump to inflate the chambers.
- Inflate the hull to 3.5 psi (0.24 bar).
- Inflate the airdeck floor to 5 psi (0.35 bar).
- Assemble the oars and attach them to the oarlocks.
Outboard Motor Installation
With the boat fully inflated and in the water, attach your outboard motor onto the Engine Mount at the center of the Transom. Ensure the motor is always fixed securely on the Transom. Refer to the outboard motor's specific manual for installation and operation details.
Maintenance and Storage
- Cleaning: Clean the boat using mild soap and clean water. Do not use acetone, acid, or alkaline solutions.
- Drying: Dry the boat with a cloth. Do not dry in direct sunlight or with electric blowers.
- Deflation: Open the air valves by pushing the control stem in and rotating until they stay open. Deflate all hull chambers simultaneously to prevent structural damage.
- Storage: Remove oars, disassemble the seat and floor, and fold the boat from front to back to remove remaining air. Store in a dry, shady place out of reach of children.
Repair Instructions
If a puncture occurs, follow these steps:
- Clean the area to be repaired thoroughly.
- Cut a patch of the correct size from the repair material.
- Apply a silicone-based glue (not included) to the repair site.
- Press the patch firmly for 30 seconds.
- Wait at least 1 hour before inflating the boat.
Manufacturer information
Bestway
Practical help
Common problems
Boat leaking air
Check if the air valve is tight using the provided spanner. Inspect the hull for punctures and repair if necessary.
Over-inflation
Never use motor-driven high-pressure pumps. Use only Bestway approved inflation pumps to avoid damage.
Difficulty assembling floor
Ensure the airdeck floor is properly positioned before inflating the main hull chambers.
Before use
- Inspect all air-chambers, grab ropes, oars, and air valves.
- Ensure all passengers have life jackets.
- Verify the boat is not overloaded (max 480 kg).
- Check that the boat is not damaged.
- Ensure the air valve is tightly closed.
Specs in practice
- Working pressure (Hull)
- 3.5 psi (0.24 bar) is the required pressure for the main hull.
- Airdeck floor pressure
- 5 psi (0.35 bar) is the required pressure for the floor.
- Maximum load capacity
- 480 kg (1058.2 lbs) or 3 adults + 1 child.
- Maximum motor power
- 7.5 kW (10 hp) is the limit for outboard motors.
Images and diagrams

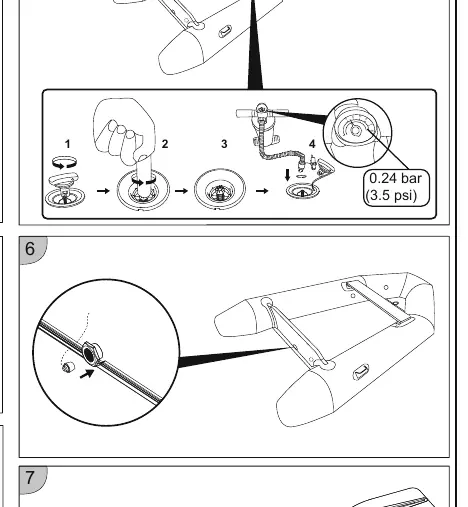

- Steps 1-5: Inflation sequence for the hull and airdeck floor.

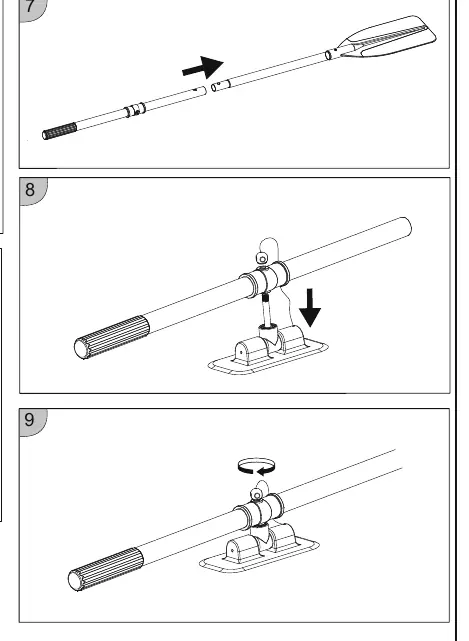

- Steps 6-9: Oar assembly and installation.

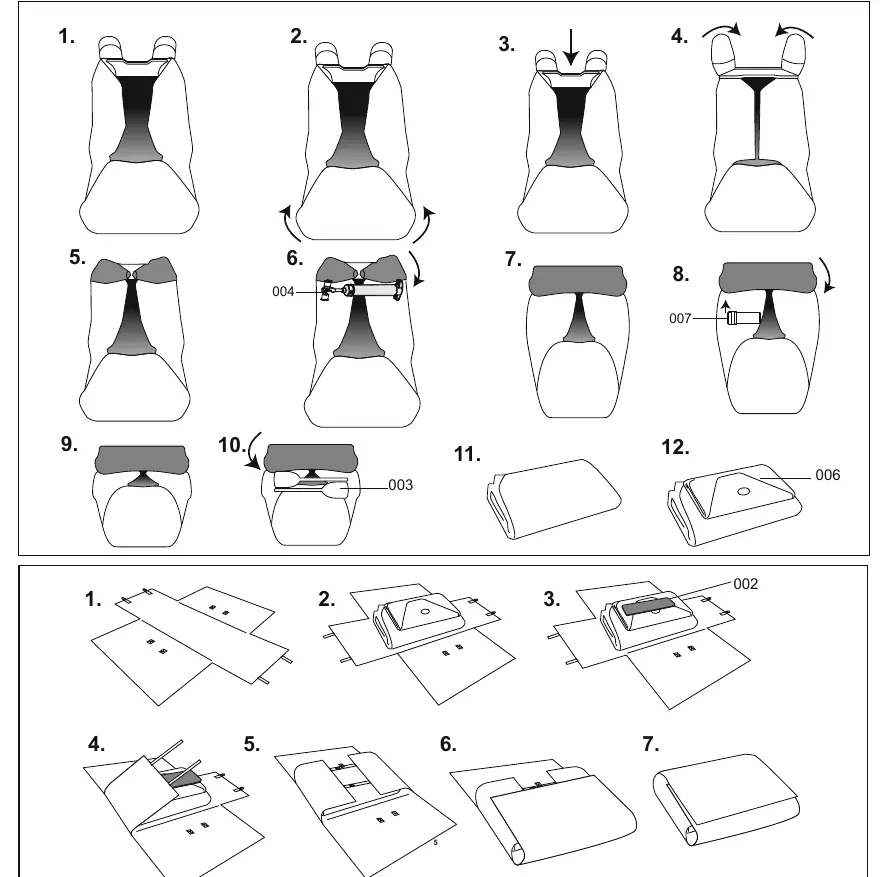

- Folding steps: Sequence for packing the boat after deflation.
Model compatibility
- Use only Bestway approved inflation pumps.
- Do not use acetone, acid, or alkaline solutions for cleaning.
- Glue for repairs is not included; use silicone-based glue.
