Blaupunkt Pure Coaxial 66.2 2-Way Coaxial System Installation Guide
Comprehensive installation guide and technical specifications for the Blaupunkt Pure Coaxial 66.2 2-way car speaker system. Includes safety precautions, mounting dimensions, and performance data.
Quick answers from the manual
Quick answer
- The Blaupunkt Pure Coaxial 66.2 is a 2-way car speaker system. Installation requires disconnecting the vehicle battery, ensuring proper cable management, and verifying mounting dimensions against the provided technical diagram. p. 2, 3
Key actions
- Disconnect the negative battery terminal before installation. p. 2
- Use cable glands for holes with sharp edges. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| RMS power handling | 40 watts | Continuous power rating | p. 2 |
| Peak power handling | 280 watts | Maximum power rating | p. 2 |
| Impedance | 4 ohms | Electrical resistance | p. 2 |
| Frequency response | 60-22000 Hz | Sound reproduction range | p. 2 |
Where to find it in the PDF
- Safety and Technical Data p. 2
- Installation Diagram p. 3
- Contact Information p. 4
Table of contents
Quick guide from the manual
The Blaupunkt Pure Coaxial 66.2 is a 2-way coaxial speaker system designed for automotive audio installation. This document provides essential safety guidelines, mounting dimensions, and technical specifications required for proper installation. Always disconnect the vehicle's negative battery terminal before beginning any installation work to prevent electrical shorts.
Safety Notes
Adhere to the following safety precautions during installation to ensure the longevity of your vehicle's electronic systems and the speaker system:
- Disconnect the negative pole of the battery before starting any work.
- When drilling holes for mounting, verify that you will not damage any underlying vehicle components, wiring, or fuel lines.
- Use cable glands or protective grommets for any holes with sharp edges to prevent cable abrasion.
- Ensure there is ample clearance between the speaker cables and other vehicle harnesses to avoid interference or damage.
- Incorrect installation may result in malfunctions of the vehicle's electronic systems or the sound system itself.
Installation
The installation process requires careful planning of the mounting location. Refer to the provided technical diagram for precise mounting dimensions, including the cut-out diameter and mounting depth. Ensure the mounting surface is stable and capable of supporting the speaker weight without vibration.
Technical Data
The performance specifications for the Pure Coaxial 66.2 are as follows:
- RMS power handling: 40 watts
- Peak power handling: 280 watts
- Impedance: 4 ohms
- Frequency response: 60-22000 Hz
- Sensitivity: 90 dB (2.83V/m)
Warranty and Support
Manufacturer's warranty terms apply to products purchased within the European Union. For devices purchased outside the European Union, please refer to the warranty terms issued by the respective responsible domestic agency. Warranty information can be accessed at www.blaupunktcar.in. For further assistance, contact BPIN Private Limited at 1800 209 6820 or via email at [email protected].
Official resources from the manual
Manufacturer information
Blaupunkt
Practical help
Common problems
Electrical interference or short circuit during installation
Ensure the negative battery terminal is disconnected before starting and maintain ample clearance between speaker cables and other vehicle harnesses.
Damage to vehicle components during drilling
Carefully inspect the area behind the mounting surface for wires, fuel lines, or structural components before drilling.
Cable damage from sharp edges
Always use cable glands or protective grommets when routing wires through metal panels.
Before use
- Disconnect the negative battery terminal.
- Check the mounting area for hidden vehicle components.
- Prepare cable glands for any sharp-edged holes.
- Verify the mounting depth and diameter against the technical diagram.
- Ensure sufficient clearance for cable routing.
Specs in practice
- RMS Power Handling
- The continuous power level the speaker can handle safely (40W).
- Peak Power Handling
- The maximum short-term power the speaker can handle (280W).
- Frequency Response
- The range of sound frequencies the speaker can reproduce (60-22000 Hz).
Images and diagrams

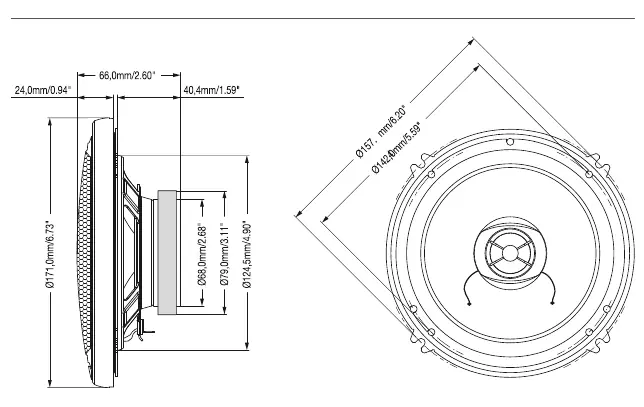

- The installation diagram provides the exact mounting dimensions in millimeters and inches.
- It illustrates the cut-out diameter and the required depth for the speaker assembly.
Model compatibility
- Designed for 4-ohm automotive audio systems.
