User Manual for Bosch GLF 18V-8 Professional Cordless Edge Router
Quick guide for the Bosch GLF 18V-8 Professional cordless edge router. Learn about setup, tool changes, routing depth, speed settings, and maintenance.
Quick answers from the manual
Quick answer
- The Bosch GLF 18V-8 is a cordless edge router intended for routing grooves, edges, profiles, and elongated holes in wood, plastic, and light building materials. p. 8
Key actions
- Adjusting routing depth p. 10
- Changing the router bit p. 9
First start
- Charge the battery, insert it into the tool, install the appropriate router bit, and set the desired routing depth. p. 8, 9, 10
Problems and fixes
Excessive vibration
Ensure the router bit is not blunt or damaged and is correctly fitted in the collet.
p. 7Maintenance and reset
- Keep the tool and ventilation slots clean. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated voltage | 18 V | Operating voltage | p. 8 |
| No-load speed | 10000–30000 min-1 | Rotational speed range | p. 8 |
Where to find it in the PDF
- Safety Instructions p. 6, 7
- Product Features p. 8
- Operation p. 10, 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the Bosch GLF 18V-8 Professional cordless edge router. Before using the tool, ensure the battery is charged and the router bit is correctly installed. Always remove the battery before performing maintenance or changing accessories to prevent accidental startup.

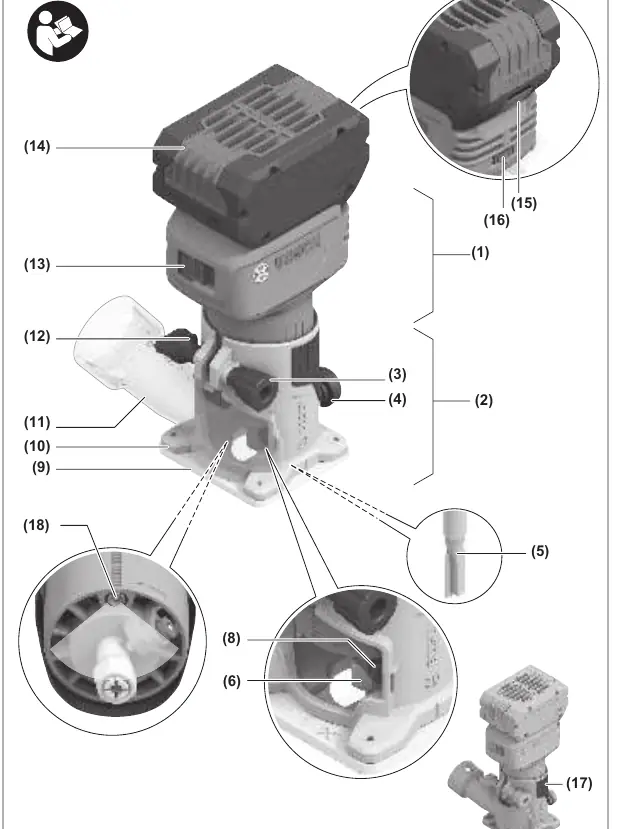

Product Description
The GLF 18V-8 is a cordless edge router designed for routing grooves, edges, profiles, and elongated holes in wood, plastic, and light building materials. It features speed preselection, constant electronic control, and a connection for dust extraction.
Battery Operation
The tool is compatible with Bosch GBA 18V and ProCORE18V batteries. To insert, push the charged battery into the holder until it clicks. To remove, press the battery release button and pull the battery out. The battery charge indicator (if equipped) shows the remaining capacity via green LEDs.
Fitting and Tool Changes
Removing the routing base: Open the wing bolt on the routing base and pull the drive unit out. Changing the collet: Press and hold the spindle lock button, unscrew the cap nut with the open-ended spanner, and replace the collet if necessary. Fitting the router bit: Insert the bit into the collet and tighten the cap nut securely. Never tighten the collet without a router bit installed.
Operation
Setting the routing depth: With the tool switched off, place it on the workpiece. Open the wing bolt on the routing base to adjust the depth using the scale or knurled screw, then close the wing bolt. Preselecting speed: Use the speed preselection thumbwheel to adjust the speed (10,000–30,000 min-1) based on the material and bit diameter. Switching on/off: Set the on/off switch to I to start and 0 to stop.
Working Advice

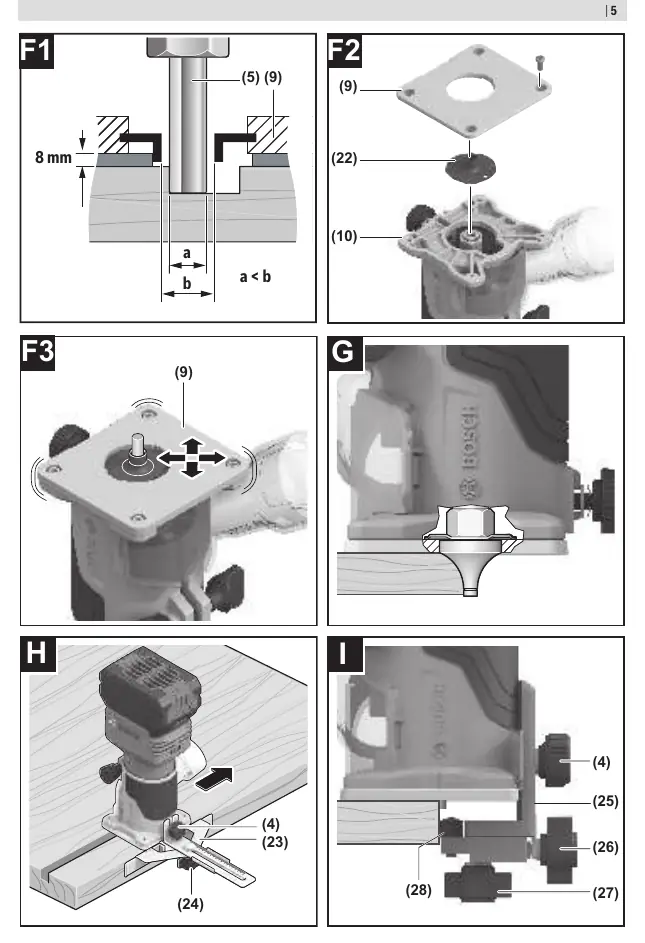

Always route against the direction of the router bit rotation (up cut). When using the guide bushing, ensure the router bit diameter is smaller than the bushing's interior diameter. For parallel cuts, use the parallel guide. For edge routing without a guide, use a bit with a pilot pin or ball bearing.
Maintenance and Cleaning
Always remove the battery before maintenance. Keep the tool and ventilation slots clean to ensure safe and efficient operation.
Manufacturer information
Bosch
Practical help
Common problems
Excessive vibration during operation
Check if the router bit is correctly fitted and the collet is tightened properly. Ensure the bit is not blunt or damaged.
Tool does not start
Ensure the battery is fully charged and correctly inserted. Check if the on/off switch is in the 'I' position.
Before use
- Charge the battery fully.
- Ensure the router bit is sharp, clean, and undamaged.
- Verify the routing base is securely attached to the drive unit.
- Set the desired routing depth while the tool is off.
- Check that the collet is tightened securely with a bit installed.
Specs in practice
- Rated voltage
- 18V DC, indicating the required battery voltage.
- Rated no-load speed
- 10000–30000 min-1, the rotational speed range of the tool without load.
Images and diagrams

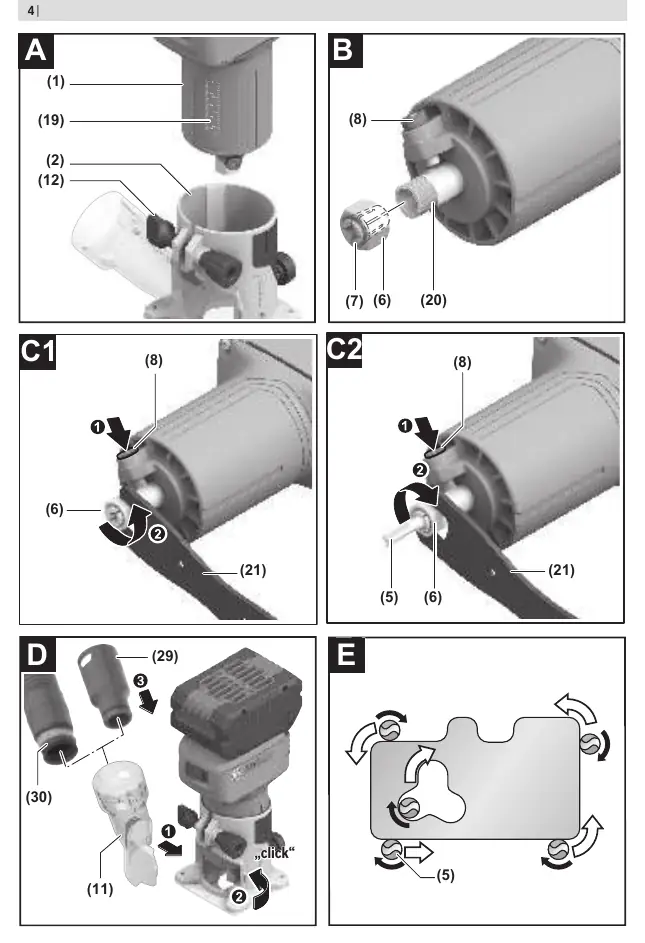

- Figure A: Removing the routing base from the drive unit.
- Figure B: Changing the collet and cap nut.
- Figure C1-C2: Fitting the router bit.
- Figure D: Connecting the dust extraction system.
- Figure E: Correct routing direction (up cut).
Model compatibility
- Compatible with GBA 18V and ProCORE18V battery series.
- Compatible with GAL 18, GAX 18, and GAL 36 battery chargers.
