Operator's Manual for Topmaq 18-08-MCF1000 Woodworking Copy Lathe
Quick guide for the Topmaq 18-08-MCF1000 Woodworking Copy Lathe. Includes safety rules, assembly, operation procedures, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Topmaq 18-08-MCF1000 is a woodworking copy lathe. This manual provides instructions for assembly, operation (including spindle turning, copy system, and bowl turning), maintenance, and troubleshooting. p. 1, 7, 8, 9
Key actions
- Adjusting spindle speed p. 7
- Mounting workpiece for spindle turning p. 7, 8
- Using the copy system p. 8
First start
- Unpack and check parts p. 5, 6
- Ensure proper grounding p. 4, 5
Problems and fixes
Motor or spindle stalls
Reduce depth of cut, adjust/replace belt, or replace bearing.
p. 12
Excessive vibration
Check workpiece, replace bearings/belt, ensure flat surface.
p. 12Maintenance and reset
- General maintenance p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Motor Power | 550W | Power rating | p. 2 |
| Swing over bed | 350 mm | Max workpiece diameter | p. 2 |
| Distance between centers | 1000 mm | Max workpiece length | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Safety Instructions p. 2, 3, 4
- Assembly p. 6, 13
- Operation p. 7, 8, 9, 10
- Troubleshooting p. 12
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe operation and maintenance of the Topmaq 18-08-MCF1000 Woodworking Copy Lathe. Before first use, ensure the machine is properly grounded and that you have read all safety rules. Always wear eye and hearing protection, and never operate the machine while tired or under the influence of substances.
Product Specifications
- Motor Power: 550W
- Swing over bed: 350 mm
- Distance between centers: 1000 mm
- Spindle Speed (3 speed): 750-2600RPM (50Hz) / 890-3050RPM (60Hz)
- Spindle/Tailstock taper: MT2
- Sand disc diameter: 204mm
- Face plate: 152mm
Safety Instructions
General Safety: Keep the work area clean and well-lit. Do not expose the tool to rain or damp locations. Keep children and visitors away from the work area. Always wear appropriate clothing; avoid loose jewelry or clothing that could get caught in moving parts.
Lathe Specific Safety: Only trained personnel should operate this lathe. Always use a face or dust mask. Before turning, check the workpiece for splits, knots, or obstructions. Never apply coolants or water to a spinning workpiece, and never stop a rotating workpiece with your hand.
Assembly
Unpack the machine and verify all parts against the list, including the lathe bed, tool rest, copy frame, tailstock, and various supports. Ensure the power cord remains unplugged during assembly. Do not plug the machine in until all parts are assembled and the machine is fully checked.
Operation
Speed Adjustment: Loosen the pan head screw, open the belt house, and adjust the belt location to change the spindle speed.

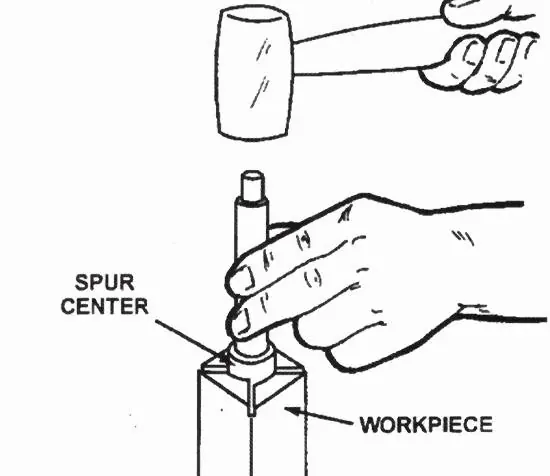

Spindle Turning: Requires a spur center in the headstock and a live center in the tailstock. Mark the center of the workpiece, drive the spur center about 3mm into the wood using a mallet, and mount it between the centers. Secure the tailstock and tighten the quill locking handle, applying only sufficient force.
Copy System: Attach the sample, adjust the tool position using the handwheel, lock it, and use the adjusting handle to make cuts.

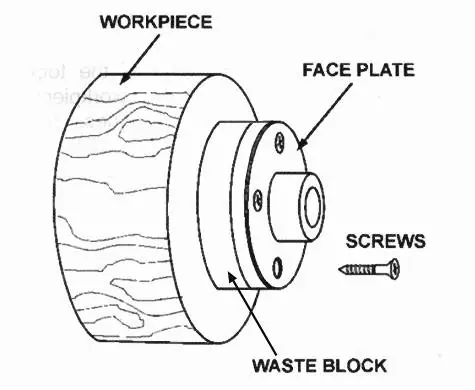

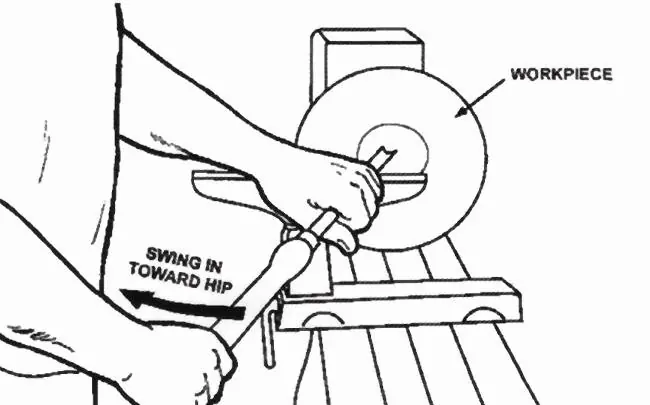

Face Plate and Bowl Turning: Select stock at least 5mm larger than the finished workpiece. Mount the workpiece to the face plate or use a chuck. When shaping the interior of a bowl, move the tailstock away, adjust the tool rest, and use a bowl gouge with the flute facing the top of the bowl.

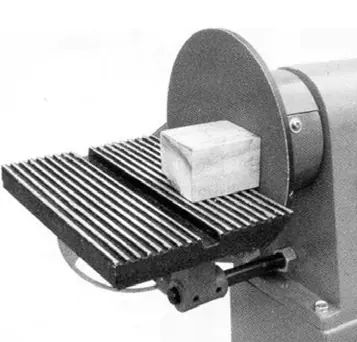

Sanding Disc: Maintain a maximum of 1/16 inch clearance between the table and the sanding disc. Move the workpiece across the downward side of the abrasive disc.
Maintenance
Keep the machine clean; remove sawdust and wood chips daily to prevent rust. Periodically check that all nuts and bolts are tight. The drive belt should be inspected regularly for cracks or wear. Bearings are sealed for life and do not require maintenance. Protect non-painted surfaces with wax to prevent rust.
Troubleshooting
If the motor stalls, reduce the depth of cut or check the belt. If there is excessive vibration, check the workpiece balance or the condition of the bearings and belt. If tools grab or dig in, sharpen the tools or adjust the tool rest height.
Practical help
Common problems
Motor or spindle stalls or will not start
Reduce depth of cut, adjust or replace the belt, or replace worn spindle bearings.
Excessive vibration
Check if the workpiece is warped or improperly prepared, replace worn bearings or belt, or ensure the lathe is on a flat surface.
Tools tend to grab or dig in
Sharpen tools, reposition tool rest height, or move the tool rest closer to the workpiece.
Tailstock moves when applying pressure
Tighten the cam lock nut or clean the mating surfaces of the lathe bed and tailstock.
Before use
- Read and understand all safety rules and operating instructions.
- Ensure the machine is properly grounded.
- Check that all parts are present and undamaged.
- Adjust tool rest to proper height and position.
- Rotate the workpiece by hand to check clearance before turning on the machine.
- Wear eye protection and a face/dust mask.
Specs in practice
- Swing over bed
- 350 mm maximum diameter of the workpiece that can be turned.
- Distance between centers
- 1000 mm maximum length of the workpiece.
- Spindle Speed
- Variable speed range depending on frequency (50Hz or 60Hz).
Images and diagrams
- The assembly diagram shows the layout of the lathe bed, motor, headstock, tailstock, and copy frame components.
- The manual includes specific illustrations for mounting workpieces to the face plate and using the copy system.
Model compatibility
- This machine is for indoor use only.
- Do not use accessories not recommended for this machine.
