This document provides essential operating instructions for the Bosch Professional GSR 1440-LI and 1800-LI cordless drill/drivers. It covers safety, setup, operation, and maintenance.
Device Description
The GSR 1440-LI and 1800-LI are cordless drill/drivers designed for driving and loosening screws, as well as drilling in wood, metal, ceramic, and plastic.
Operation
The tool features a two-speed mechanical gear selector and adjustable torque settings. Always ensure the tool is switched off before placing it on a screw to prevent slipping.
- Removing/Inserting Battery: Use the designated buttons to release and secure the battery pack.
- Mounting Tools: Open the chuck, insert the bit, and tighten securely.
- Direction of Rotation: Use the rotational direction switch to select forward or reverse. Set to the center position for storage or maintenance.
- Torque Selection: Adjust the torque ring to the desired setting for consistent driving.
- Gear Selection: Use the mechanical gear switch to select between low and high speeds. Only operate when the tool is at a complete stop.
Maintenance and Cleaning
Keep the tool and ventilation slots clean to ensure safe and efficient operation. Always remove the battery before performing any maintenance.
Safety Warnings
Always wear personal protective equipment, including eye and ear protection. Keep the work area clean and well-lit. Do not operate in explosive atmospheres. If the tool jams, switch it off immediately to prevent kickback.
Battery Care
The battery is supplied partially charged. Charge fully before first use. The battery features NTC temperature monitoring, allowing charging only between 0°C and 45°C.
Manufacturer information
Bosch
Practical help
Common problems
Tool jams during operation
Switch off the tool immediately. Check for overload or if the tool is wedged in the workpiece.
Gear selector does not move to the stop
Briefly press the On/Off switch to allow the gears to align, then try moving the selector again.
Battery does not charge
Ensure the battery temperature is between 0°C and 45°C. Check the charger instructions.
Before use
- Ensure the battery is fully charged.
- Check that the rotational direction switch is in the desired position.
- Verify the correct bit is securely mounted in the chuck.
- Ensure the gear selector is fully engaged.
- Wear appropriate personal protective equipment (eye/ear protection).
Images and diagrams

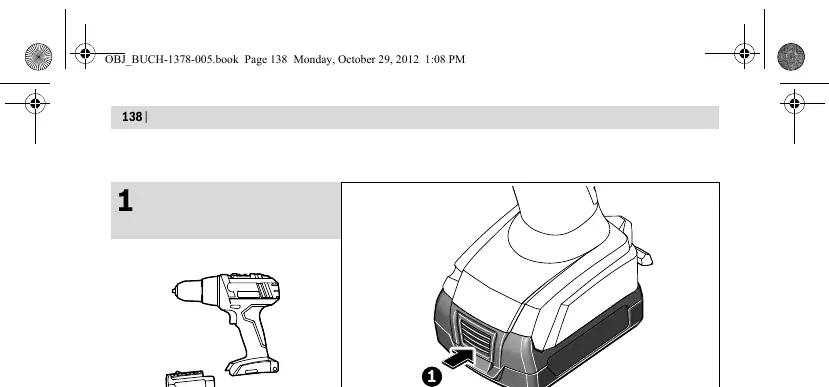

- Page 138: Battery removal and insertion, tool mounting.
- Page 139: Setting rotational direction and torque.

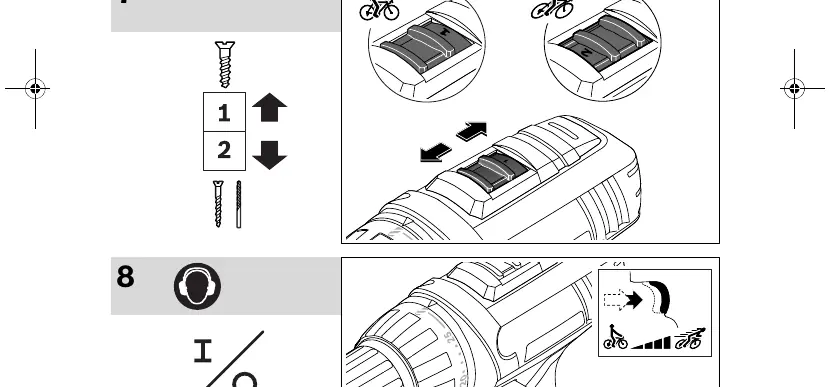

- Page 140: Selecting drilling mode, gear selection, and switching on/off.
Model compatibility
- Use only original Bosch batteries with the voltage specified on the tool's nameplate.
