BougeRV 16A Level 2 EV Charger User Manual
Comprehensive user guide for the BougeRV 16A Level 2 EV Charger. Includes installation safety requirements, LED indicator troubleshooting, technical specifications, and protection features.
Quick answers from the manual
Quick answer
- The BougeRV 16A Level 2 EV Charger is a portable charging device for electric vehicles with an SAE J1772 port. It requires a NEMA 10-30 outlet and a circuit breaker above 20A. It is IP55 rated for the box and IP44 for the plug, suitable for outdoor use, though not in severe weather. p. 1, 7, 12
Key actions
- Reset after protection trigger p. 8, 9, 10
First start
- Installation by a professional p. 5
Problems and fixes
Overload Protection
Restore factory settings or re-plug the power outlet.
p. 8
Leakage Protection
Turn off power and circuit breaker, contact electrician.
p. 8Maintenance and reset
- Manual restart p. 9, 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input/Output | 240V, 16A, 60Hz | Electrical requirements and output capacity. | p. 7 |
| Charging Cord Length | 25 Feet (7.62 meters) | Length of the charging cable. | p. 7 |
Where to find it in the PDF
- Warranty p. 3
- Safety Instructions p. 5
- Specifications p. 7
- LED Indicators p. 8
Table of contents
Quick Guide
The BougeRV 16A Level 2 EV Charger is designed for electric and hybrid vehicles equipped with an SAE J1772 charging port. It requires a NEMA 10-30 outlet and a dedicated circuit breaker rated above 20A. The device features built-in protection against leakage, overcurrent, short circuits, and overheating.
Safety Instructions
- Installation: Must be installed by a licensed and qualified electrician in compliance with the National Electric Code (NEC) and local codes.
- Electrical Requirements: Install a circuit breaker above 20A.
- Environment: Do not use outdoors under severe weather conditions. Operating temperature range is -22°F to +122°F (-30°C to +50°C).
- Handling: Do not touch metal conductors to prevent electric shock. Do not hit the exterior of the product.

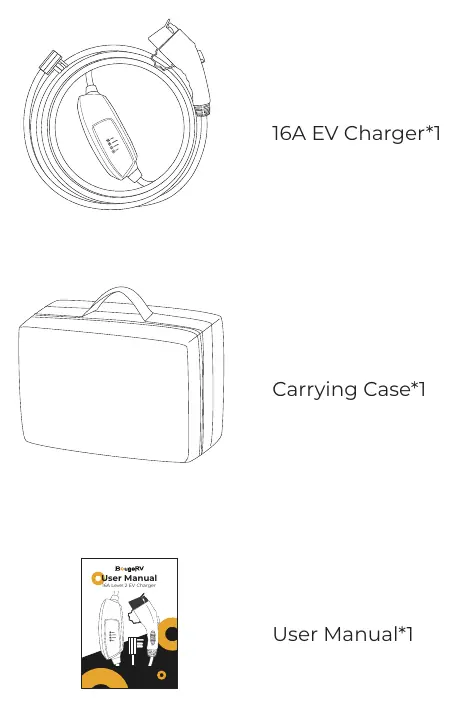

Package Contents
Ensure the following items are included in your package:
- 16A EV Charger
- Carrying Case
- User Manual
Technical Specifications
- Connector Type: SAE J1772
- Plug Type: NEMA 10-30
- Input/Output: 240V, 16A, 60Hz
- Output Power: Up to 3.84kW/h Max
- Waterproof Rating: IP55 (Charging Box), IP44 (Charging Plug)
- Insulation Resistance: >1000MΩ (DC500V)
- Housing Fire Rating: UL94 V-0
LED Indicators and Troubleshooting
The charging box features LED indicators to show the status of the device. If you encounter issues, refer to the following:
- Have Power, No Connection: Reinsert the charge coupler into the vehicle receptacle until it clicks. Check if manual connection is required via the vehicle system.
- Connection, No Charging: Verify the vehicle charge timer is set to permit charging.
- Communication Fault: Try plugging the charger into the car several times.
- Overload/Undervoltage/Abnormal Current: Restore factory settings or re-plug the power outlet.
- Unit Overheating: Unplug the charger, allow it to cool, and have a qualified electrician inspect the wall outlet.
- Leakage Protection: Turn off the power and circuit breaker immediately and contact a professional electrician.
Protection Features
The charger includes several safety mechanisms:
- Leakage Protection: Cuts off power within 100ms if leakage current exceeds 22mA.
- Overload Protection: Recovers after 5 minutes; limits self-recovery to 3 times.
- Short Circuit & Under-Voltage Protection: Automatically recovers after grid voltage stabilizes.
- Overheat Protection: Triggers if the plug or control box exceeds 185°F; recovers when temperature drops below 149°F.
- Lightning Protection: Handles ±2000V surge voltage.
Frequently Asked Questions
Why does it take so long to charge? Charging time depends on battery size, state of charge, vehicle maximum charge rate, charger maximum charge rate (3.84 kW), and environmental factors.
Is it waterproof? Yes, it can be used outdoors, but it is not recommended for use in severe weather conditions.
Does it support scheduled charging? No, this charger does not have delayed or scheduled charging functions.
Manufacturer information
BougeRV
Practical help
Common problems
Have Power, No Connection
Remove the charge coupler from the vehicle and reinsert it until it clicks. Check if the vehicle system requires manual connection.
Connection, No Charging
Verify that the vehicle's charge timer is set to permit charging.
Communication Fault
Try plugging the charger into the car several times. If it still fails, contact customer service.
Unit Overheating
Unplug the charger, allow it to cool, and have a qualified electrician inspect the wall outlet.
Before use
- Ensure the installation is performed by a licensed and qualified electrician.
- Verify the circuit breaker is rated above 20A.
- Confirm the vehicle charging port is SAE J1772 compatible.
- Check that the ambient temperature is between -22°F and +122°F.
- Inspect the charger for any visible damage before use.
Specs in practice
- Connector Type
- SAE J1772 (Standard North American EV charging port).
- Waterproof Rating
- IP55 for the charging box (protected against dust and water jets) and IP44 for the plug (protected against water splashes).
- Output Power
- Up to 3.84kW/h maximum charging rate.
Images and diagrams
- The LED indicator table on page 8 provides a matrix of light states (On, Off, Flicker) to diagnose specific conditions like Overload, Leakage, or Communication Faults.
Model compatibility
- Compatible with electric and hybrid vehicles using the SAE J1772 charging standard.
