User Manual for Caliber RMD 034DAB-BT Car Radio
Quick guide for the Caliber RMD 034DAB-BT car radio. Learn about installation, DAB antenna setup, Bluetooth pairing, and basic operation.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the Caliber RMD 034DAB-BT car radio. The device features DAB+ tuner, Bluetooth connectivity, USB/SD playback, and AUX input. Always ensure the unit is operated safely and do not allow it to distract you while driving.
Installation and Wiring
The unit is designed for 12V negative ground vehicle systems. Use only the provided ISO connectors for installation. If your vehicle does not have an ISO connector, use the provided ISO loom cable to prevent incorrect wiring, which can void the warranty.
- Warning: The negative speaker lead must not be grounded, as this will damage the radio.
- Ensure all wires are stripped before connecting.
- Do not block ventilation openings or radiator panels.
DAB Antenna Installation
For optimal DAB reception, the antenna must be installed correctly:
- Place the antenna on the windshield near the 'A' post.
- Stick the transparent part of the antenna onto the windshield.
- Attach the black (magnetic) part to the metal frame of the car.
- Connect the antenna power supply wire (blue/white) to the remote/antenna wire of the head unit.

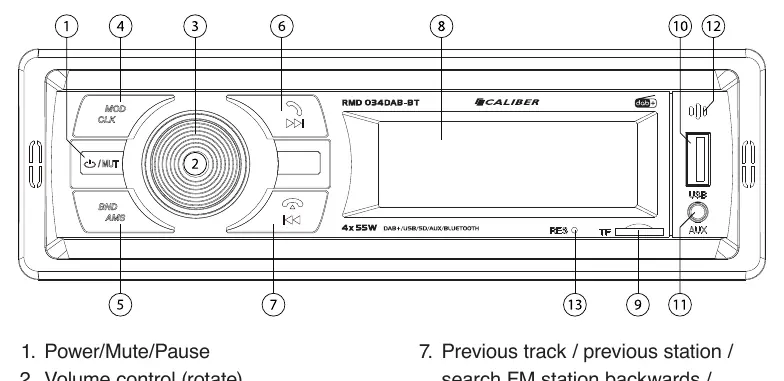

Operation
DAB Settings: Press the [MOD] button to switch to DAB mode. Upon first use, the system will automatically search and store stations. To re-scan, long-press the [BND/AMS] button.
Bluetooth: Press the [MOD/CLK] button to open Bluetooth. Search for 'RMD034DAB-BT' on your mobile phone and pair using the code '0000'. Once connected, 'Linked BT' will appear on the display.
Playback: The unit automatically switches to USB or SD mode when a device is inserted (max 32GB). Use the [MOD] button to cycle through sources.
Reset: If the unit becomes unresponsive, use a non-metallic pointed object to press the reset button for 5 seconds to restore factory settings.
Specifications
- Power Supply: DC 11-15V
- Power Output: 4x 55W (Max)
- Load Impedance: 4 to 8 Ohm
- Bluetooth Frequency: 2402-2480 Mhz
- DAB+ Frequency Range: 174-240 MHz
Manufacturer information
Caliber Europe
Practical help
Common problems
Radio does not turn on
Check the power supply connections and ensure the fuse is intact.
DAB signal is weak or missing
Ensure the DAB antenna is correctly mounted on the windshield and the ground connection is secure on the metal frame.
Bluetooth pairing fails
Ensure the device is searching for 'RMD034DAB-BT' and use the pairing code '0000'.
Settings are lost after turning off the car
Verify that the constant 12V power wire is correctly connected.
Before use
- Verify the vehicle has a 12V negative ground system.
- Ensure an ISO connector or the provided ISO loom cable is used.
- Strip all wires before making connections.
- Mount the DAB antenna on the windshield near the A-post.
- Ensure the temperature in the vehicle is between 0°C and +45°C.
Specs in practice
- Power Supply
- Requires 11-15V DC input.
- Load Impedance
- Compatible with speakers rated between 4 and 8 Ohms.
- USB/SD Capacity
- Supports storage devices up to 32GB.
Images and diagrams

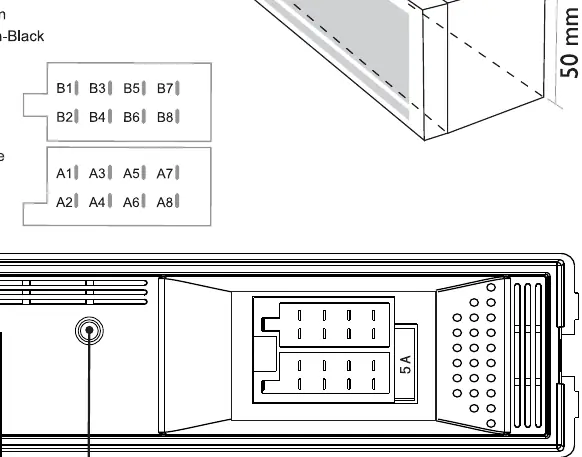

- The ISO connector diagram shows the pinout for power (A4, A5, A8) and speakers (B1-B8).
- The DAB antenna diagram illustrates the correct placement on the windshield near the A-post.
Model compatibility
- Only for use in 12V negative ground vehicles.
- USB port does not support charging.
- Max storage capacity for USB and SD is 32GB.
