User Manual for California Air Tools 10020DSMAD Air Compressor
Quick guide for the California Air Tools 10020DSMAD air compressor. Includes assembly, operation, maintenance, troubleshooting, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The California Air Tools 10020DSMAD is an ultra-quiet, oil-free smart air compressor. This guide provides essential information for setup, operation, and maintenance. Always read the full manual for complete safety instructions.
Safety Instructions
- Electrical Safety: Use only a dedicated 15 Amp circuit. Ensure the unit is properly grounded. Do not use extension cords longer than 25 feet (14 gauge).
- Operating Environment: Operate on a flat surface (incline no greater than 15 degrees). Maintain at least 2 feet of clearance around the unit for airflow.
- Hot Surfaces: Cylinder heads and delivery pipes become hot during operation. Allow to cool before touching.
- Pressure Safety: Never exceed the maximum rated pressure. Drain the air tank daily to prevent rust and potential explosion.
Assembly and Setup
Before first use, install the air filters:

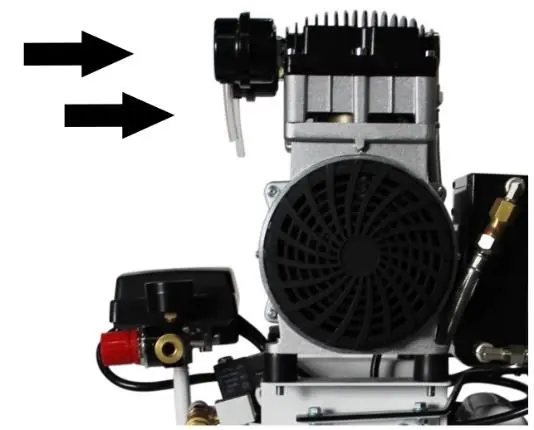

- Attach the two air filters to the top rear left and right side of the motor head's threaded ports.
- Screw the filters clockwise until secure (hand tighten only).
- Push the 4-inch air filter intake tubes into the filter ports.
Operating the Compressor
Test Run:
- Plug into a 110V 60Hz outlet.
- Press and hold the SMART switch OK button for 4 seconds to turn on.
- The motor should start and fill the tank to 120 PSI, then automatically shut off.
Daily Operation:

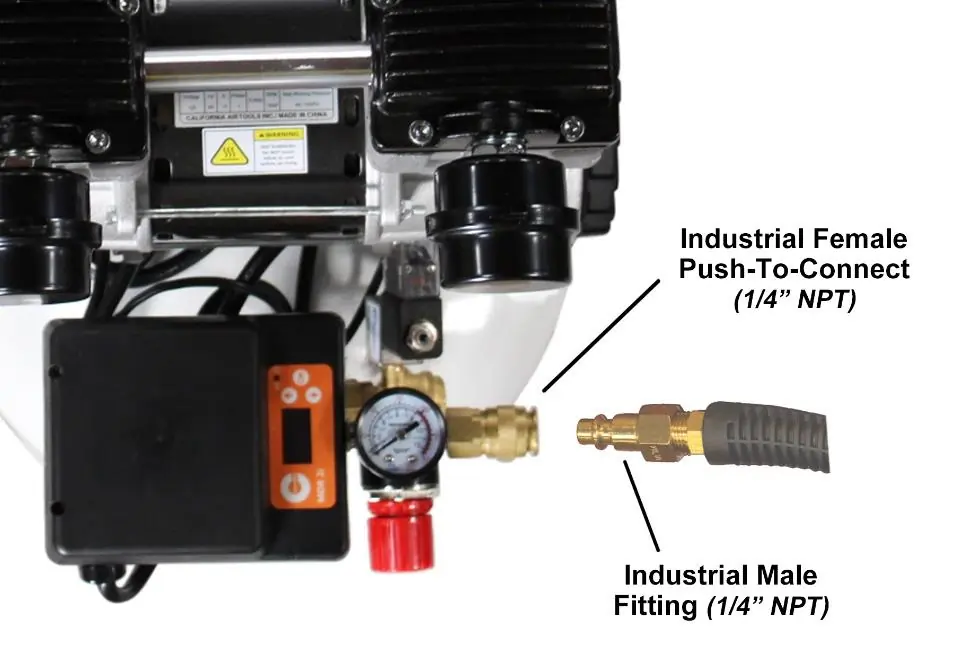

- Connect your air hose to the Industrial Female (1/4" NPT) quick coupler.
- Use the regulator knob to adjust output pressure.
- To shut down, press and hold the SMART switch OK button for 4 seconds, unplug the unit, and release remaining tank pressure.
Maintenance
- Automatic Drain: The EZ-1 Automatic Drain Valve drains the tank when the compressor starts and after 2 minutes of continuous running.
- Air Filter: Regularly clean the filter element by blowing off dirt or brushing it. Replace if clogged.
- Leak Testing: Spray soapy water on connections. If bubbles appear, tighten or replace the leaking part.

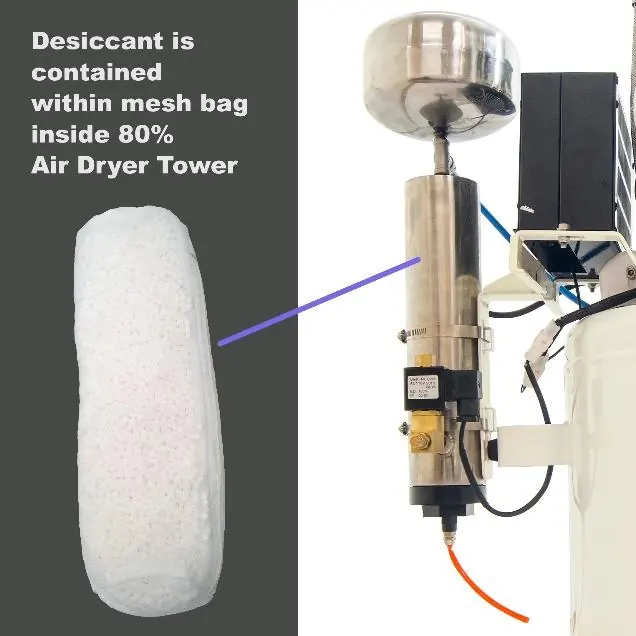

- Desiccant Replacement: Replace the 80% Air Dryer Desiccant every 2000 motor operating hours or every 1-2 years.
Troubleshooting
- Pressure drop: Check for air leaks at connections.
- Compressor won't start: Check for motor overheating (thermal protector) or low voltage supply.
- Noisy operation: May indicate a damaged head gasket or reed valve; contact customer support.
- Motor won't stop: If the unit fails to stop at 120 PSI, the Smart Controller may be defective; stop immediately and contact support.
Practical help
Common problems
Pressure drop in the tank
Check for air leaks at connections using soapy water and tighten if necessary.
Compressor stopped and does not start
Allow the motor to cool down; check for low voltage or an extension cord that is too thin/long.
Motor makes a humming noise but does not start
Check for head pressure or low voltage supply; perform a check valve adjustment.
Compressor does not reach maximum pressure
Check for faulty head gasket or reed valve; contact customer support.
Before use
- Inspect the air tank and all pipes for damage.
- Ensure the compressor is placed on a flat surface (incline < 15 degrees).
- Verify the electrical supply is 110V, 60Hz, 15A.
- Install both air filters and intake tubes.
- Ensure at least 2 feet of obstacle-free space around the unit.
Specs in practice
- Working Pressure
- 90-120 PSI (+/- 5 PSI). Adjustable up to 105 PSI Kick-On and 130 PSI Kick-Off.
- Desiccant Replacement
- Replace every 2000 motor operating hours or approximately every 1-2 years.
Images and diagrams
- The electrical circuit diagram shows the motor, overload protector, and capacitor connections.
- The air passage drawing illustrates the flow from the compressor through the check valve, tank, regulator, and filter.
Model compatibility
- Use only 3-wire extension cords with a 3-blade grounding plug, max 25 feet long, 14 gauge.
- Do not use adapters with this product.
- Use only high-pressure hoses and fittings designed for air compressors.
