User Manual for Canon RF 24-50mm F4.5-6.3 IS STM Lens
A comprehensive user guide for the Canon RF 24-50mm F4.5-6.3 IS STM lens. This manual covers lens attachment, the retraction mechanism, focus and control ring operation, image stabilization, and technical specifications.
Quick answers from the manual
Quick answer
- The Canon RF 24-50mm F4.5-6.3 IS STM is a standard zoom lens for EOS R series cameras. It features a retraction mechanism for storage, a customizable focus/control ring, and built-in image stabilization. p. 1
Key actions
- Extend the lens from the retracted position before shooting. p. 7
- Attach the lens by aligning the mount indexes and turning clockwise. p. 6
First start
- Update camera firmware and extend the lens from the retracted position. p. 1, 7
Show 4 more answers Show less
Problems and fixes
Condensation on lens
Place the lens in an airtight plastic bag before moving between cold and warm environments to allow gradual temperature adjustment.
p. 3Maintenance and reset
- Clean contacts with a soft cloth if soiled. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Focal Length | 24-50mm | Zoom range | p. 15 |
| Filter Diameter | 58mm | Size of compatible filters | p. 15 |
| Weight | Approx. 210g | Lens weight | p. 15 |
Where to find it in the PDF
- Nomenclature p. 5
- Attaching/Detaching p. 6
- Shooting Preparations p. 7
- Specifications p. 15
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the Canon RF 24-50mm F4.5-6.3 IS STM lens. Before use, ensure your camera firmware is updated to the latest version to avoid limitations such as unavailable magnified view functionality. The lens features a retraction mechanism; it must be extended to the shooting position before use.

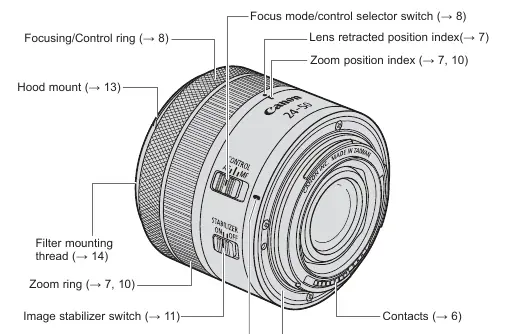

Nomenclature
Key components of the lens include:
- Focusing/Control ring: Used for manual focus or assigned functions (e.g., aperture, shutter speed).
- Zoom ring: Used to adjust focal length.
- Focus mode/control selector switch: Toggles between AF, MF, and Control ring functions.
- Image stabilizer switch: Turns the IS function ON or OFF.
- Lens mount index: Used for aligning the lens with the camera body.

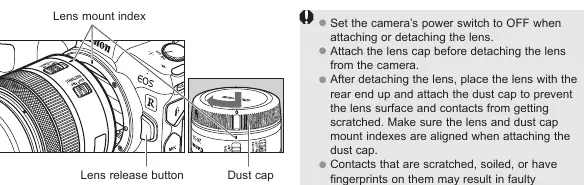

Attaching and Detaching the Lens
Attaching: Align the lens mount index on the lens with the index on the camera body. Turn the lens clockwise until it clicks into place. Ensure the camera power is OFF during this process.
Detaching: Press the camera's lens release button and turn the lens counterclockwise until it stops, then detach.

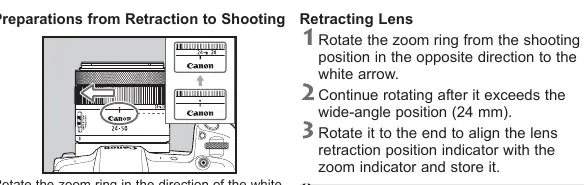

Shooting Preparations
The lens is equipped with a retraction mechanism to shorten its length for storage. Shooting is not possible while the lens is retracted.
- To shoot: Rotate the zoom ring in the direction of the white arrow until you hear a click.
- To store: Rotate the zoom ring in the opposite direction, past the 24mm position, until the retraction position indicator aligns with the zoom indicator.

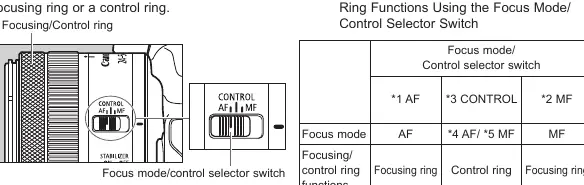

Focusing and Control Ring
The ring's function depends on the Focus mode/control selector switch:
- AF: Sets the ring to act as a focusing ring for autofocus.
- MF: Sets the ring to act as a focusing ring for manual focus.
- CONTROL: Sets the ring to act as a control ring (function assigned via camera menu).
Image Stabilizer
The Image Stabilizer (IS) helps reduce camera shake. Set the switch to ON for hand-held shooting, especially in low light or when using slower shutter speeds. Set to OFF when using a tripod to prevent potential malfunction.
Accessories

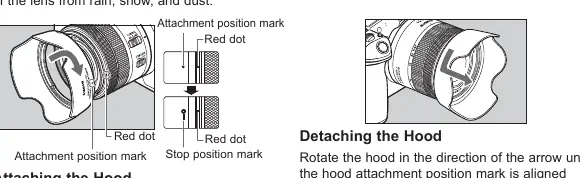

- Hood (EW-63C): Reduces unwanted light and protects the front element. Align the red mark on the hood with the red dot on the lens and turn to lock.
- Filters: The lens accepts 58mm filters. Only one filter should be attached at a time.
Specifications
- Focal Length: 24-50mm
- Aperture: f/4.5-6.3 (Max), f/22-32 (Min)
- Filter Diameter: 58mm
- Weight: Approx. 210g
- Lens Construction: 8 groups, 8 elements
Manufacturer information
Canon Inc.
Practical help
Common problems
Lens does not shoot or camera shows error
Ensure the lens is not in the retracted position. Rotate the zoom ring to the shooting position.
Blurry images
Check if the Image Stabilizer is ON. If using a tripod, turn the Image Stabilizer OFF.
Focusing ring not working as expected
Check the Focus mode/control selector switch. Ensure it is set to the desired mode (AF, MF, or CONTROL).
Before use
- Update camera firmware to the latest version.
- Ensure the lens is extended from the retracted position.
- Align the lens mount index with the camera mount index.
- Check that the lens cap is removed.
- Verify the focus mode switch is set correctly for your shooting needs.
Show more Show less
Specs in practice
- Focal Length
- 24-50mm zoom range for versatile shooting.
- Filter Diameter
- 58mm; use filters of this size.
Images and diagrams
- The nomenclature diagram identifies the location of the zoom ring, focus/control ring, and switches.
- The retraction diagram illustrates how to rotate the zoom ring to extend or retract the lens.
Model compatibility
- Designed for EOS R series cameras.
- Extenders cannot be used with this lens.
- Multiple exposure shooting is not possible on certain cameras (EOS R, RP, Ra, R5, R6).
