Champion 1200W Portable Generator 201285
Quick start guide for the Champion 1200W Portable Generator (model 201285). Includes essential safety warnings, setup procedures, oil and fuel requirements, and step-by-step instructions for starting the generator.
Table of contents
Manual images
Click an image to enlargeQuick start guide
This guide provides the essential steps to set up and start your Champion 1200W Portable Generator (Model 201285). Always refer to the full operator's manual for comprehensive safety information and maintenance procedures.
Safety warnings
DANGER: Using a generator indoors can kill you in minutes. Generator exhaust contains carbon monoxide, a poison you cannot see or smell. Never use the generator inside a home or garage, even if doors and windows are open. Only use the generator outdoors and far away from windows, doors, and vents.
NOTICE: Keep all objects at least 5 feet (1.5 m) from the generator. Heat from the muffler and exhaust gas can ignite combustible materials.

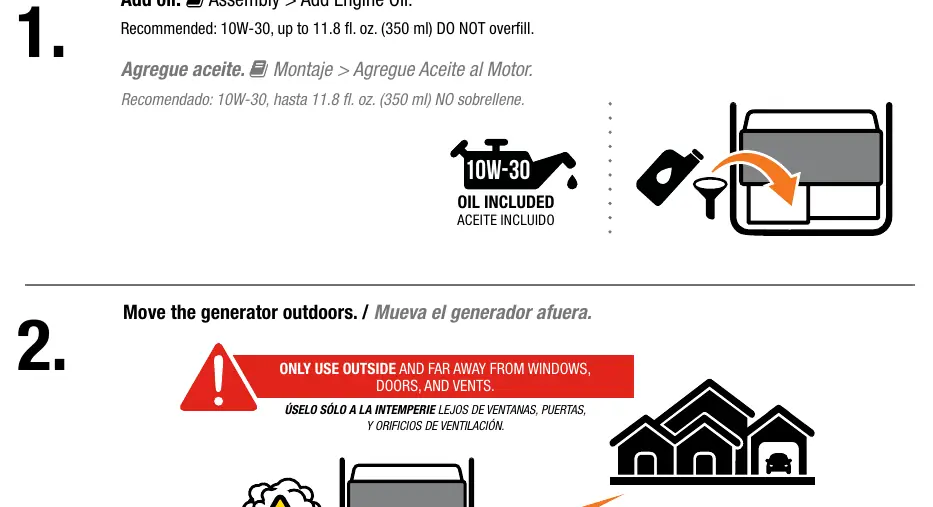

Setup
Before starting the generator, perform the following setup steps:
- Add oil: Use 10W-30 oil. The capacity is up to 11.8 fl. oz. (350 ml). Do not overfill.
- Move outdoors: Ensure the generator is placed in a well-ventilated area, away from structures.
- Add fuel: Add gasoline to the fuel tank. Do not use E15 or E85 fuel.
- Disconnect devices: Ensure no electrical devices are plugged into the generator before starting.

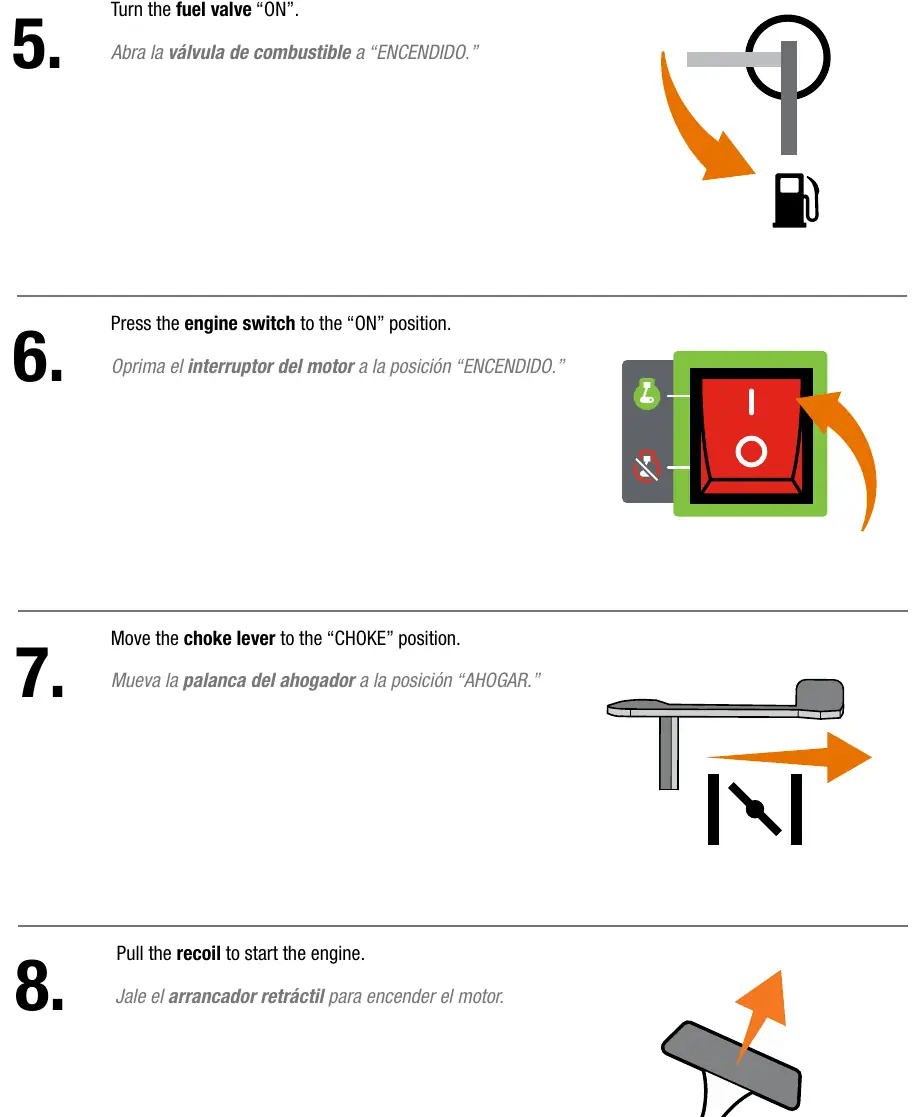

Starting the generator
Follow these steps in order to start the engine:
- Turn the fuel valve to the ON position.
- Press the engine switch to the ON position.
- Move the choke lever to the CHOKE position.
- Pull the recoil starter handle to start the engine.
- Once the engine is running, move the choke lever to the RUN position.
- Connect your electrical devices only after the engine is running smoothly.
WARNING: Never start or stop the generator with electrical devices connected or turned on.
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Generator will not start
Ensure the fuel valve is ON, the engine switch is ON, and the choke lever is in the CHOKE position before pulling the recoil.
Engine runs roughly after starting
Ensure the choke lever has been moved from the CHOKE position to the RUN position.
Before use
- Check oil level (10W-30, max 11.8 fl. oz. / 350 ml)
- Move generator to an outdoor location
- Add fuel (do not use E15 or E85)
- Ensure no electrical devices are plugged in
- Verify 5 feet (1.5 m) clearance from all objects
Specs in practice
- 11.8 fl. oz. (350 ml)
- Maximum engine oil capacity.
Images and diagrams
- Fuel valve: Turn the lever to the icon indicating ON.
- Engine switch: Toggle the switch to the I (ON) position.
- Choke lever: Move to the CHOKE icon to start, then to the RUN icon for operation.
Model compatibility
- Do not use E15 or E85 fuel.
- Only use outdoors, away from windows, doors, and vents.
