Champion Power Equipment 12,000W Electric Start Generator 201160 Parts Manual
This parts manual provides detailed exploded diagrams and component lists for the Champion Power Equipment 12,000W Electric Start Generator (Model 201160). Use this guide to identify replacement parts, understand assembly, and reference...
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document is a comprehensive parts manual for the Champion Power Equipment 12,000W Electric Start Generator (Model 201160). It contains exploded view diagrams and corresponding parts lists for every major assembly of the generator. Use this document to identify specific components for maintenance, repair, or ordering replacement parts.
Parts Identification
The manual is organized by assembly. Each section includes a diagram (Figure) and a table listing the part number, description, and quantity for each component.
Assembly Sections

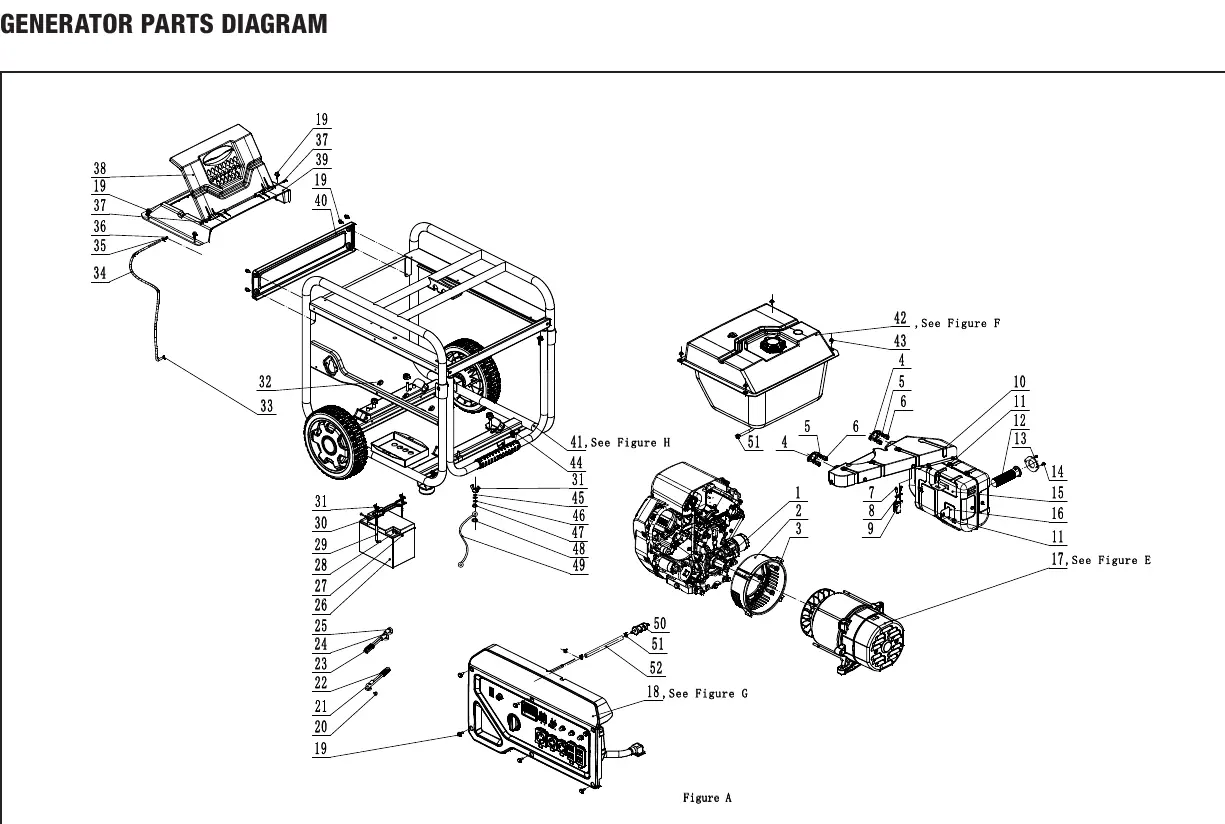

- Generator Assembly: Main overview of the unit and its primary sub-assemblies.

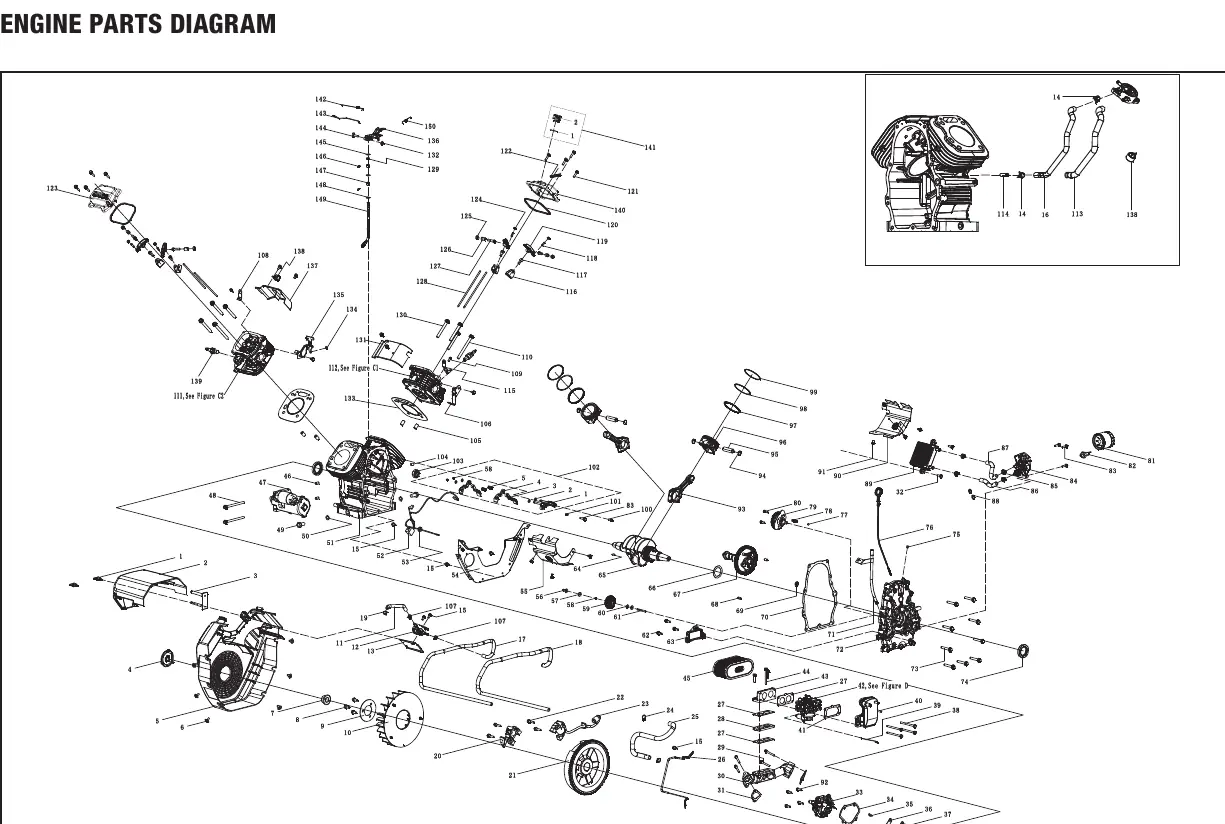

- Engine Assembly: Detailed breakdown of the engine components, including crankcase, pistons, and governor.
- Cylinder Head Assemblies: Specific diagrams for Cylinder Head 1 and 2, including valves and springs.
- Carburetor: Components for the fuel system, including main jets for standard and high-altitude operation.
- Alternator: Electrical generation components, including the rotor, stator, and AVR.
- Fuel Tank: Fuel storage and delivery parts, including the fuel filter and cap.

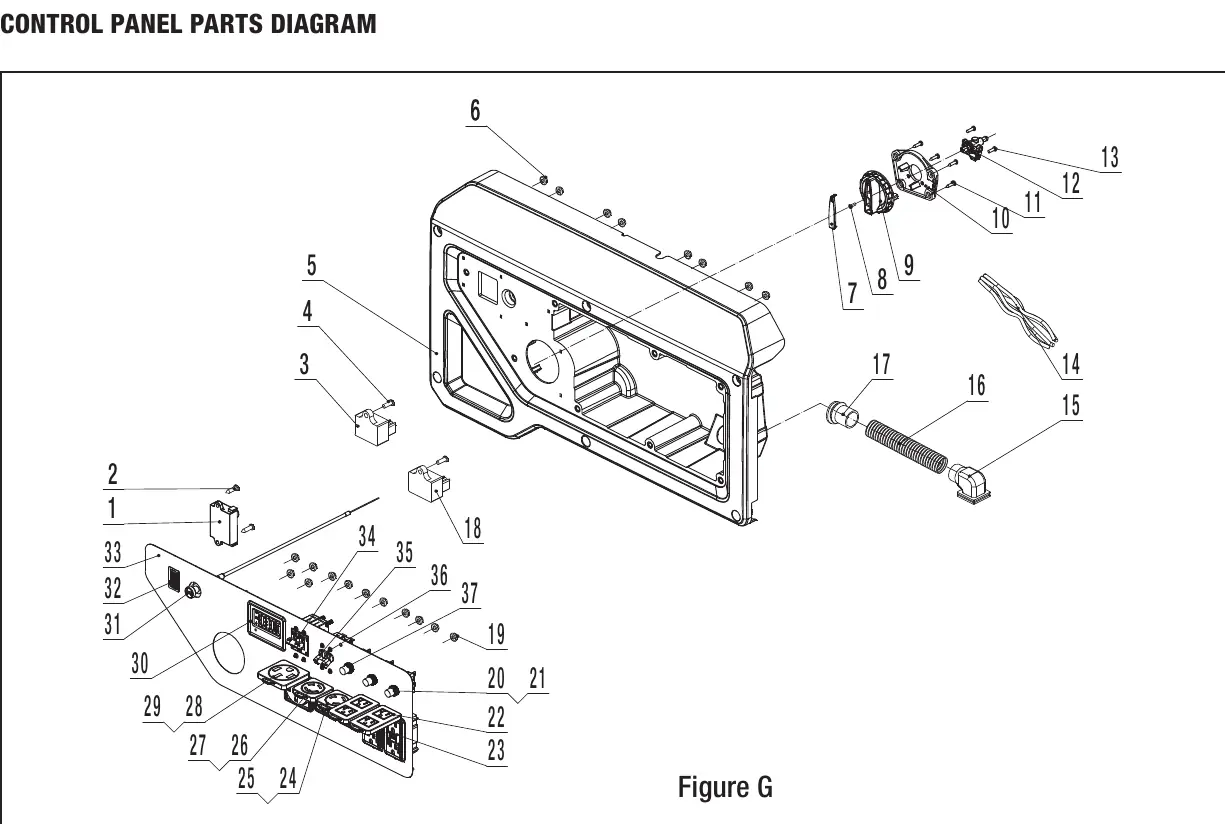

- Control Panel: Switches, breakers, outlets, and the CO shutdown module.
- Frame Assembly: Structural components, wheels, and handles.
Wiring Diagram
A full electrical schematic is provided on page 23, detailing connections for the battery, starter, ignition, and control panel.
Ordering Replacement Parts
To order replacement parts, visit shop.championpowerequipment.com or call 1-877-338-0999.
