Cobra 19MINICB CB Radio User Guide
Quick start guide for the Cobra 19MINICB ultra-compact CB radio, covering operation, menu settings, squelch control, and safety information.
Table of contents
Quick guide from the manual
The Cobra 19MINICB is an ultra-compact recreational CB radio. This document provides essential instructions for daily operation, menu navigation, and configuration of squelch and audio settings. Ensure the antenna is properly installed and the radio is powered correctly before use.
Device Overview

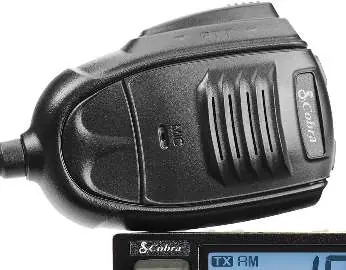

The radio features a front-facing LCD display, a microphone with PTT (Push-To-Talk) and channel up/down buttons, and a main unit with volume/power control, menu/lock button, and squelch control. External speaker and antenna jacks are located on the rear.
Operating the Radio
- Power: Press and release the POWER button to turn on. Press and hold to turn off.
- Volume: Turn the POWER button clockwise to increase volume, counter-clockwise to decrease.
- Channel Control: Press the POWER button to enter channel selection, then turn the button to change the channel. Press POWER again to confirm.
- Squelch Control: Press the SQ/ASQ button to adjust squelch (1-34) or Auto Squelch (ASQ 1-9). Use the channel buttons to adjust the level.
- VOX: Press and hold the PTT switch on the microphone to activate. Use the menu to configure VOX sensitivity and delay.
Menu Options
Access the menu by pressing the MENU button. Use the POWER button to select functions and the microphone UP/DN buttons to adjust settings:
- KEY BP: Beep (on/off)
- ROG BP: Roger Beep (off/tones 01-06)
- VOX L: VOX Sensitivity (01-09)
- VOX T: VOX Delay (01-09)
- RF.GAIN: RF Gain Control (03, 06, 09-48)
- TOTSET: Time Out Timer (off, 01-10 minutes)
- PWR.AUTO: Automatic Power On (on/off)
- FU VER: Firmware Version
Safety and Compliance
This device complies with FCC Part 15 and Industry Canada RSS standards. Ensure a minimum distance of 45.5cm (USA) or 54.1cm (Canada) from the body during operation. The maximum supported antenna gain is 5 dBi. Do not short the external speaker output as it uses a Bridge Tied Load (BTL) design.
Official resources from the manual
Manufacturer information
Cobra Electronics
Practical help
Common problems
Keypad is unresponsive
The keypad may be locked. Press and hold the MENU button for 3 seconds to unlock.
Radio settings are incorrect
Perform a factory reset by entering the menu, selecting RESET, and holding the POWER button until it stops blinking.
Before use
- Ensure the antenna is connected to the antenna jack.
- Verify the power source is stable.
- Check that the external speaker (if used) is compatible with 8 Ohm impedance.
- Ensure the radio is mounted in a location that allows for safe operation.
Specs in practice
- Max Antenna Gain
- 5 dBi; do not exceed this to maintain compliance and prevent damage.
- Squelch Levels
- 1-34 levels available to block out noise; higher numbers require stronger signals to break squelch.
Model compatibility
- External speaker must use a 3.5mm mono connector.
- External speaker output is a Bridge Tied Load (BTL) design; do not ground the speaker wires.
