Assembly Instructions for KINGDOM Bed 140/160/180
Step-by-step assembly guide for the KINGDOM bed (140/160/180 cm). Includes parts identification, hardware list, and assembly sequence for the bed frame.
Quick answers from the manual
Quick answer
- The KINGDOM bed is assembled by connecting the base frame sections, attaching the headboard/footboard with the provided screws, and installing the mattress base. Maximum load is 120kg per side. p. 1
Key actions
- Assemble base frame using screws (B) and connectors (C) p. 1
- Attach headboard/footboard using screws (B) and brackets (E) p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Weight Capacity | 120kg | Maximum weight per side of the bed | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The KINGDOM bed is designed for assembly by the user. Please ensure you have all 5 packages (1/5 to 5/5) before beginning. The maximum weight capacity is 120 kg per side. Do not sit on the edge of the bed frame during or after assembly.

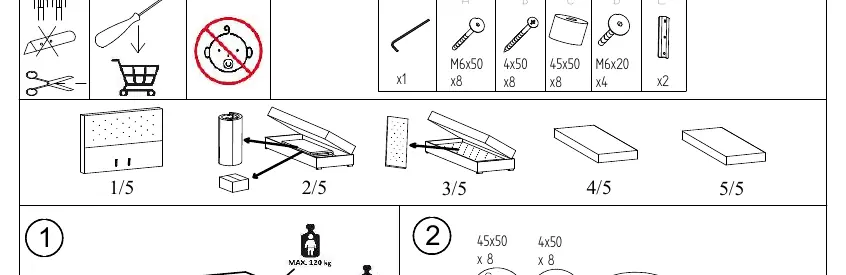

Parts and Hardware
Before starting, identify the following components:
- A: Allen key (x1)
- B: M6x50 screws (x8)
- C: 45x50 cylindrical connectors (x8)
- D: M6x20 screws (x4)
- E: Brackets (x2)
Assembly Instructions
Step 1: Preparation
Ensure all 5 packages (1/5, 2/5, 3/5, 4/5, 5/5) are present. Verify you have the correct hardware quantities listed above.

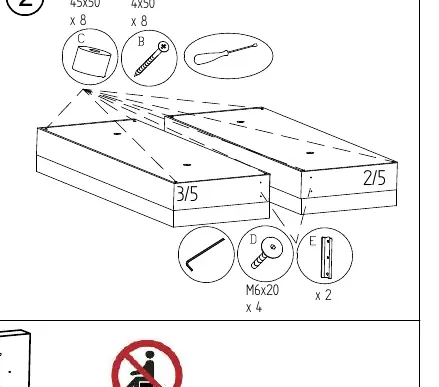

Step 2: Base Frame Assembly
Align the base sections (2/5 and 3/5). Secure the sections together using the M6x50 screws (B) and the 45x50 connectors (C). Use the Allen key (A) to tighten.

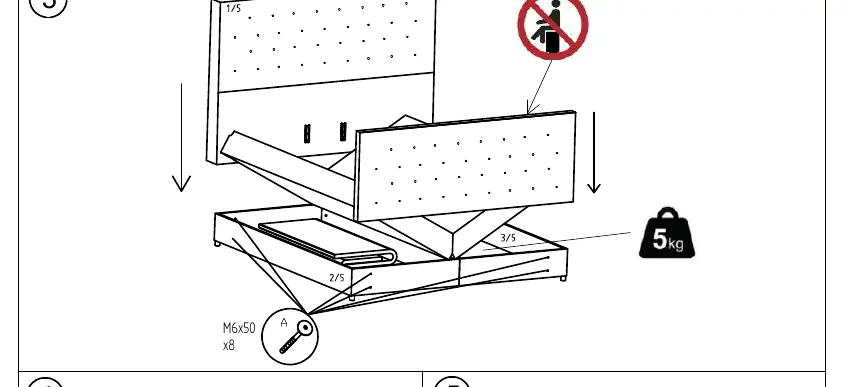

Step 3: Headboard and Footboard Attachment
Attach the headboard and footboard sections to the base frame. Use the M6x50 screws (B) and brackets (E) where indicated. Ensure all connections are tightened securely with the Allen key (A).
Step 4: Final Assembly
Place the mattress base (4/5 and 5/5) onto the assembled frame. Ensure the base is centered and stable before placing the mattress on top.
Manufacturer information
Conforama
Practical help
Common problems
Bed feels unstable or wobbly
Check that all screws (B and D) are fully tightened using the Allen key (A). Ensure the frame is on a level surface.
Missing hardware or parts
Verify that all 5 packages (1/5 to 5/5) were received and opened. Check inside the packaging for small hardware bags.
Before use
- Verify all 5 packages are present
- Ensure you have the Allen key (A)
- Check that the floor is level
- Confirm weight limit (120kg per side)
Images and diagrams
- The diagram uses numbers 1/5 to 5/5 to represent the different boxes/parts of the bed set.
- Letters A-E correspond to the specific hardware required for each step.
Model compatibility
- Compatible with mattress sizes 140cm, 160cm, and 180cm.
