Assembly Instructions for Mercer41 Upholstered Bed Frame 196-5179K

Quick guide from the manual

This document provides assembly instructions for the Mercer41 Upholstered Bed Frame (196-5179K). It is recommended to assemble the bed with a team. Ensure you have a clean, soft surface for assembly to avoid scratching the product.

Safety and assembly precautions

• Check components: Verify all parts and accessories against the parts list before starting. Keep them away from children.
• Surface protection: Install on a clean, soft underlay (such as carpet or cardboard).
• Safety: Main components are heavy; handle with care.
• Stability: Do not move the product until it is completely installed.
• Tightening: Do not over-tighten screws initially. Screw them in about 70% of the way, then fully tighten after the assembly is complete.

Parts and hardware

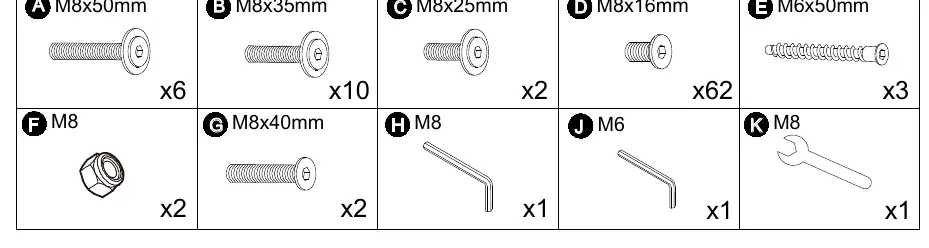

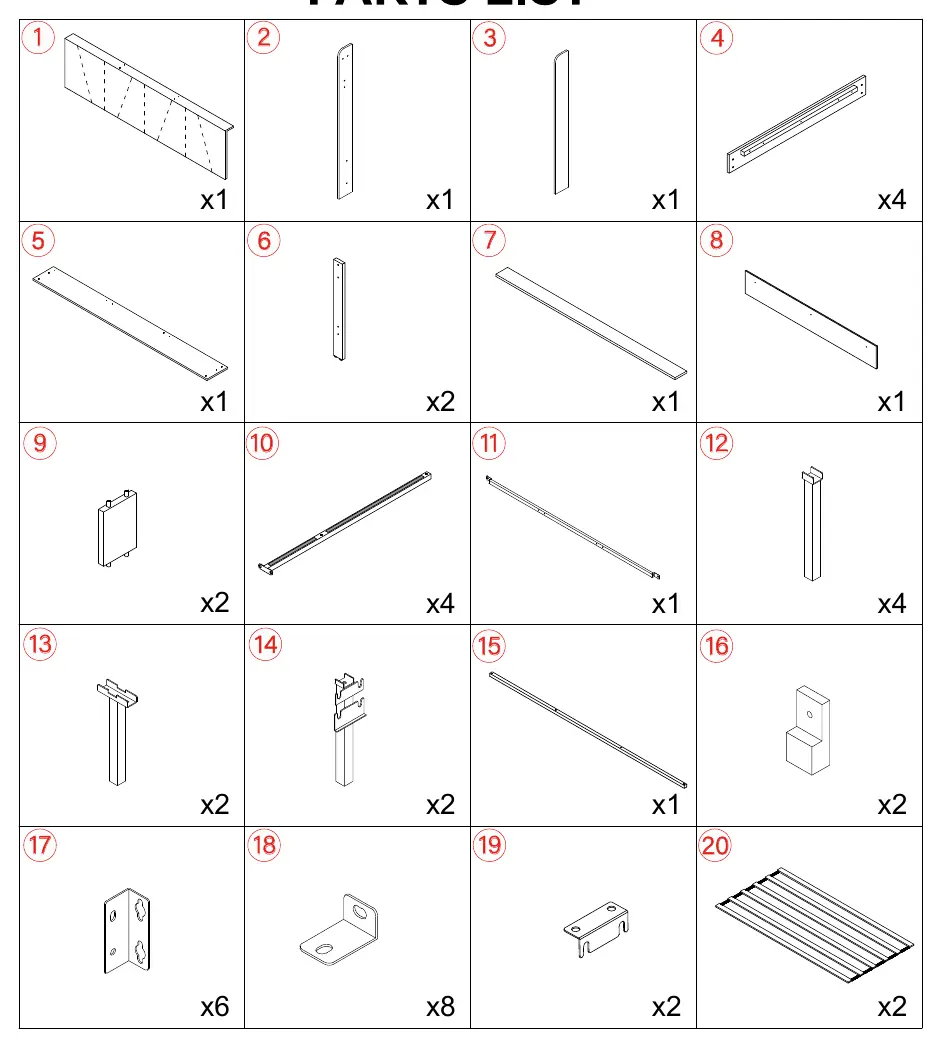

The product includes 20 numbered parts and hardware labeled A through K. Refer to the parts list on page 3 and the hardware list on page 4 of the manual to identify all items before beginning assembly.

Assembly steps

The assembly process consists of 22 steps. Key stages include:

• Steps 1-4: Assembling the side rails and frame structure.
• Steps 5-10: Installing the support slats and center support legs.
• Steps 11-18: Attaching the headboard and footboard components.

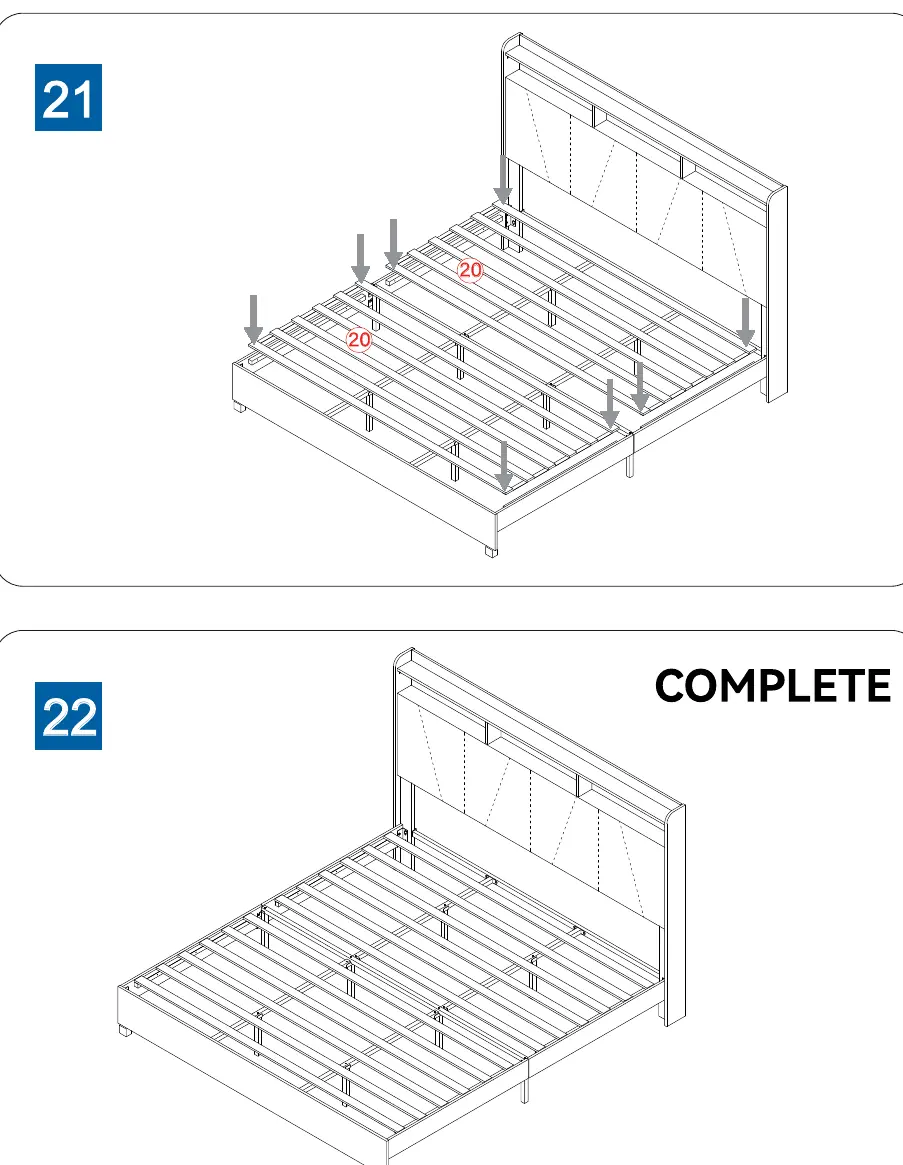

• Steps 19-22: Finalizing the frame structure and securing all bolts.

Frequently asked questions

• Do I need a box spring? No, the bed frame comes with strong slats that provide support for the mattress.
• What if the screws don't fit? Do not over-tighten screws initially. Start by screwing them in about 70% of the way, then fully tighten after the entire assembly is complete.
• What if I receive a broken item? Contact customer service immediately.
