Instruction Manual for Crystorama 1005-PB-CL-MWP Crystal Chandelier
Quick guide for the Crystorama 1005-PB-CL-MWP 5-light crystal chandelier. Includes assembly steps, wiring instructions, crystal placement guide, and safety warnings.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1005-PB-CL-MWP chandelier, including wiring, crystal placement, and part identification. p. 1, 2
Key actions
- Assemble center column and bottom bowl p. 1
- Install glass arms p. 1
- Mount and wire fixture p. 1
- Dress crystals p. 1
First start
- Installation and assembly p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | 5- Candelabra Base Bulb | Required bulb base type | p. 1 |
| Wattage | 40 Watts recommended, 60 Watts Max | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Dry rated | Environmental rating for the fixture | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Part Numbers p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Crystorama 1005-PB-CL-MWP is a 5-light crystal chandelier designed for indoor use. It is Dry rated. The fixture requires 5 Candelabra Base bulbs, with 40 Watts recommended and 60 Watts maximum. The use of LED bulbs is recommended for extended use. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes.
Installation Steps
- Place the fixture parts on a soft cloth-covered platform before installation.
- Screw the Center column kit onto the distributor box.
- Place the bottom bowl, check ring, bottom bobeche, and check ring in that order over the bottom distributor box. Secure with the finial.
- To install the glass arms: Slightly loosen each screw on the top plate over the distributor box. Pull a female plug through a hole in the plate. Connect the male plug at the end of the arm with the female plug. Push the end of the arm with the metal tab through the hole until stopped by the metal tab. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw securing the arm in place. Repeat for all arms.
- Insert the scrolls onto the holder and put the bobeche over the socket.
- Attach the mounting bar onto the outlet box.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture up and perform the wire connection. Attach the canopy over the mounting bar and secure with the collar ring.
- Dress the crystals as illustrated.

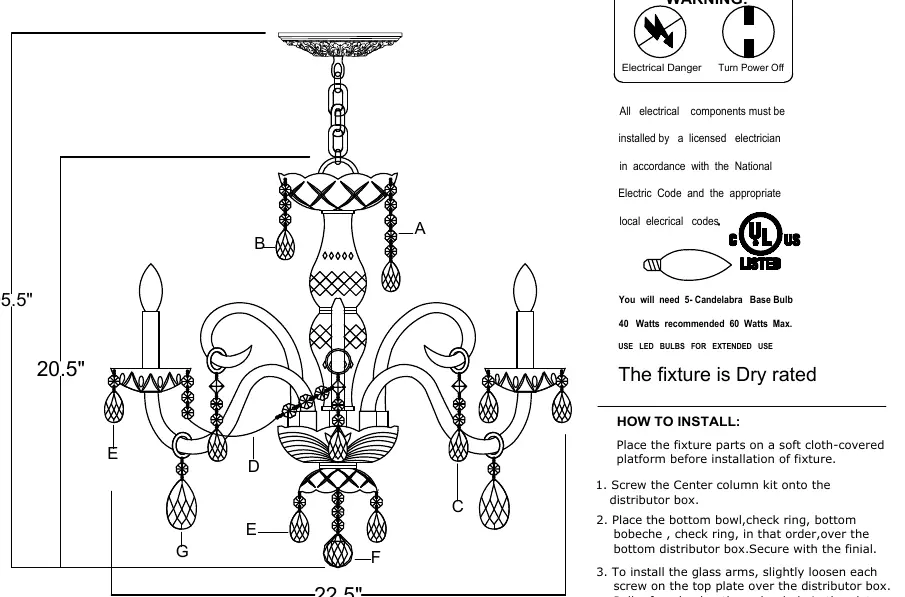

Crystal Assembly
The chandelier requires specific crystal sets to be installed as follows:
- A: 5 Sets (5) 14mm + AS9-1.5"
- B: 5 Sets (3) 14mm + AS9-1.5"
- C: 5 Sets (1) Ring + (1) Square + (2) 14mm + AS9-2"
- D: 10 Sets (13) 14mm
- E: 25 Sets (1) 14mm + AS9-2"
- F: 1 Piece (3) 14mm + AS8-40mm Ball
- G: 5 Sets (1) Ring + (1) 14mm + AS9-2.5"
Safety Warnings
This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.p65warnings.ca.gov. Always turn off power at the circuit breaker before beginning installation.
Official resources from the manual
Manufacturer information
Crystorama
Practical help
Common problems
Fixture arms are loose
Ensure the metal tab on the arm is twisted counter-clockwise until both inserts lock onto the loose screws on the top plate.
Fixture not working
Verify that the male plug from the arm is securely connected to the female plug inside the distributor box.
Before use
- Turn off power at the circuit breaker.
- Ensure you have 5 Candelabra Base bulbs.
- Verify all parts are present according to the parts list.
- Prepare a soft cloth-covered platform for assembly to prevent scratching.
- Ensure a licensed electrician is available for installation.
Show more Show less
Images and diagrams

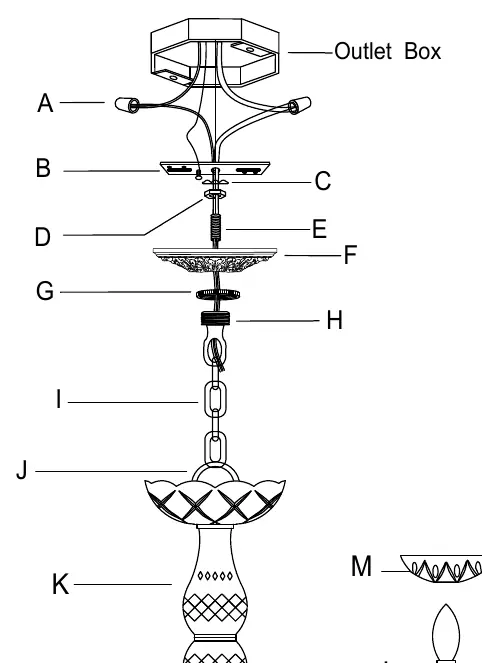

- The assembly diagram shows the order of the center column, bottom bowl, and bobeche.

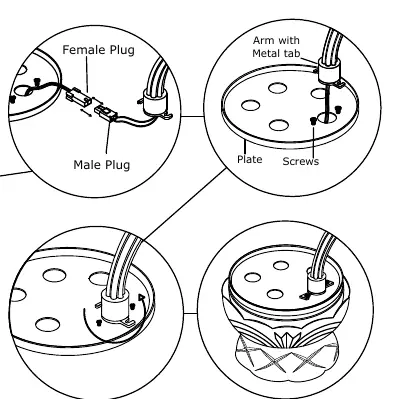

- The wiring detail shows how to connect the male plug from the arm to the female plug in the distributor box.
Model compatibility
- Use LED bulbs for extended use.
- Must be installed by a licensed electrician.
