Crystorama 237-CH Calypso Six Light Chandelier Assembly Instructions
Assembly and installation guide for the Crystorama 237-CH Calypso Six Light Chandelier. Includes parts list, crystal hanging instructions, bulb requirements, and safety warnings.
Quick answers from the manual
Quick answer
- The Crystorama 237-CH is a six-light chandelier. It requires 6 Candelabra base bulbs (40W recommended, 60W max) and must be installed by a licensed electrician. p. 1
Key actions
- Connect hanging rods to the banding ring and the loop. p. 1
- Attach the bottom basket to the banding ring rods. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulbs | 6x Candelabra Base | Required bulb type | p. 1 |
| Max Wattage | 60W | Maximum wattage per bulb | p. 1 |
| Rating | Damp rated | Environmental suitability | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Assembly Instructions p. 1
- Parts List p. 2
Table of contents
Quick Guide from the Manual
This chandelier must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Ensure the power is turned off at the circuit breaker before beginning installation. This fixture is damp rated.
Bulb Requirements
- Quantity: 6 bulbs
- Base: Candelabra base
- Wattage: 40 Watts recommended, 60 Watts maximum
- Recommendation: Use LED bulbs for extended use
Assembly Instructions
- Prepare the Ceiling: Ensure the ceiling box can support the weight of the fixture.
- Connect Hanging Rods: Connect one end of the hanging rod to the hole inside the banding ring, and the second end to the loop.
- Attach Bottom Basket: Raise the bottom basket and connect the hooks of the bottom basket to the rods of the banding ring.
- Install Bulbs: Install the bulbs (not included) into the sockets.
Crystal Installation
Hang the crystals on the rings by alternating between crystal type A and crystal type B. Refer to the assembly diagram for the specific placement on the banding ring and the bottom basket.
Parts List
The following parts are included with the fixture:
- A: Mounting hardware
- B: Canopy (W5-7/8" x H1-1/8")
- C: Collar ring
- D: Collar loop
- E: Chain (L72", 4mm thick)
- F: Loop
- G: Hanging rod (D1/2" x L15-5/8")
- H: Banding ring
- I: Socket
- J: Bottom basket
Technical Specifications
- Dimensions: 24-7/8" diameter, 19-3/4" fixture height, 93-3/4" total height with chain.
- Crystal A: 29mm
- Crystal B: 76mm
Manufacturer information
Crystorama
Practical help
Common problems
Fixture is not level
Check that all hanging rods are securely connected to the banding ring and the loop.
Missing parts
Verify all parts (A-J) listed in the parts section are present before starting assembly.
Before use
- Turn off power at the circuit breaker.
- Ensure installation is performed by a licensed electrician.
- Verify all parts (A-J) are present.
- Check that the ceiling box can support the fixture weight.
- Confirm you have 6 Candelabra base bulbs.
Show more Show less
Images and diagrams

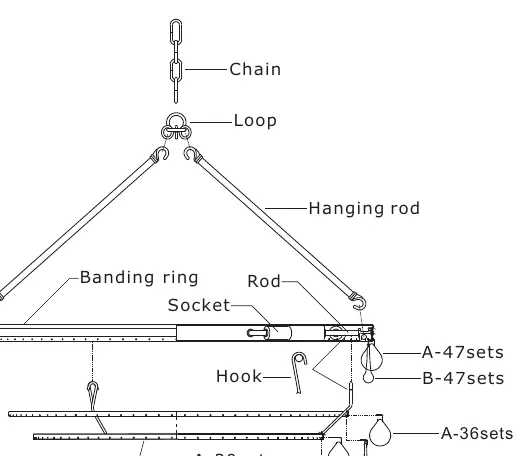

- The assembly diagram illustrates the connection points for the hanging rods, banding ring, and bottom basket.
- The crystal diagram shows the alternating pattern required for hanging crystal types A and B.
Model compatibility
- Fixture is damp rated.
- Requires 6 bulbs (not included).
