User Manual for Crystorama 1061-PB-CL-MWP Chandelier
Quick guide for the Crystorama 1061-PB-CL-MWP chandelier. Includes installation steps, wiring instructions, crystal assembly, and bulb requirements.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1061-PB-CL-MWP chandelier, including wiring, crystal placement, and part identification. p. 1, 2
Key actions
- Install the fixture by following the 8-step installation process, including attaching the center column, bottom bowl, glass arms, and mounting bar. p. 1
- Connect the fixture wiring to the outlet box. p. 1
First start
- Ensure power is turned off before beginning installation. p. 1
- Install 5 Candelabra Base bulbs (40 Watts recommended, 60 Watts Max). p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base type | p. 1 |
| Wattage | 40W (recommended), 60W (max) | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Dry rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Warnings p. 1

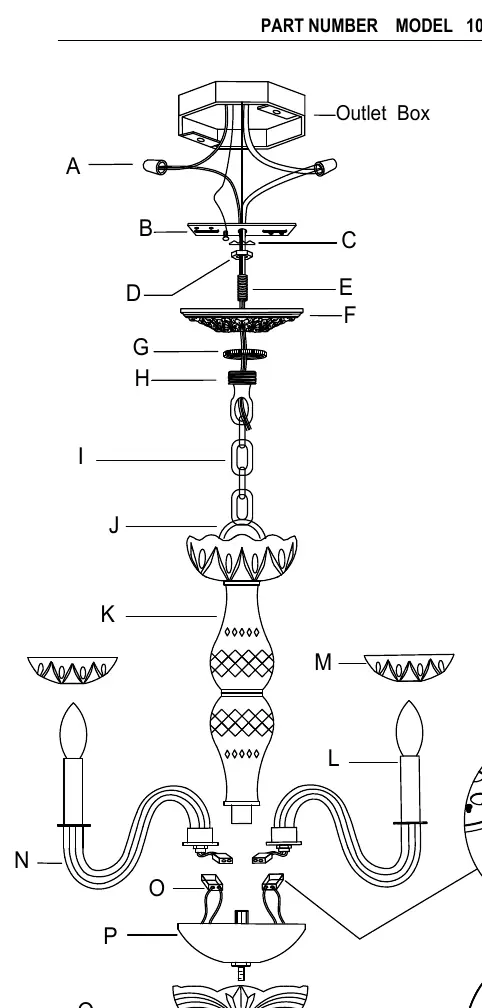

- Part Numbers and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This chandelier is designed for indoor use and is Dry rated. Installation must be performed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Ensure the power is turned off at the circuit breaker before beginning installation. The fixture requires 5 Candelabra base bulbs (40W recommended, 60W maximum). LED bulbs are recommended for extended use.
Safety and Warnings
- Electrical Danger: Always turn off power before installation.
- California Proposition 65: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
- Handling: Place fixture parts on a soft cloth-covered platform before installation to prevent damage.
Installation Instructions
- Screw the center column kit onto the distributor box.
- Place the bottom bowl and check ring over the bottom distributor box and secure with the finial.

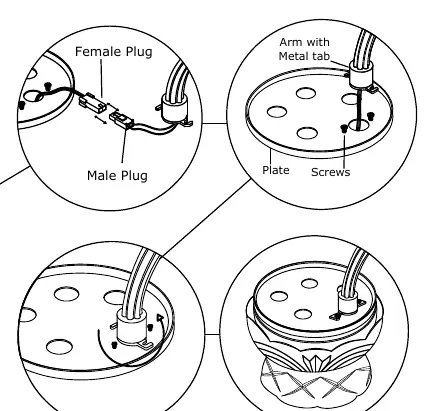

- Install glass arms: Slightly loosen each screw on the top plate. Pull the female plug through the hole in the plate. Connect the male plug at the end of the arm with the female plug. Push the arm end with the metal tab through the hole until stopped by the tab. Twist the metal tab counter-clockwise until it locks onto the loose screws. Tighten the screw to secure the arm. Repeat for all arms.
- Place the bobeche over the socket.
- Attach the mounting bar onto the outlet box.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture, perform the wire connection, attach the canopy over the mounting bar, and secure with the collar ring.
- Dress the crystals as illustrated.
Crystal Assembly
The chandelier requires specific crystal sets to be installed. Refer to the detailed illustration in the manual for the exact placement of sets A through H. Each set consists of specific combinations of 14mm crystals, squares, balls, and AS9-2.5" or AS9-2" pieces.
Specifications
- Bulb Type: 5x Candelabra Base
- Wattage: 40W recommended, 60W max per bulb
- Rating: Dry rated
- Chain Length: 4mm x 72"
Manufacturer information
Crystorama
Practical help
Common problems
Glass arm is loose or not secure
Ensure the metal tab on the arm is twisted counter-clockwise until it locks firmly onto the loose screws on the top plate.
Wiring connection failure
Ensure the male plug at the end of the arm is fully connected to the female plug pulled through the top plate hole.
Before use
- Turn off power at the circuit breaker.
- Prepare a soft cloth-covered platform for assembly.
- Verify all parts are present according to the parts list.
- Ensure you have 5 Candelabra base bulbs (40W-60W).
- Confirm the installation location is dry (Dry rated fixture).
Show more Show less
Specs in practice
- Candelabra Base
- Standard E12 bulb base type required for this fixture.
Images and diagrams
- The wiring diagram shows how to connect the male and female plugs inside the distributor box.
- The crystal placement guide details the specific combinations of crystals (Sets A-H) required for different parts of the chandelier.
Model compatibility
- LED bulbs are recommended for extended use.
- Must be installed by a licensed electrician.
