Installation Guide for Hunter Zoanne 24-Inch 6-Light Chandelier
Step-by-step installation and wiring guide for the Hunter Zoanne 24-Inch 6-Light Chandelier (Models 19572, 19573). Includes assembly instructions, safety warnings, and maintenance tips.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Hunter Zoanne 24-Inch 6-Light Chandelier (Models 19572, 19573), covering preparation, assembly, wiring, and maintenance. p. 1
Key actions
- Turn off power at the circuit breaker before starting installation. p. 1
- Connect black wire to black (live), white to white (grounded), and ground to ground. p. 1
Problems and fixes
Ground wire missing
Stop installation and consult a qualified electrician.
p. 1Show 3 more answers Show less
Maintenance and reset
- Clean with a clean, lint-free cotton or microfiber cloth. Do not spray cleaner directly on the fixture. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Fixture weight | 8.36 lbs (3.8 kg) | Weight of the fixture | p. 1 |
| Light count | 6 | Number of light bulbs required | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides instructions for installing the Hunter Zoanne 24-Inch 6-Light Chandelier. Before beginning, ensure you have the necessary tools: a ladder, pliers, and wire strippers. Always turn off the power at the circuit breaker before starting any electrical work. The fixture must be grounded; if a ground wire is not present, consult a qualified electrician.
Preparation for Installation
Carefully remove all contents from the carton. Shut off the power at the circuit breaker and remove the old fixture and mounting bracket. Prepare the new mounting bracket (A) by attaching the threaded post (D) with the hex nut (E). Adjust the position of the threaded post (D) so that the canopy (F) sits flush against the ceiling when installed. Tighten the hex nuts (E) to secure the post in place.
Assembling the Fixture
Adjust the fixture arms to the desired position. Thread the wires through and screw the hanging ring (K) onto the threaded post (L). Determine the required chain length and use pliers to remove excess links. Attach the quick-connect links (J) to both ends of the chain (I). Connect the chain to the hanging ring (K) and the canopy loop (G). Feed the fixture wires up through the chain, pulling them taut. Slide the canopy loop ring (H) and canopy (F) onto the chain/wire assembly.
Connecting the Wires
Connect the fixture wires to the power supply wires from the junction box:
- Black to Black: Connect the live wires together.
- White to White: Connect the grounded wires together.
- Grounding: Connect the green or copper ground wire to the grounding screw (B) on the mounting bracket.
Twist the ends of the wire pairs together and secure them with a wire connector, ensuring all twists are in the same direction.
Finishing the Installation
Place the canopy (F) flush against the ceiling and slide the canopy loop ring (H) up to secure it. Tighten the ring (H) onto the canopy loop (G). Install the light bulbs (not included) according to the fixture's specifications, ensuring you do not exceed the recommended wattage. Turn on the power to test the fixture.
Cleaning Tips
Treat the fixture gently. Regular cleaning reduces the need for deep cleaning. Turn off the light and wipe the fixture with a clean, lint-free cotton or microfiber cloth. Never spray cleaner directly onto the fixture.
Practical help
Common problems
Canopy does not sit flush with the ceiling
Adjust the position of the threaded post (D) on the mounting bracket (A) by loosening the hex nut (E) until the canopy covers at least half of the exterior threads on the canopy loop (G).
No ground wire in the junction box
Stop installation immediately and consult a qualified electrician.
Before use
- Turn off power at the circuit breaker.
- Verify the presence of a ground wire in the junction box.
- Ensure you have a ladder, pliers, and wire strippers.
- Check that the junction box is secure.
- Ensure you have the correct light bulbs (not included).
Show more Show less
Specs in practice
- Fixture weight
- 8.36 lbs (3.8 kg). Ensure the junction box can support this weight.
Images and diagrams

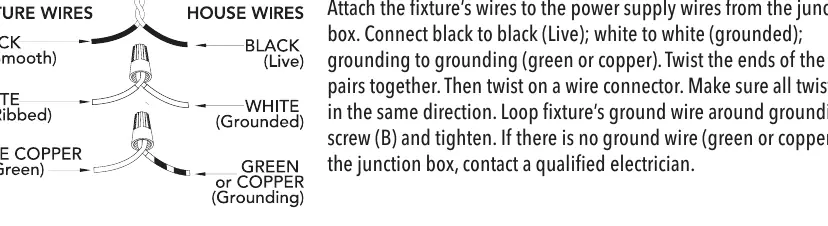

- The wiring diagram illustrates connecting black-to-black (live), white-to-white (grounded), and green/copper-to-grounding screw.
- The assembly diagram shows the sequence of the mounting bracket, threaded post, canopy, chain, and fixture body.
Model compatibility
- Must be installed in accordance with national and local electrical codes ANSI/NFPA 70.
