Crystorama 1110-PB-CL-MWP 10-Light Crystal Chandelier
Assembly and installation guide for the Crystorama 1110-PB-CL-MWP 10-light crystal chandelier. Includes wiring instructions, crystal placement, and safety guidelines.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1110-PB-CL-MWP 10-Light Crystal Chandelier, including wiring, crystal placement, and part identification. p. 1, 2
Key actions
- Install arms by connecting plugs, twisting the metal tab to lock, and tightening screws. p. 1
- Assemble the bottom bowl, washers, and bobeche, then secure with the finial. p. 1
- Dress the crystals onto the fixture. p. 1
First start
- Ensure power is turned off and installation is performed by a licensed electrician. p. 1
- Install 10 Candelabra Base bulbs (40W recommended, 60W max). p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base type | p. 1 |
| Bulb Wattage | 40W recommended, 60W max | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Dry rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1
- Part Numbers and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
This chandelier requires assembly and installation by a licensed electrician. Ensure the power is turned off before starting. The fixture is dry-rated and requires 10 Candelabra base bulbs (40W recommended, 60W max). LED bulbs are recommended for extended use.
Safety Information
- Electrical Danger: Always turn off power at the circuit breaker before installation.
- Professional Installation: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes.
- Environment: The fixture is dry-rated; do not install in damp or wet locations.
- Warning: This product contains materials that may expose you to lead, known to the State of California to cause cancer and/or birth defects.
Installation Steps
- Prepare the fixture: Place the fixture parts on a soft, cloth-covered platform to prevent damage.
- Install the arms: Slightly loosen each screw on the metal plate. Pull a female plug through the hole in the upper metal plate. Connect the male plug at the end of the arm with the female plug. Push the arm end with the metal tab through the hole until it stops. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all arms.
- Assemble the bottom: Place the bottom bowl, two metal washers, the bottom bobeche, and another metal washer over the distributor box in that order. Secure with the finial.
- Mounting: Attach the mounting bar onto the outlet box.
- Adjust height: Decide the desired hanging height and adjust the chain to the correct length.
- Wiring: Raise the fixture, perform the wire connections, attach the canopy over the mounting bar, and secure it with the collar ring.
- Finishing: Dress the crystals as illustrated in the crystal sets guide.
Crystal Assembly

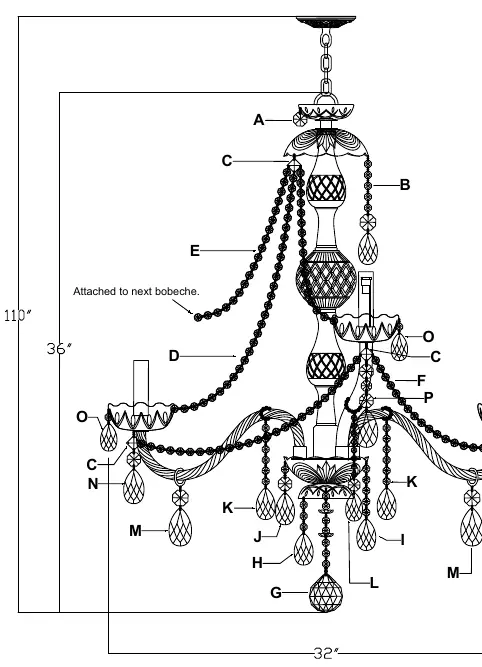

The chandelier requires specific crystal sets to be attached to various parts of the fixture. Refer to the crystal sets list (A through P) provided in the manual to ensure the correct number and type of crystals are attached to the corresponding locations on the chandelier frame.
Parts List
The fixture includes the following main components: mounting bar, canopy, collar ring, chain, center column kit, distributor box, arms (6" and 12"), bottom bowl, bobeches, and various crystal sets. Ensure all parts are present before beginning assembly.
Manufacturer information
Crystorama
Practical help
Common problems
Arm is loose or not secure
Ensure the metal tab on the arm is twisted counter-clockwise until both inserts lock onto the loose screws on the metal plate, then tighten the screw firmly.
Difficulty connecting arm wiring
Ensure the male plug from the arm and the female plug from the metal plate are fully connected before pushing the wires back into the metal plate.
Before use
- Turn off main power at the circuit breaker.
- Verify the outlet box is suitable for the fixture weight.
- Ensure you have 10 Candelabra base bulbs (max 60W).
- Check that all crystal sets (A-P) are present.
- Prepare a soft, cloth-covered surface for assembly.
Show more Show less
Specs in practice
- Candelabra base
- Standard E12 bulb base type.
Images and diagrams

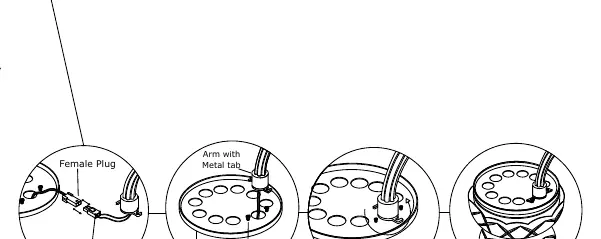

- Arm installation: Shows how to connect the male/female plugs and lock the arm using the metal tab and screws.
- Crystal sets: Lists the specific crystal combinations (A-P) required for different parts of the chandelier.
Model compatibility
- Use LED bulbs for extended use.
- Must be installed by a licensed electrician.
