Crystorama 1130-CH-CL-MWP Ten Light Chandelier Assembly Guide
Assembly and installation guide for the Crystorama 1130-CH-CL-MWP Ten Light Chandelier. Includes wiring instructions, arm installation, crystal dressing steps, and parts list.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1130-CH-CL-MWP chandelier, including arm installation, wiring, and crystal dressing. p. 1, 2
Key actions
- Install arms by connecting plugs and locking them into the metal plate. p. 1
- Assemble the center column, bottom bowl, and mounting hardware. p. 1
- Connect wiring and mount the fixture to the outlet box. p. 1
First start
- Prepare the fixture parts on a soft cloth-covered platform. p. 1
- Install 6-inch and 10-inch arms into the distributor box. p. 1
- Install bulbs (10- Candelabra Base). p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base type | p. 1 |
| Bulb Wattage | 40 Watts recommended, 60 Watts Max | Recommended and maximum wattage per bulb | p. 1 |
| Fixture Rating | Damp rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1
- Part Numbers and Exploded View p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly and installation instructions for the Crystorama 1130-CH-CL-MWP chandelier. The fixture is damp-rated and requires installation by a licensed electrician. You will need 10 Candelabra Base bulbs (40 Watts recommended, 60 Watts max). LED bulbs are recommended for extended use.
Safety warnings
- Electrical Danger: Turn off power at the circuit breaker before starting installation.
- All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes.
- This product contains materials known to the State of California to cause cancer and/or birth defects or reproductive harm.
Installation steps
- Place the fixture parts on a soft, cloth-covered platform to prevent damage.
- Install 6" arms: Slightly loosen each screw on the metal plate. Pull a female plug through a hole in the upper metal plate. Connect the male plug at the end of the upper arm with the female plug. Push the arm end with the metal tab through the hole until stopped. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all 6" arms.
- Install 10" arms: Repeat the process used for the 6" arms using the remaining holes.
- Center column: Screw the center column kit onto the distributor box.
- Bottom assembly: Place the bottom bowl, metal washer, bobeche, and metal washer in that order over the distributor box. Secure with the finial.
- Mounting: Attach the mounting bar onto the outlet box.
- Wiring: Decide the desired hanging height and adjust the chain. Raise the fixture, perform the wire connection, attach the canopy over the mounting bar, and secure with the collar ring.

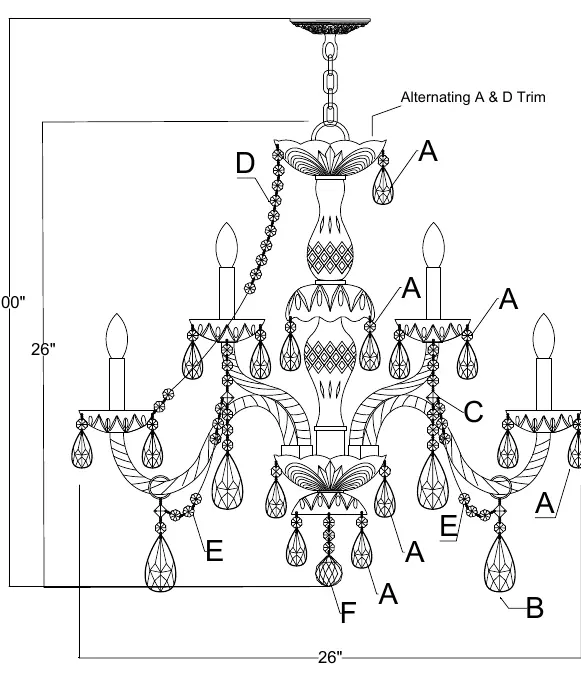

Crystal dressing
Dress the crystals according to the following sets:
- Set A: 60 sets of (1) 14mm + AS9-2"
- Set B: 5 sets of (1) Ring + (1) Square + (1) 14mm + AS9-3"
- Set C: 5 sets of (3) 14mm + (1) Square + (3) 14mm + AS9-3"
- Set D: 5 sets of (24) 14mm
- Set E: 10 sets of (14) 14mm
- Set F: 1 piece of (3) 14mm + AS8-40mm Ball
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not lighting up
Check wiring connections and ensure bulbs are properly seated in the sockets.
Arms are loose or unstable
Ensure the metal tab at the end of the arm is twisted counter-clockwise to lock securely onto the screws on the metal plate.
Before use
- Turn off power at the circuit breaker.
- Ensure you have 10 Candelabra Base bulbs (40W recommended, 60W max).
- Verify all parts are present according to the parts list.
- Ensure installation is performed by a licensed electrician.
- Prepare a soft, cloth-covered surface for assembly.
Show more Show less
Specs in practice
- Candelabra Base
- Standard E12 bulb base type.
Images and diagrams
- The arm installation diagram shows how to connect the male plug from the arm to the female plug in the distributor box and secure the arm with the metal tab.

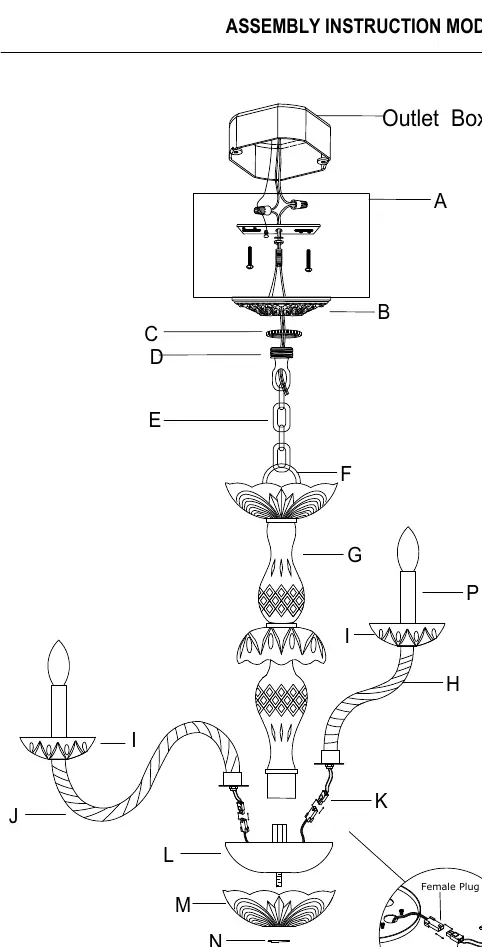

- The parts diagram illustrates the assembly order of the center column, bobeches, and bowls.
Model compatibility
- Use LED bulbs for extended use.
