Crystorama 1135-PB-CL-MWP 12-Light Chandelier
Quick assembly and installation guide for the Crystorama 1135-PB-CL-MWP 12-light chandelier. Includes step-by-step instructions for arm installation, wiring, and crystal dressing.
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
This fixture must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off the power at the circuit breaker before beginning installation. This product contains lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. The fixture is damp-rated.
Assembly and Installation
Prepare a soft, cloth-covered platform to place the fixture parts on during assembly to prevent damage.
Installing the Arms
- Slightly loosen each screw on the metal plate.
- Pull a female plug through a hole in the upper metal plate.
- Connect the male plug at the end of the upper arm with the female plug you just pulled.
- Push the end of the arm with the metal tab through the hole until it stops. This action should push the wires and plugs back inside the metal plate.
- Twist the metal tab counter-clockwise until both inserts lock onto the loose screws.
- Tighten the screw to secure the arm in place.
- Repeat this process for all 8-inch arms using every other hole, then repeat for the 12-inch arms using the remaining holes.
Final Assembly
- Screw the center column kit onto the distributor box.
- Place the bottom bowl, metal washer, bobeche, and metal washer in that order over the distributor box and secure with the finial.
- Attach the mounting bar to the outlet box.
- Decide on the desired hanging height and adjust the chain to the correct length.
- Raise the fixture, perform the wire connections, attach the canopy over the mounting bar, and secure it with the collar ring.
Crystal Dressing
Once the fixture is installed, dress the crystals as illustrated in the assembly diagram. Ensure all crystal sets (A through G) are attached to their corresponding locations on the fixture.
Technical Specifications
- Bulb Requirements: 12 Candelabra base bulbs.
- Wattage: 40 Watts recommended, 60 Watts maximum per bulb.
- Recommendation: Use LED bulbs for extended use.
Manufacturer information
Crystorama
Practical help
Common problems
Arms are loose or not locking
Ensure the metal tab is pushed through the hole and twisted counter-clockwise until it locks securely onto the screws on the metal plate.
Fixture not hanging level
Adjust the chain length carefully to ensure the fixture hangs at the desired height and is balanced.
Before use
- Turn off power at the circuit breaker.
- Ensure you have a licensed electrician for installation.
- Prepare a soft, cloth-covered surface for assembly.
- Verify you have 12 Candelabra base bulbs (max 60W each).
- Check that all crystal sets (A-G) are accounted for.
Show more Show less
Specs in practice
- Candelabra Base Bulb
- Standard bulb base type for this chandelier; 40W recommended, 60W max.
Images and diagrams

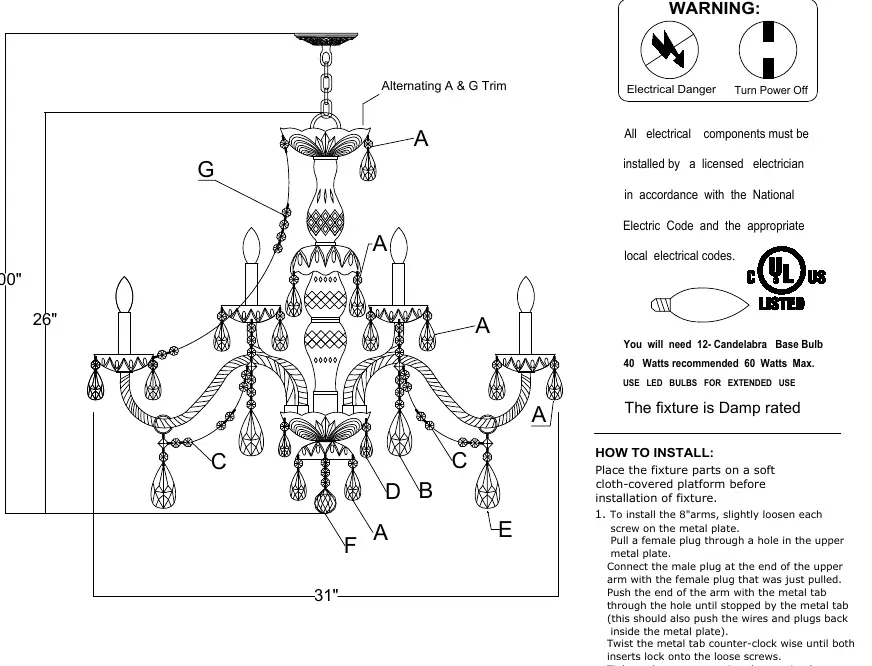

- The assembly diagram illustrates the placement of crystal sets A through G.

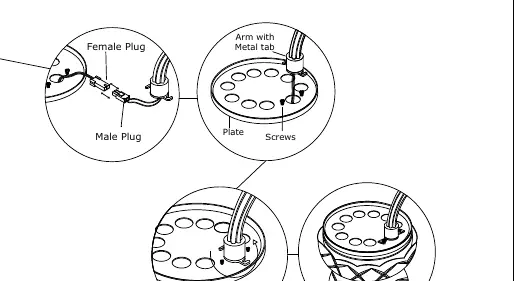

- The arm installation detail shows how to connect the male/female plugs and lock the arm using the metal tab and screws.
