Assembly Instructions for Crystorama 1139-PB-CL-MWP Chandelier
A comprehensive assembly and installation guide for the Crystorama 1139-PB-CL-MWP chandelier. Includes step-by-step instructions for arm installation, wiring, crystal dressing, and safety requirements.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1139-PB-CL-MWP chandelier, including wiring, crystal placement, and part identification. p. 1, 2
Key actions
- Install upper arms by loosening screws, connecting plugs, and locking the metal tab into place. p. 1
- Install lower arms using the same procedure as the upper arms. p. 1
- Assemble the bottom bowl, check ring, and bobeche, then secure with the finial. p. 1
- Dress the crystals onto the fixture. p. 1
First start
- Turn off power, use a licensed electrician, and prepare a soft cloth-covered platform for parts. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Requirements | 16-Candelabra Base | 40 Watts recommended, 60 Watts Max; LED bulbs recommended for extended use. | p. 1 |
| Fixture Rating | Damp rated | Suitable for damp locations. | p. 1 |
| Dimensions | 37" Wide, 34" Fixture Height, 109" Total Height | Physical dimensions of the chandelier. | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1

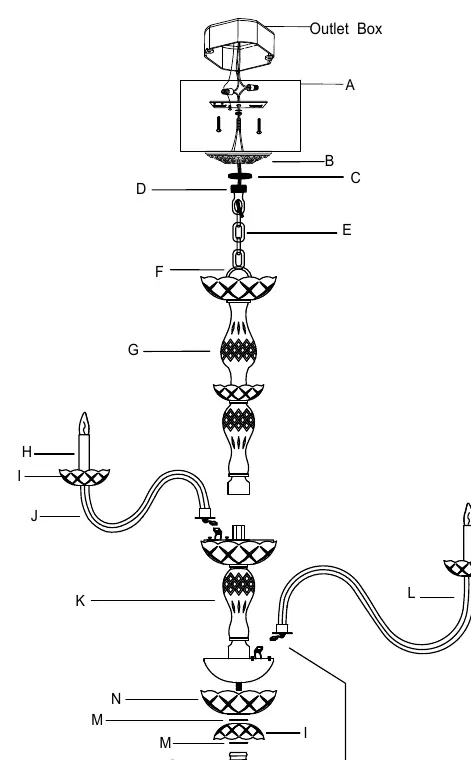

- Part Numbers and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide and Safety Information
This chandelier is damp rated and must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off the power before beginning installation. Place all fixture parts on a soft, cloth-covered platform to prevent damage during assembly.
Bulb Requirements: This fixture requires 16 Candelabra base bulbs. 40 Watts is recommended, with a 60 Watts maximum. LED bulbs are recommended for extended use.
Assembly and Installation
- Install Upper Arms: Slightly loosen each screw on the upper metal plate. Pull a female plug through a hole in the plate. Connect the male plug from the upper arm to the female plug. Push the arm end with the metal tab through the hole until stopped by the tab. Twist the metal tab counter-clockwise until the inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all upper arms.
- Install Lower Arms: Repeat the same process as the upper arms using the lower metal plate and lower arms.
- Bottom Assembly: Place the bottom bowl, check ring, bottom bobeche, and check ring in that order over the bottom distributor box. Secure with the finial.
- Column Assembly: Screw the Center column kit onto the Bottom column kit.
- Mounting: Attach the mounting bar onto the outlet box.
- Adjust Height: Decide the desired hanging height and adjust the chain to the correct length.
- Wiring: Raise the fixture up and perform the wire connection. Attach the canopy over the mounting bar and secure with the collar ring.
- Crystal Dressing: Dress the crystals as illustrated in the crystal sets diagram.

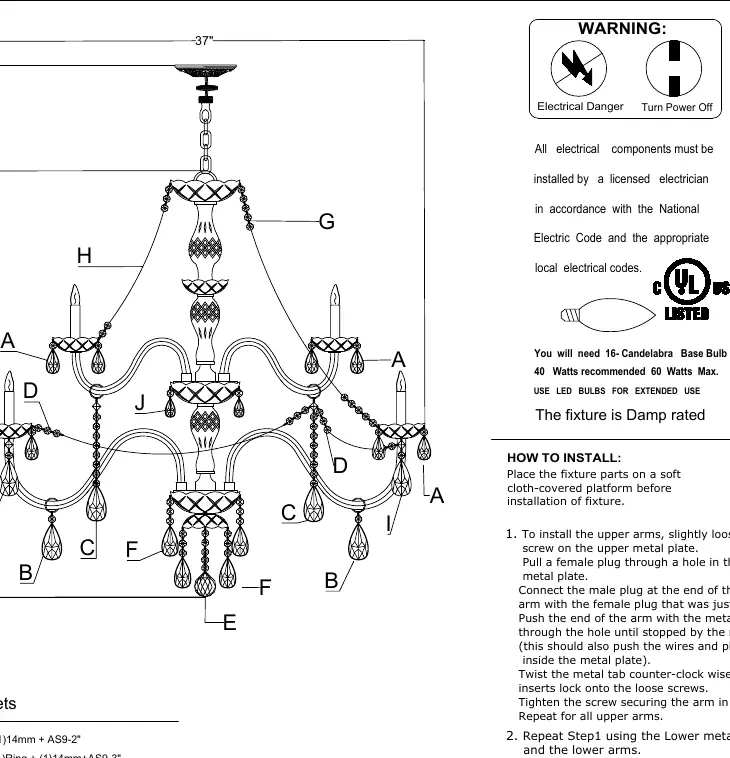

Crystal Sets
The fixture includes various crystal sets (A through J) that must be attached according to the diagram. Ensure all sets are accounted for before beginning the dressing process:
- A: 96 Sets (14mm + AS9-2")
- B: 8 Sets (Ring + 14mm + AS9-3")
- C: 8 Sets (Ring + Square + 14mm + AS9-3")
- D: 16 Sets (22x 14mm)
- E: 1 Piece (14mm + AS8-50mm Ball)
- F: 14 Sets (3x 14mm + AS9-2.5")
- G: 8 Sets (31x 14mm)
- H: 8 Sets (19x 14mm)
- I: 8 Sets (Square + 14mm + AS9-2.5")
- J: 8 Sets (14mm + AS9-1.5")
Manufacturer information
Crystorama
Practical help
Common problems
Difficulty inserting arms into the metal plate
Ensure the screws on the metal plate are sufficiently loosened before attempting to insert the arm tab.
Arm feels loose after installation
Ensure the metal tab has been twisted counter-clockwise until it locks onto the screws, then fully tighten the screws.
Wiring connection issues
Ensure the male and female plugs are fully connected and pushed back inside the metal plate before securing the arm.
Before use
- Turn off power at the circuit breaker.
- Verify all parts are present against the parts list.
- Prepare a soft, cloth-covered surface for assembly.
- Ensure the ceiling outlet box can support the weight of the fixture.
- Confirm you have 16 Candelabra base bulbs.
Show more Show less
Images and diagrams
- The crystal sets diagram shows the specific combination of rings, squares, and crystal sizes for each set (A-J).

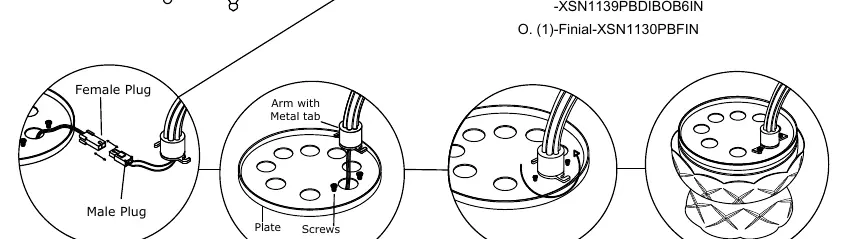

- The wiring detail shows the male/female plug connection mechanism used for the arms.
Model compatibility
- Requires National Electric Code compliant installation.
- Not suitable for outdoor locations exposed to direct rain.
