Assembly and Installation Manual for Crystorama 131-VG_CEILING Light Fixture
Quick guide for the Crystorama 131-VG_CEILING light fixture. Includes installation steps for hanging and ceiling-mount configurations, crystal assembly instructions, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This fixture is designed for indoor use and is damp rated. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. Always turn off power at the circuit breaker before beginning installation.
Bulb Requirements: Use 1 Medium Base bulb. 40 Watts is recommended, with a 60 Watts maximum. LED bulbs are recommended for extended use.

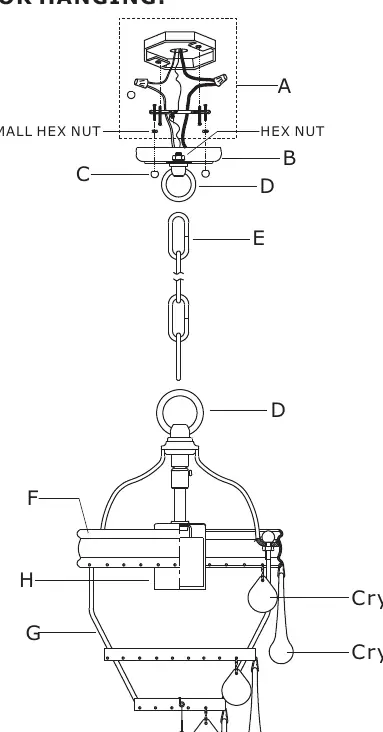

Installation for Hanging
- Determine the preferred hanging height and adjust the chain as required.
- Open one link of the chain, connect it to the fixture loop, and close the link. Open the other end of the chain, connect it to the canopy loop, and close the link.
- Thread the mounting screws into the matching holes of the mounting bar and tighten with the small hex nut.
- Secure the mounting bar to the outlet box using the outlet box screws.
- Raise the canopy, allowing the mounting screws to protrude through the holes in the canopy, and secure with the ball nut.
- Hang the crystals to the metal ring and bottom basket, alternating between glass drop A and B.
- Hang glass drop C at the bottom of the bottom basket.
- Install the bulb (not included) into the socket.

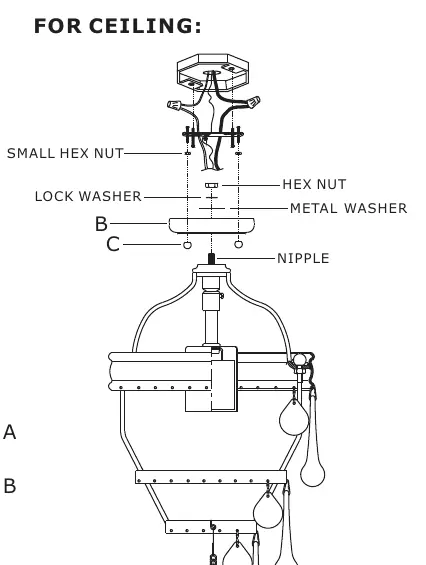

Installation for Ceiling Mount
- Loosen the hex nut of the canopy and disassemble the canopy.
- Remove the loop from the top of the fixture.
- Slip the canopy, the metal washer, and the lock washer over the nipple, then secure with the hex nut.
- Thread the mounting screws into the matching holes of the mounting bar and tighten with the small hex nut.
- Secure the mounting bar to the outlet box using the outlet box screws.
- Raise the canopy, allowing the mounting screws to protrude through the holes in the canopy, and secure with the ball nut.
- Install the bulb (not included) into the socket.
- Hang the crystals to the metal ring and bottom basket, alternating between glass drop A and B.
- Hang glass drop C at the bottom of the bottom basket.
Crystal Assembly
To ensure the correct look, hang the crystals on the rings alternating between crystals A and B. Refer to the diagram for the specific placement of the 30mm and 76mm drops.
Parts List
- Mounting hardware
- Canopy (W5-7/8" x H1-1/8")
- Finial
- Loop
- Chain (L72", 4mm thick)
- Metal ring
- Bottom basket
- Socket
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not working
Ensure the bulb is installed correctly and the power is turned on at the circuit breaker.
Crystal placement confusion
Alternate between glass drop A and B on the metal ring and bottom basket as shown in the diagram.
Before use
- Turn off power at the circuit breaker
- Verify you have a licensed electrician for installation
- Check that you have the correct bulb (Medium Base, max 60W)
- Ensure the mounting surface can support the fixture weight
