Assembly Instructions for Crystorama 2441-OP-BN Wall Mount
Quick guide for installing the Crystorama 2441-OP-BN wall mount. Includes assembly steps, bulb requirements, and parts list.
Quick answers from the manual
Quick answer
- The Crystorama 2441-OP-BN is a damp-rated wall mount fixture. Installation requires a licensed electrician, a Medium Base bulb (60W recommended, 100W max), and mounting to an outlet box. p. 1
Key actions
- Install mounting plate p. 1
- Secure backplate p. 1
First start
- Install bulb p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | Medium Base | Standard socket type | p. 1 |
| Max Wattage | 100W | Maximum power rating | p. 1 |
| Recommended Wattage | 60W | Recommended power rating | p. 1 |
Where to find it in the PDF
- Installation and Specifications p. 1
- Parts List p. 2
Table of contents
Quick Guide
This document provides assembly and installation instructions for the Crystorama 2441-OP-BN wall mount. The fixture is damp-rated, making it suitable for bathrooms or covered outdoor areas. Installation must be performed by a licensed electrician in accordance with local electrical codes.
Safety Information
- Electrical Danger: Always turn off power at the circuit breaker before beginning installation.
- Electrical Code: All components must be installed by a licensed electrician following the National Electric Code and local regulations.
- Warning: This product contains materials known to the state of California to cause cancer and/or birth defects or reproductive harm.

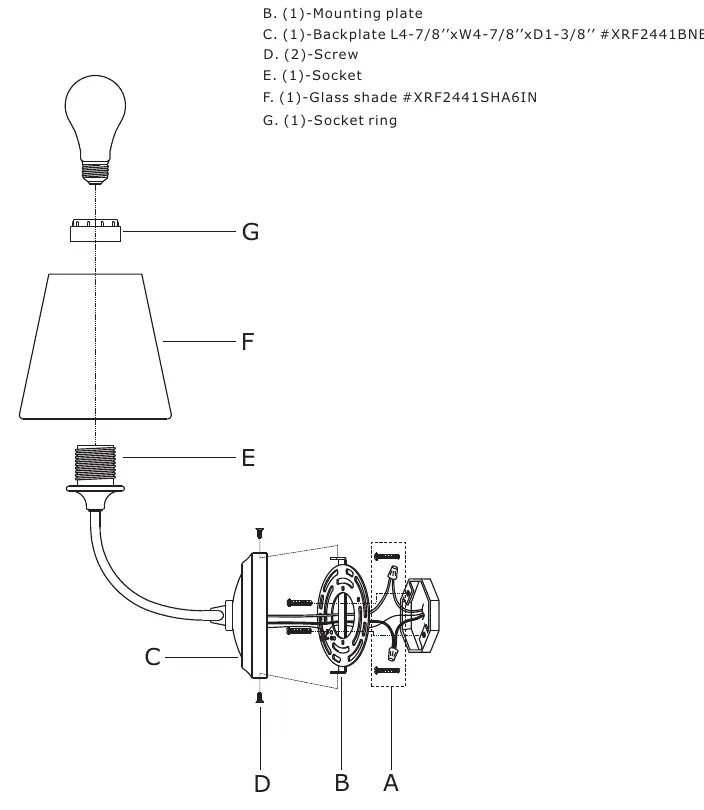

Parts List
Ensure all parts are present before beginning assembly:
- A: Mounting hardware (1)
- B: Mounting plate (1)
- C: Backplate (1)
- D: Screws (2)
- E: Socket (1)
- F: Glass shade (1)
- G: Socket ring (1)
Installation
- Install the mounting plate to the outlet box using two outlet box screws.
- Install the backplate onto the mounting plate and secure it with the screws.
- Install the glass shade over the socket and secure it with the socket ring.
- Install the bulb (not included) into the socket.
Technical Specifications
- Bulb Type: 1 Medium Base Bulb.
- Wattage: 60 Watts recommended, 100 Watts maximum.
- Usage: LED bulbs are recommended for extended use.
- Rating: Damp rated.
Manufacturer information
Crystorama
Practical help
Common problems
Bulb not included
The fixture requires a Medium Base bulb which must be purchased separately.
Fixture instability
Ensure the mounting plate is securely fastened to the outlet box and the backplate is tightened properly with the provided screws.
Before use
- Turn off power at the circuit breaker
- Verify you have a Medium Base bulb
- Ensure the installation location is suitable for a damp-rated fixture
- Confirm all parts (A-G) are included
Show more Show less
Images and diagrams
- Front view shows fixture width of 4-7/8'' and height of 10-3/4''.
- Side view shows the fixture projection of 9-3/4'' from the wall.
