User Manual for Crystorama 1486-HB-CL-MWP Chandelier
Quick guide for the Crystorama 1486-HB-CL-MWP chandelier. Includes assembly instructions, crystal placement guide, parts list, and electrical safety requirements.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions, crystal set configuration, and a parts list for the Crystorama 1486-HB-CL-MWP chandelier. p. 1, 2
Key actions
- Perform a complete inventory of all parts and components before starting installation. p. 1
- Attach the fixture to the outlet box, then install bobeches and bulbs. p. 1
- Dress the fixture with crystals, starting with pocket labeled (A) and applying sets in alphabetical order. p. 1
First start
- Ensure all electrical components are installed by a licensed electrician in accordance with the National Electric Code and local codes. p. 1
- Inventory all parts and components before beginning installation. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Requirements | 13 - Candelabra Base Bulb | Required bulb type | p. 1 |
| Wattage | 40 Watts recommended, 60 Watts Max | Recommended and maximum wattage per bulb | p. 1 |
| Fixture Rating | Dry rated | Environmental suitability | p. 1 |
| Dimensions | 33" width, 38" height | Physical size of the fixture | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1
- Part Numbers and Diagram p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
This chandelier must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. The fixture is dry-rated and intended for indoor use only. Ensure you have 13 Candelabra base bulbs (40W recommended, 60W max) ready before installation. LED bulbs are recommended for extended use.
Installation Instructions
- Perform a complete inventory of all parts and components before starting the installation.
- Safely attach the fixture to the outlet box.
- Install the bobeches and bulbs.
- Connect the power.
- Dress the fixture with crystals, starting with the pocket labeled (A).
- Apply crystal sets in alphabetical order (A through E).
Crystal Sets Inventory
The fixture requires specific crystal sets to be installed in alphabetical order:
- A: 224 Sets (14mm + AS2-1.5")
- B: 15 Sets (14mm + AS20-3")
- C: 25 Sets (27 x 14mm)
- D: 50 Sets (28mm + 26mm + 24mm + 20mm + 18mm + 16mm)
- E: 1 Piece (5 x 14mm + AS8-40mm Ball)
Parts List
The fixture assembly consists of several components, including the canopy, chain, loop, arms, and banding kits. Refer to the exploded view diagram in the manual to identify parts such as the mounting bar, wire connectors, and the 4-tier basket. Ensure all parts are accounted for before beginning assembly.
Safety Warnings
This product contains lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. Always turn off the power at the source before performing any electrical work. The fixture is dry-rated; do not install in damp or wet locations.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture does not light up
Ensure all 13 bulbs are securely tightened in their sockets and that the power supply is correctly connected by a licensed electrician.
Missing crystal components
Verify your inventory against the Crystal Sets list (A-E) provided in the manual before beginning the dressing process.
Before use
- Hire a licensed electrician for installation.
- Verify all parts against the parts list on page 2.
- Ensure the ceiling outlet box is secure.
- Purchase 13 Candelabra base bulbs (LED recommended).
- Confirm the installation location is dry (indoor only).
Show more Show less
Images and diagrams

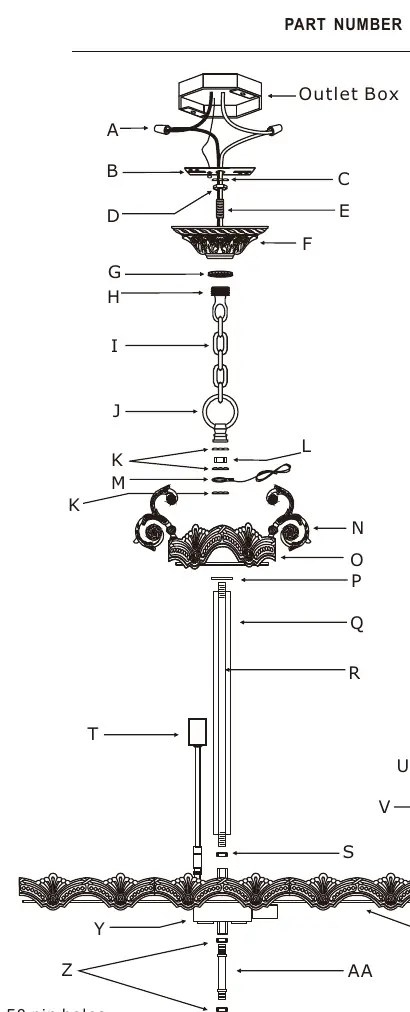

- The assembly diagram shows the sequence of components from the outlet box down to the crystal basket.

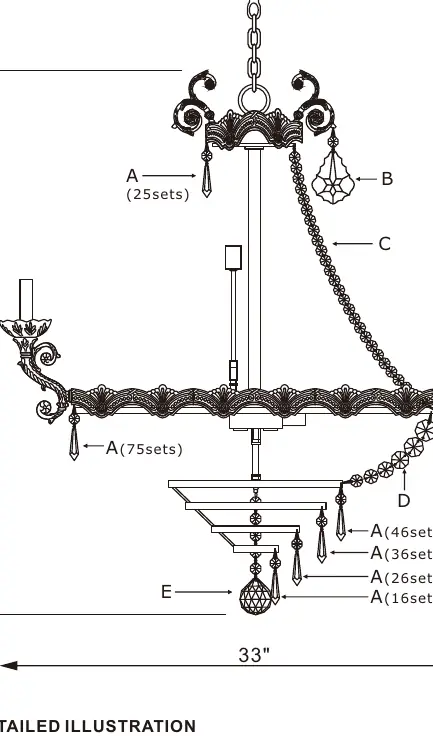

- Crystal sets are labeled A through E, corresponding to specific pin hole locations on the fixture.
Model compatibility
- For indoor use only (dry rated).
- Use LED bulbs for extended use.
Manual page author
Emily Carter
User documentation editor
