Assembly and Installation Manual for Crystorama 1155-CH-CL-MWP 15-Light Chandelier
Complete assembly and installation guide for the Crystorama 1155-CH-CL-MWP 15-light chandelier. Includes detailed wiring instructions, crystal placement diagrams, parts list, and safety warnings.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1155-CH-CL-MWP 15-light chandelier, including wiring, crystal dressing, and part identification. p. 1, 2
Key actions
- Install upper and lower arms by connecting plugs and locking tabs p. 1
- Assemble the bottom bowl, vase, and bobeche p. 1
- Mount the fixture and connect wires p. 1
- Dress the crystals p. 1
First start
- Ensure power is off and install using a licensed electrician p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base type | p. 1 |
| Bulb Quantity | 15 | Number of bulbs required | p. 1 |
| Wattage | 40W recommended, 60W max | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Damp rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1
- Part Numbers and Diagram p. 2
Table of contents
Manual images
Click an image to enlargeImportant Safety and Installation Information
This chandelier must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off power at the circuit breaker before beginning installation. The fixture is damp rated, making it suitable for areas with moisture. Use 15 Candelabra Base bulbs (40 Watts recommended, 60 Watts maximum). LED bulbs are recommended for extended use.
Installation Steps
- Preparation: Place all fixture parts on a soft, cloth-covered platform to prevent damage during assembly.
- Upper Arms: Slightly loosen each screw on the metal plate. Pull a female plug through the hole in the upper metal plate. Connect the male plug from the end of the upper arm to the female plug. Push the arm end through the hole until stopped by the metal tab. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all upper arms.
- Lower Arms: Repeat the same process as the upper arms for the lower arms.
- Center Column: Screw the Center column kit 1 onto the center column kit 2.
- Bottom Assembly: Assemble the bottom bowl, metal washer, check ring, coupling, glass vase, check ring, metal washer, bottom bobeche, and metal washer in that order over the distributor box-2. Secure with the Finial.
- Mounting: Attach the mounting bar onto the outlet box.
- Hanging: Decide the desired hanging height and adjust the chain to the correct length.
- Wiring: Raise the fixture up and perform the wire connection. Attach the canopy over the mounting bar and secure with the collar ring.
- Finishing: Dress the crystals as illustrated in the crystal sets guide.

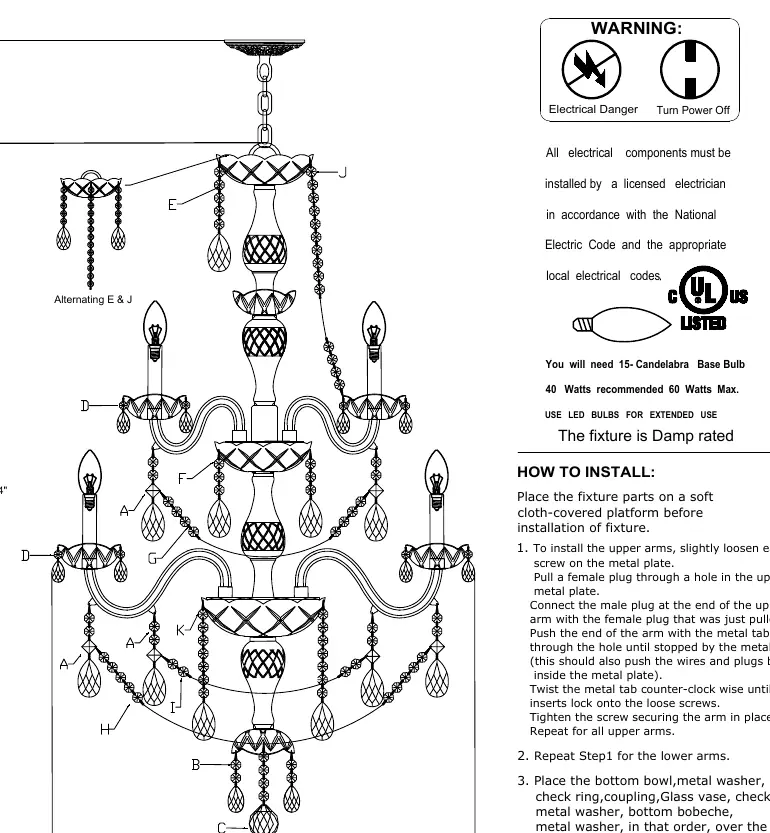

Crystal Placement Guide
The chandelier requires specific crystal sets to be installed as illustrated:
- Set A: 25 Sets (2)14mm + (1) Square + AS9-2.5"
- Set B: 5 Sets (2)14mm + AS9-2"
- Set C: 1 Piece (4)14mm + AS8-50mm Ball
- Set D: 60 Sets (1)14mm + AS9-2"
- Set E: 5 Sets (5)14mm + AS9-2.5"
- Set F: 10 Sets (3)14mm + AS9-2.5"
- Set G: 5 Sets (11)14mm
- Set H: 10 Sets (10)14mm
- Set I: 10 Sets (6)14mm
- Set J: 5 Sets (17)14mm
- Set K: 10 Sets (7)14mm + AS9-2.5"
Parts List
The fixture includes the following components:
- Mounting Hardware: Mounting bar, lock washer, hex nut, nipple, screws, wire connectors.
- Structure: Canopy, collar ring, collar loop, chain, center column kits, upper and lower arms.
- Glass and Decorative: Glass bowls, glass vases, bobeches, metal covers, PVC candle sleeves, finial.
Manufacturer information
Crystorama
Practical help
Common problems
Arms are loose or not secure
Ensure the metal tab on the arm is twisted counter-clockwise until the inserts lock onto the screws on the metal plate, then tighten the screws.
Fixture does not light up
Verify that the male and female plugs inside the metal plate are securely connected and that the main power is on.
Before use
- Turn off power at the circuit breaker.
- Prepare a soft, cloth-covered surface for assembly.
- Verify all parts are present according to the parts list.
- Ensure you have 15 Candelabra Base bulbs (max 60W).
- Confirm installation is performed by a licensed electrician.
Show more Show less
Images and diagrams

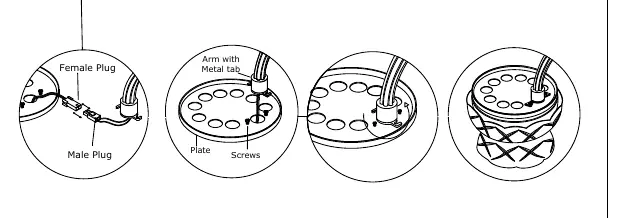

- Wiring Detail: Shows the connection between the male plug on the arm and the female plug inside the metal plate.
- Arm Installation: Illustrates the metal tab mechanism used to lock the arms into the metal plate.
Model compatibility
- Use LED bulbs for extended use.
- Not suitable for outdoor locations exposed to direct rain.
