Crystorama 135-MK Calypso Ceiling Light Assembly Instruction
Quick assembly guide for the Crystorama 135-MK Calypso ceiling light. Includes installation steps, wiring instructions, bulb requirements, and crystal arrangement details.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 135-MK ceiling light, including wiring, bulb requirements, and crystal placement. p. 1
Key actions
- Install the fixture to the outlet box p. 1
- Install bulbs p. 1
- Hang crystals p. 1
First start
- Mounting and Wiring p. 1
- Ceiling Pan Attachment p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base type | p. 1 |
| Wattage | 40W recommended, 60W max | Power rating per bulb | p. 1 |
| Rating | Damp rated | Environmental suitability | p. 1 |
| Dimensions | 10-1/2'' x 9-1/2'' | Fixture width and height | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Parts List p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly and installation instructions for the Crystorama 135-MK Calypso ceiling light. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. The fixture is damp rated.
Requirements:
- 3 x Candelabra Base Bulbs (not included).
- Recommended: 40 Watts.
- Maximum: 60 Watts.
- Use LED bulbs for extended use.

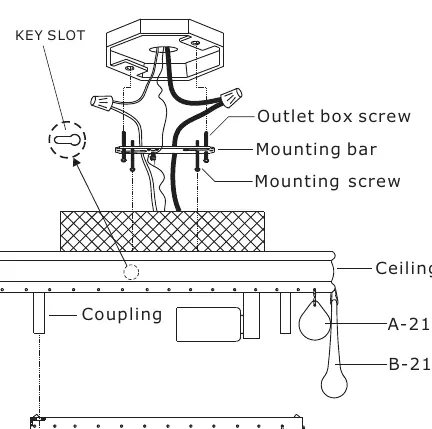

Installation instructions
- Thread the mounting screws into the matching holes in the mounting bar. Secure the mounting bar to the outlet box with the outlet box screws.
- Connect the fixture wires to the supply wires in the outlet box.
- Raise the ceiling pan up, allowing the mounting screws to protrude through the key slots on the ceiling pan.
- Rotate the ceiling pan clockwise until the mounting screws are in the narrow part of the key slots, then tighten with a screwdriver.
- Install the bulbs into the sockets.
- Secure the bottom basket to the ceiling pan with the finial.
- Hang the glass drop C at the bottom of the bottom basket.
Crystal assembly
Hang the crystals on the rings, alternating between crystal A and crystal B. The arrangement is as follows:
- A: 30mm crystals (53 sets total).
- B: 76mm crystals (53 sets total).
- C: 30mm Ball with chain (1 set).

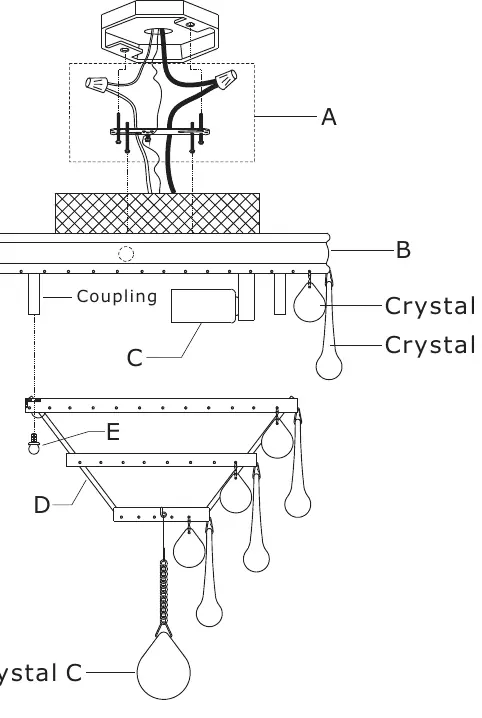

Parts list
The following parts are included with the fixture:
- A: Mounting hardware
- B: Ceiling pan
- C: Sockets (3)
- D: Bottom basket (Part #XRF135MKBT)
- E: Finial (3) (Part #XRF135MKFIN)
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not lighting up
Ensure the power is turned on at the circuit breaker and bulbs are securely installed.
Fixture feels loose
Ensure the ceiling pan is rotated fully into the narrow part of the key slots and mounting screws are tightened.
Before use
- Turn off power at the circuit breaker before starting installation.
- Ensure you have 3 Candelabra base bulbs (not included).
- Verify all parts (mounting hardware, ceiling pan, bottom basket, finials) are present.
- Ensure installation is performed by a licensed electrician.
Show more Show less
Specs in practice
- Recommended Wattage
- 40W per bulb
Images and diagrams
- The wiring diagram illustrates the connection of fixture wires to the supply wires within the outlet box.
- The crystal arrangement diagram shows the alternating pattern of crystal A and B on the rings.
Model compatibility
- Suitable for damp locations.
- Requires Candelabra base bulbs.
