Assembly Instructions for Crystorama 1005-CH-CL-MWP Five Light Chandelier
Get started with your Crystorama 1005-CH-CL-MWP chandelier. This assembly guide covers installation steps, wiring, crystal placement, and safety warnings for your five-light fixture.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1005-CH-CL-MWP five-light chandelier, including wiring, crystal dressing, and part identification. p. 1, 2
Key actions
- Install the fixture by following the 8-step process, which includes attaching the center column, glass arms, and mounting bar. p. 1
- Dress the crystals according to the specified sets (A through G). p. 1
First start
- Place fixture parts on a soft cloth-covered platform before installation. p. 1
- Ensure power is turned off and installation is performed by a licensed electrician. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base Bulb | Required bulb base type | p. 1 |
| Wattage | 40W recommended, 60W Max | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Dry rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1

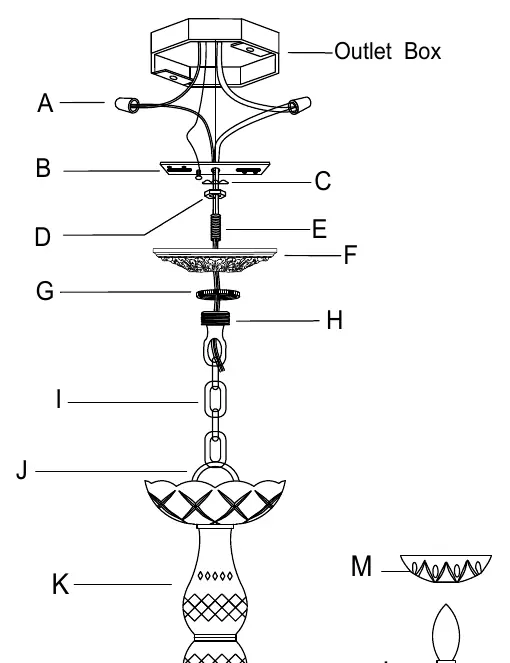

- Part Numbers and Exploded View p. 2
Table of contents
Manual images
Click an image to enlargeImportant Information
This chandelier is designed for indoor use and is Dry rated. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. Always turn off power at the circuit breaker before beginning installation.
Installation Steps
- Preparation: Place the fixture parts on a soft cloth-covered platform to prevent damage.
- Center Column: Screw the center column kit onto the distributor box.
- Bottom Assembly: Place the bottom bowl, check ring, bottom bobeche, and check ring in that order over the bottom distributor box. Secure with the finial.
- Arm Installation: Slightly loosen each screw on the top plate. Pull the female plug through the hole. Connect the male plug at the end of the arm with the female plug. Push the arm end with the metal tab through the hole until stopped by the tab. Twist the metal tab counter-clockwise until it locks onto the loose screws, then tighten the screw to secure the arm. Repeat for all arms.
- Scrolls and Bobeches: Insert the scrolls onto the holder and place the bobeche over the socket.
- Mounting: Attach the mounting bar onto the outlet box.
- Wiring and Canopy: Raise the fixture, perform the wire connections, and attach the canopy over the mounting bar, securing it with the collar ring.
- Final Adjustments: Decide the desired hanging height and adjust the chain length accordingly.

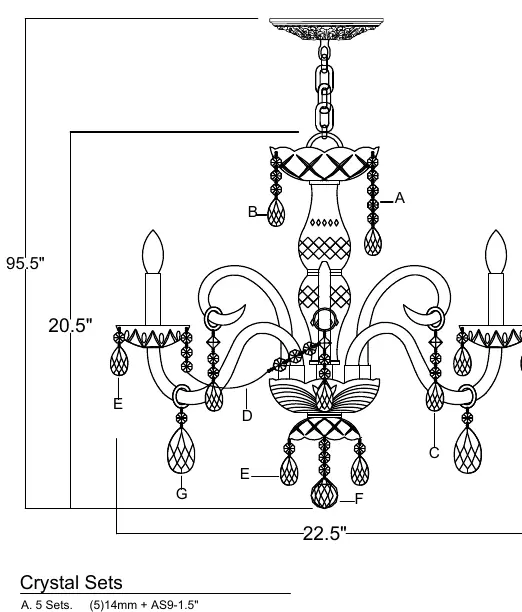

- Crystal Dressing: Dress the crystals as illustrated in the assembly diagram.
Technical Specifications
- Bulb Requirements: 5 Candelabra base bulbs.
- Wattage: 40 Watts recommended, 60 Watts maximum per bulb.
- Recommendation: Use LED bulbs for extended use.
Safety Warnings
This product contains lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.p65warnings.ca.gov.
Official resources from the manual
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not lighting up
Ensure bulbs are screwed in correctly and the power is turned on at the breaker. Verify all plug connections for the arms are secure inside the metal plate.
Arms loose or not sitting flush
Ensure the metal tab on the arm is pushed through the hole and twisted counter-clockwise until it locks onto the screws, then tighten the screw firmly.
Before use
- Ensure power is turned off at the circuit breaker
- Verify all parts are present according to the parts list
- Prepare a soft cloth-covered platform for assembly
- Confirm you have 5 Candelabra base bulbs (40W recommended)
Show more Show less
Specs in practice
- Candelabra Base
- Standard E12 base bulbs required.
Images and diagrams
- The wiring diagram shows the connection of the fixture to the outlet box.

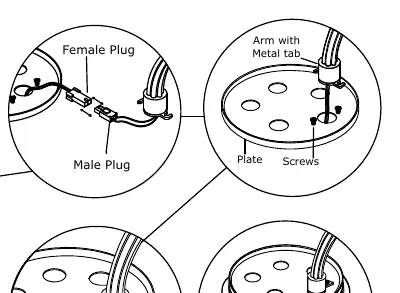

- The arm installation detail shows how to connect the male and female plugs and lock the arm into the plate.
Model compatibility
- Use LED bulbs for extended use.
- Not suitable for damp or wet locations.
