Crystorama 1112-CH-CL-MWP Chandelier Assembly Instructions
Quick assembly and installation guide for the Crystorama 1112-CH-CL-MWP chandelier. Includes detailed steps for arm installation, wiring, crystal placement, and a complete parts list.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides assembly instructions for the Crystorama 1112-CH-CL-MWP chandelier. Important: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off the power before beginning installation.
Bulb Requirements: This fixture requires 12 Candelabra Base bulbs. The recommended wattage is 40 Watts, with a maximum of 60 Watts. LED bulbs are recommended for extended use.
Installation Steps
- Prepare the fixture: Place the fixture parts on a soft, cloth-covered platform to prevent damage.
- Install the arms: Slightly loosen each screw on the metal plate. Pull a female plug through the hole in the upper metal plate. Connect the male plug at the end of the arm with the female plug. Push the arm end with the metal tab through the hole until it stops. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all arms.
- Assemble the center column: Place the bottom bowl, two metal washers, the bottom bobeche, and a metal washer in that order over the distributor box. Secure the assembly with the finial.
- Mounting: Attach the mounting bar onto the outlet box.
- Adjust height: Decide the desired hanging height and adjust the chain to the correct length.
- Wiring: Raise the fixture up and perform the wire connection. Attach the canopy over the mounting bar and secure it with the collar ring.
- Crystals: Dress the crystals as illustrated in the crystal sets list.
Crystal Sets

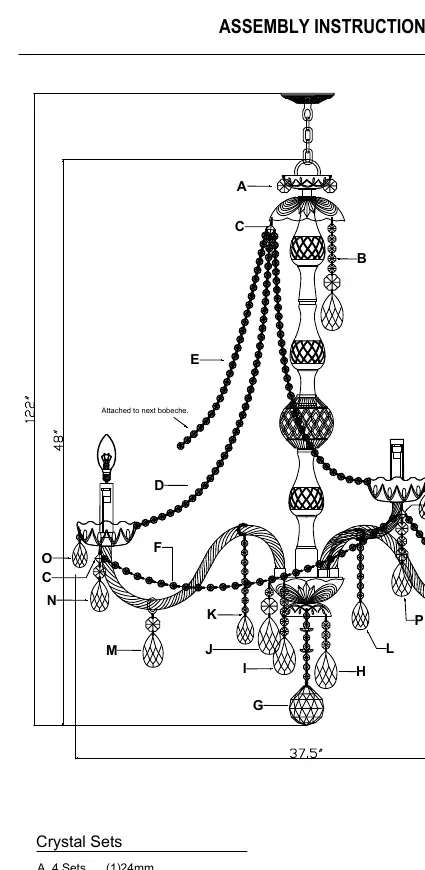

The fixture includes various crystal sets (A through P) that must be attached according to the diagram. Each set contains specific combinations of beads, rosettes, and balls (e.g., Set A: 4 sets of 24mm crystals; Set B: 6 sets of 14mm, 30mm, and AS9-3" crystals).
Safety and Maintenance
The fixture is Damp rated, making it suitable for damp locations. This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.p65warnings.ca.gov.
Official resources from the manual
Manufacturer information
Crystorama
Practical help
Common problems
Arm is loose or not secure
Ensure the metal tab on the arm is twisted counter-clockwise until it locks onto the loose screws on the metal plate, then tighten the screw firmly.
Difficulty connecting arm plugs
Ensure the female plug is pulled through the hole in the metal plate before attempting to connect the male plug from the arm.
Before use
- Turn off main power at the circuit breaker.
- Verify you have 12 Candelabra Base bulbs (40W-60W).
- Ensure the installation surface is stable and can support the fixture weight.
- Lay out all crystal sets (A-P) to ensure all parts are present.
- Ensure you have a soft, cloth-covered surface for assembly.
Show more Show less
Specs in practice
- Candelabra Base
- Standard E12 bulb base type.
Images and diagrams

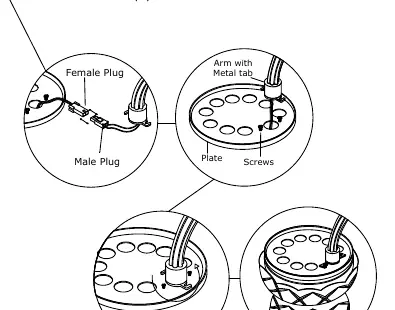

- The arm installation detail shows the specific sequence of connecting the male/female plugs and locking the metal tab into the plate.

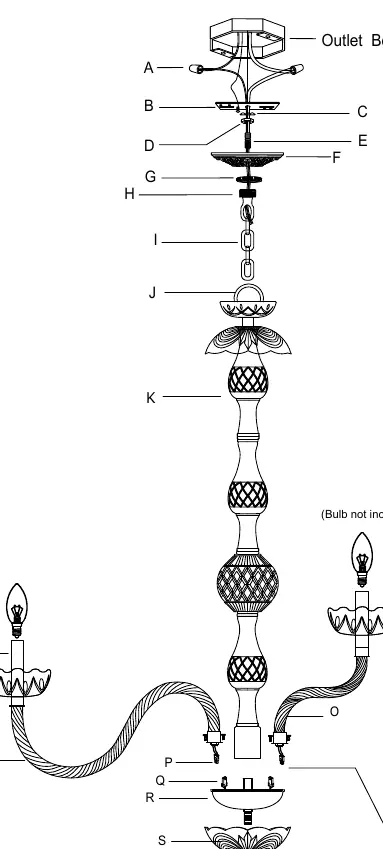

- The exploded view diagram illustrates the correct order of the center column assembly, including the distributor box, bowls, and bobeches.
