Crystorama 1135-CH-CL-MWP Chandelier Assembly Guide

Important Information

This chandelier must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. The fixture is damp rated. Warning: This product can expose you to lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.

Bulb Requirements: You will need 12 Candelabra base bulbs. 40 Watts is recommended, with a 60 Watts maximum. LED bulbs are recommended for extended use.

Installation Instructions

Before starting, place the fixture parts on a soft, cloth-covered platform to prevent damage.

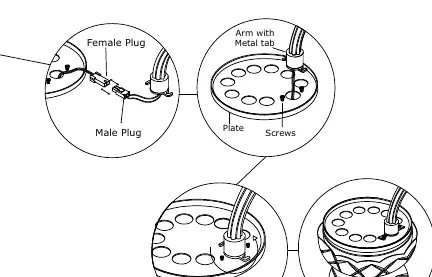

1. Install Arms: For both 8-inch and 12-inch arms, slightly loosen each screw on the metal plate. Pull a female plug through a hole in the upper metal plate. Connect the male plug at the end of the arm with the female plug. Push the end of the arm with the metal tab through the hole until stopped by the metal tab. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all arms.
2. Center Column: Screw the center column kit onto the distributor box.
3. Bottom Assembly: Place the bottom bowl, metal washer, bobeche, and metal washer in that order over the distributor box. Secure with the finial.
4. Mounting: Attach the mounting bar onto the outlet box.
5. Height Adjustment: Decide the desired hanging height and adjust the chain to the correct length.
6. Wiring: Raise the fixture up and perform the wire connection. Attach the canopy over the mounting bar and secure it with the collar ring.
7. Crystal Dressing: Dress the crystals as illustrated in the provided diagram.

Crystal Sets Reference

• A: 64 Sets (1) 14mm + (1) AS9-2"
• B: 6 Sets (3) 14mm + (1) Square + (3) 14mm + AS9-3"
• C: 12 Sets (14) 14mm
• D: 6 Sets (1) 14mm + AS9-1.5"
• E: 6 Sets (1) Ring + (1) Square + (1) 14mm + (1) AS9-3"
• F: 1 Piece (3) 14mm + AS8-40mm Ball
• G: 6 Sets (24) 14mm
