Assembly Instructions for Crystorama 1155-PB-CL-MWP Chandelier
Quick assembly and installation guide for the Crystorama 1155-PB-CL-MWP chandelier. Includes wiring steps, arm installation, crystal placement, and parts list.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1155-PB-CL-MWP chandelier, including wiring, crystal dressing, and part identification. p. 1, 2
Key actions
- Install upper and lower arms by connecting plugs and locking the metal tab. p. 1
- Assemble the bottom bowl, vase, and bobeche components. p. 1
- Dress the crystals. p. 1
First start
- Turn off power and hire a licensed electrician. p. 1
- Prepare the workspace. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base | p. 1 |
| Wattage | 40 Watts recommended, 60 Watts Max | Power rating per bulb | p. 1 |
| Rating | Damp rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1
- Part Numbers and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This chandelier is damp rated and requires installation by a licensed electrician in accordance with the National Electric Code. Before starting, ensure the power is turned off at the circuit breaker. You will need 15 Candelabra base bulbs (40W recommended, 60W max). LED bulbs are recommended for extended use.
Installation steps
Place all fixture parts on a soft, cloth-covered platform to prevent scratching during assembly.
Installing the arms
- Slightly loosen each screw on the metal plate.
- Pull a female plug through a hole in the upper metal plate.
- Connect the male plug at the end of the upper arm with the female plug you just pulled.
- Push the end of the arm with the metal tab through the hole until stopped by the metal tab (this should push the wires and plugs back inside the metal plate).
- Twist the metal tab counter-clockwise until both inserts lock onto the loose screws.
- Tighten the screw to secure the arm in place.
- Repeat these steps for all upper and lower arms.
Center column and mounting
- Assemble the center column by stacking the bottom bowl, metal washer, check ring, coupling, glass vase, check ring, metal washer, and bottom bobeche in the specified order over the distributor box-2. Secure with the finial.
- Screw the Center column kit 1 onto the center column kit 2.
- Attach the mounting bar onto the outlet box.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture, perform the wire connections, attach the canopy over the mounting bar, and secure it with the collar ring.
Dressing the crystals

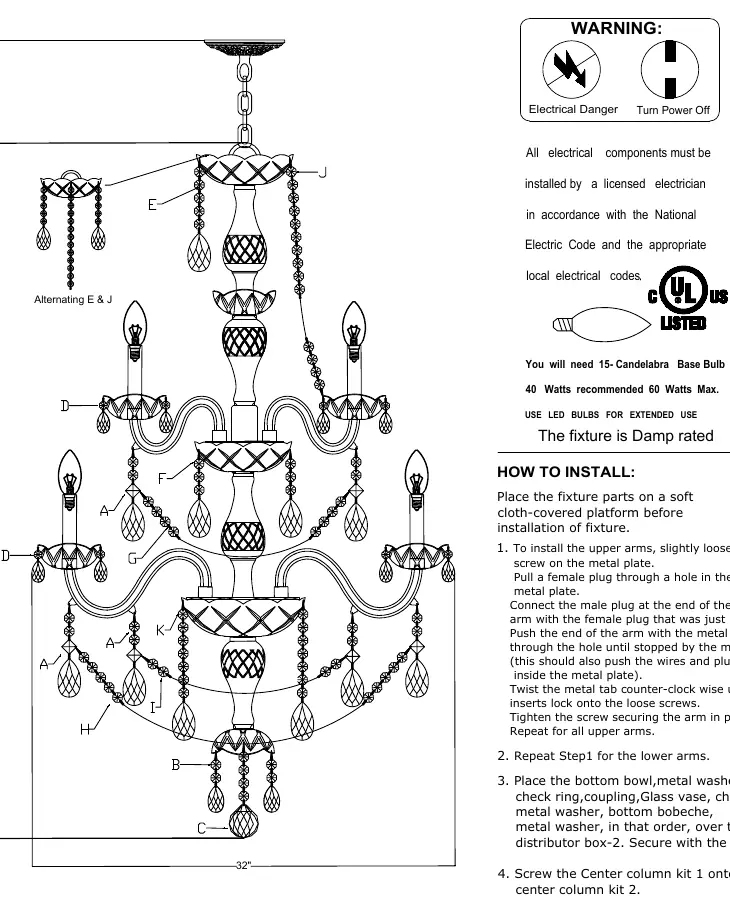

Refer to the Crystal Sets list provided in the manual to identify the correct placement for sets A through K. Each set corresponds to specific crystal sizes and shapes that should be hung as illustrated in the main assembly diagram.
Manufacturer information
Crystorama
Practical help
Common problems
Arms are loose or not locking
Ensure the metal tab is twisted counter-clockwise until both inserts lock onto the loose screws on the metal plate before tightening the screw.
Fixture not hanging straight
Adjust the chain length and ensure the mounting bar is securely and levelly attached to the outlet box.
Wiring connection difficulties
All electrical components must be installed by a licensed electrician. Ensure the male and female plugs are fully connected and pushed back into the metal plate.
Before use
- Ensure power is turned off at the circuit breaker.
- Verify you have 15 Candelabra base bulbs (40W recommended, 60W max).
- Place fixture parts on a soft, cloth-covered platform.
- Confirm you have a licensed electrician for installation.
- Check that all crystal sets (A-K) are accounted for.
Show more Show less
Images and diagrams

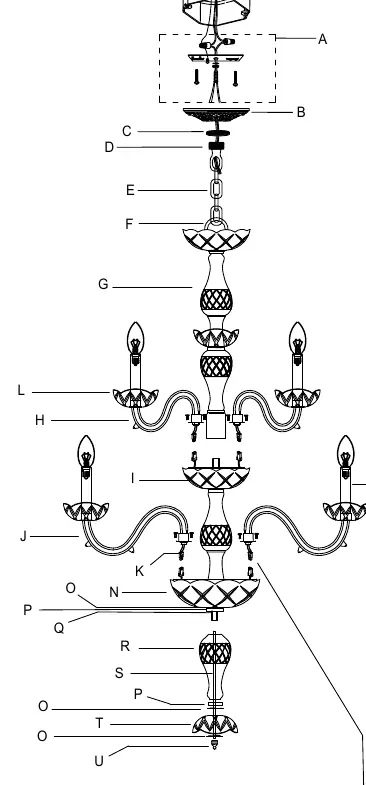

- The manual includes a detailed parts diagram showing the assembly order of the center column, arms, and crystal sets.

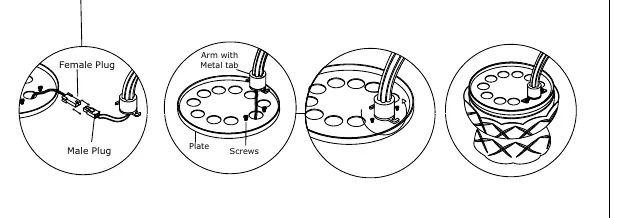

- Specific diagrams illustrate the arm-to-plate connection mechanism using male/female plugs and metal tabs.
Model compatibility
- Requires 15 bulbs.
