Assembly Instructions for Crystorama 1156-CH-CL-MWP Chandelier
Comprehensive assembly and installation guide for the Crystorama 1156-CH-CL-MWP chandelier. Includes detailed steps for arm installation, crystal arrangement, wiring, and critical safety cable mounting procedures for heavy fixtures.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1156-CH-CL-MWP chandelier, including arm installation, crystal placement, wiring, and safety cable installation for heavy fixtures. p. 1, 2, 3, 4
Key actions
- Install arms by loosening screws on the metal plate, connecting plugs, and locking the metal tab. p. 1
- Install safety cable to a structural member. p. 3, 4
- Dress crystals onto the fixture. p. 1
First start
- Place fixture parts on a soft cloth-covered platform, install arms, assemble center column, attach mounting bar, adjust chain, wire, and dress crystals. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb | 25x Candelabra Base | Required bulb type and quantity | p. 1 |
| Wattage | 40 Watts recommended, 60 Watts Max | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Damp rated | Environmental suitability | p. 1 |
| Weight | > 50 lbs | Fixture weight requirement | p. 4 |
Where to find it in the PDF
- Assembly instructions and crystal sets p. 1
- Part numbers and hardware list p. 2
- Safety cable installation instructions p. 3
- Mounting instructions for 100lb rated outlet box p. 4
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Warning: This fixture exceeds 50 lbs. It must be installed using an outlet box approved for up to 100 lbs or installed independently of the existing outlet box. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off power at the circuit breaker before beginning installation.
This fixture is Damp rated. The product contains materials that may expose you to lead, known to the State of California to cause cancer and/or birth defects.
Assembly Instructions
Place the fixture parts on a soft, cloth-covered platform before beginning assembly.
Arm Installation
- Slightly loosen each screw on the metal plate.
- Pull the female plug through the hole in the upper metal plate.
- Connect the male plug at the end of the arm with the female plug.
- Push the end of the arm with the metal tab through the hole until stopped by the metal tab.
- Twist the metal tab counter-clockwise until both inserts lock onto the loose screws.
- Tighten the screw to secure the arm in place. Repeat for all arms (6", 12", and 18").
Crystal Dressing
Dress the crystals according to the specific sets (A through O) as illustrated in the manual. Each set corresponds to specific crystal sizes and shapes (e.g., 14mm, squares, balls).
Installation Procedures
Mounting to a 100 lb. Approved Outlet Box:
- Feed the support cable from the fixture through the outlet box.

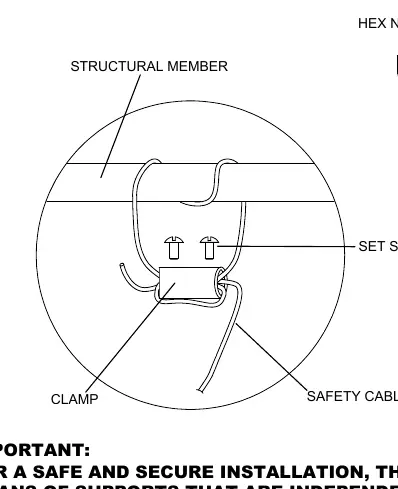

- Wrap the safety cable around a structural member and pull taut. Secure with the clamp and two set screws.
- Screw the threaded rod into the coupling until flush with the top.
- Pass the threaded pipe through the mounting strap and secure the screw collar loop.
- Attach the mounting strap to the outlet box using provided screws.
- Connect the fixture loop to the chain using quick links.
- Lace wires and safety cable through the chain and collar loop.
- Make electrical connections: Connect the fixture ground to the house ground, white/ribbed wire to house white, and black/smooth wire to house black.
- Secure the canopy over the outlet box using the collar ring.
Parts List
The fixture includes various components such as the center column kits, arms with holders, glass bowls, bobeches, and crystal sets. Refer to the parts diagram for specific identification of components like the hickey, nipple, hex nuts, and mounting hardware.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture weight exceeds 50 lbs
Must be installed using an outlet box approved for 100 lbs or supported independently of the outlet box.
Arm installation difficulty
Ensure the metal tab is twisted counter-clockwise until the inserts lock onto the loose screws.
Before use
- Turn off power at the circuit breaker.
- Verify the outlet box is rated for the fixture weight (over 50 lbs).
- Ensure a licensed electrician performs the installation.
- Lay out all crystal sets (A-O) before starting.
- Ensure all wires are tucked into the outlet box cavity before securing the canopy.
