Assembly Instructions for Crystorama 1157-CH-CL-MWP Chandelier
A comprehensive assembly and installation guide for the Crystorama 1157-CH-CL-MWP chandelier. This manual includes detailed wiring instructions, crystal arrangement sets, part identification, and essential safety warnings for proper...
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1157-CH-CL-MWP chandelier, including arm installation, crystal arrangement, and electrical connection steps. p. 1, 2
Key actions
- Install arms by connecting plugs and locking metal tabs. p. 1
- Assemble the center column. p. 1
- Mount fixture and connect wires. p. 1
First start
- Place fixture parts on a soft cloth-covered platform, install arms, assemble the center column, mount to the beam, adjust chain length, connect wires, and dress crystals. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base Bulb | Required bulb type | p. 1 |
| Wattage | 40 Watts | Recommended and Max wattage per bulb | p. 1 |
| Rating | Damp rated | Environmental rating | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Crystal Sets p. 1
- Part Numbers and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide for Assembly
This chandelier requires assembly by a licensed electrician. Before beginning, ensure you have a soft, cloth-covered surface to protect the fixture parts. You will need 20 Candelabra Base bulbs (40 Watts maximum each; LED bulbs are recommended for extended use). The fixture is damp-rated.
Safety Warnings
- Electrical Danger: Always turn off power at the circuit breaker before starting installation.
- Professional Installation: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes.
- Lead Warning: This product can expose you to lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
Installation Steps
- Prepare the fixture: Place parts on a soft, cloth-covered platform.
- Install the arms: For each arm (6", 10", and 15"):
- Slightly loosen each screw on the metal plate.
- Pull a female plug through the hole in the upper metal plate.
- Connect the male plug at the end of the arm to the female plug.
- Push the arm end with the metal tab through the hole until it stops.
- Twist the metal tab counter-clockwise until the inserts lock onto the loose screws.
- Tighten the screw to secure the arm.
- Assemble the center column: Thread the threaded pipe into the coupling at the bottom of Center Column Kit 2. Place the glass vase, check ring, metal washer, bobeche, and metal washer in that order. Secure with the finial.
- Mounting: Set the mounting hardware onto the beam.
- Adjusting: Decide the desired hanging height and adjust the chain to the correct length.
- Final Connection: Raise the fixture, perform the wire connection, attach the canopy over the mounting nipple, and secure with the collar ring.
- Finishing: Dress the crystals as illustrated in the crystal sets guide.
Crystal Arrangement
The fixture requires specific crystal sets (A through Q) to be installed. Refer to the crystal sets list in the manual for the exact composition of each set (e.g., Set A requires 126 sets of (1) 14mm crystal + (1) AS9-2" crystal).
Parts List
The fixture includes various components, including mounting hardware, center column kits, arms, glass bowls, vases, and bobeches. Refer to the Part Number diagram for specific identifiers (e.g., XSN1155CHCAN5IN for the canopy).
Manufacturer information
Crystorama
Practical help
Common problems
Fixture arms are loose or not secure
Ensure the metal tab on the arm is twisted counter-clockwise until the inserts lock onto the loose screws on the metal plate.
Difficulty connecting wiring
Ensure the male plug at the end of the arm is firmly connected to the female plug pulled through the metal plate before pushing the arm into place.
Before use
- Turn off power at the main circuit breaker
- Verify you have 20 Candelabra Base bulbs (40W max)
- Prepare a soft, cloth-covered surface for assembly
- Confirm all parts are present according to the part list
- Ensure a licensed electrician is available for installation
Show more Show less
Images and diagrams

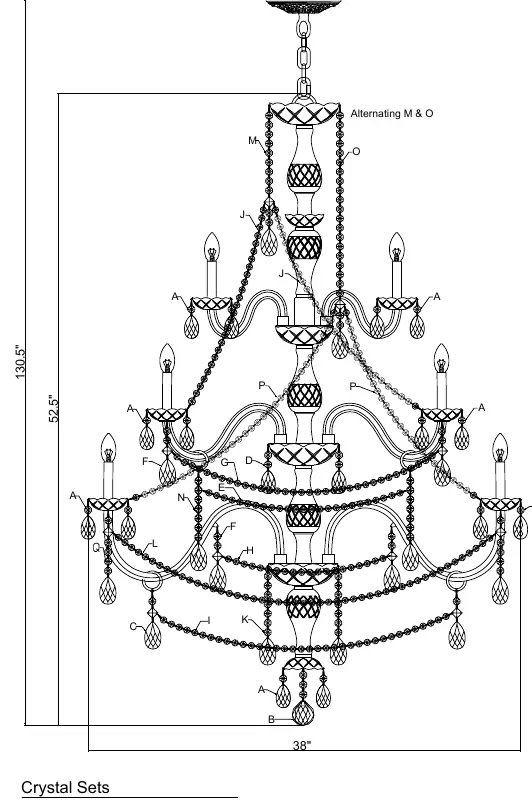

- The assembly diagram shows the tiered structure of the chandelier and the placement of arms

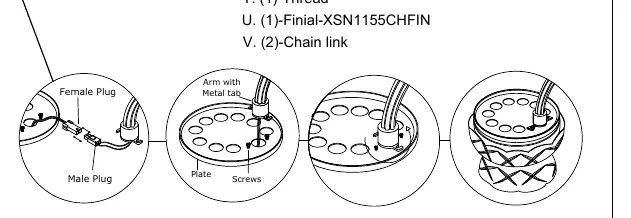

- Wiring diagrams illustrate the connection of male and female plugs within the metal plate
