Crystorama 1157-PB-CL-MWP Chandelier Assembly Instructions

Quick guide from the manual

This chandelier requires installation by a licensed electrician in accordance with the National Electric Code and local electrical codes. The fixture is damp-rated, making it suitable for various indoor environments. You will need 20 Candelabra base bulbs (40 Watts maximum each). LED bulbs are recommended for extended use.

Safety warnings

• Electrical Danger: Always turn off power at the circuit breaker before beginning installation.
• Lead Warning: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
• Professional Installation: All electrical components must be installed by a licensed electrician.

Installation instructions

1. Place the fixture parts on a soft, cloth-covered platform to prevent damage.

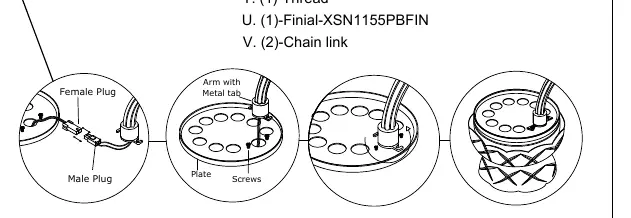

2. Install Arms: Slightly loosen each screw on the metal plate. Pull a female plug through the hole in the upper metal plate. Connect the male plug at the end of the arm with the female plug. Push the arm end with the metal tab through the hole until stopped. Twist the metal tab counter-clockwise until the inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all 6-inch, 10-inch, and 15-inch arms.
3. Tiering: The 10-inch arms attach to the middle tier, and the 15-inch arms attach to the bottom-most tier.
4. Center Column: Thread the threaded pipe into the coupling at the bottom of Center Column Kit 2. Place the glass vase, check ring, metal washer, bobeche, and metal washer in that order. Secure with the finial. Screw Center column kit 1 onto Center column kit 2.
5. Mounting: Set the mounting hardware onto the beam.
6. Height Adjustment: Decide the desired hanging height and adjust the chain to the correct length.
7. Wiring: Raise the fixture up and perform the wire connection. Attach the canopy over the mounting nipple and secure with the collar ring.

Crystal assembly

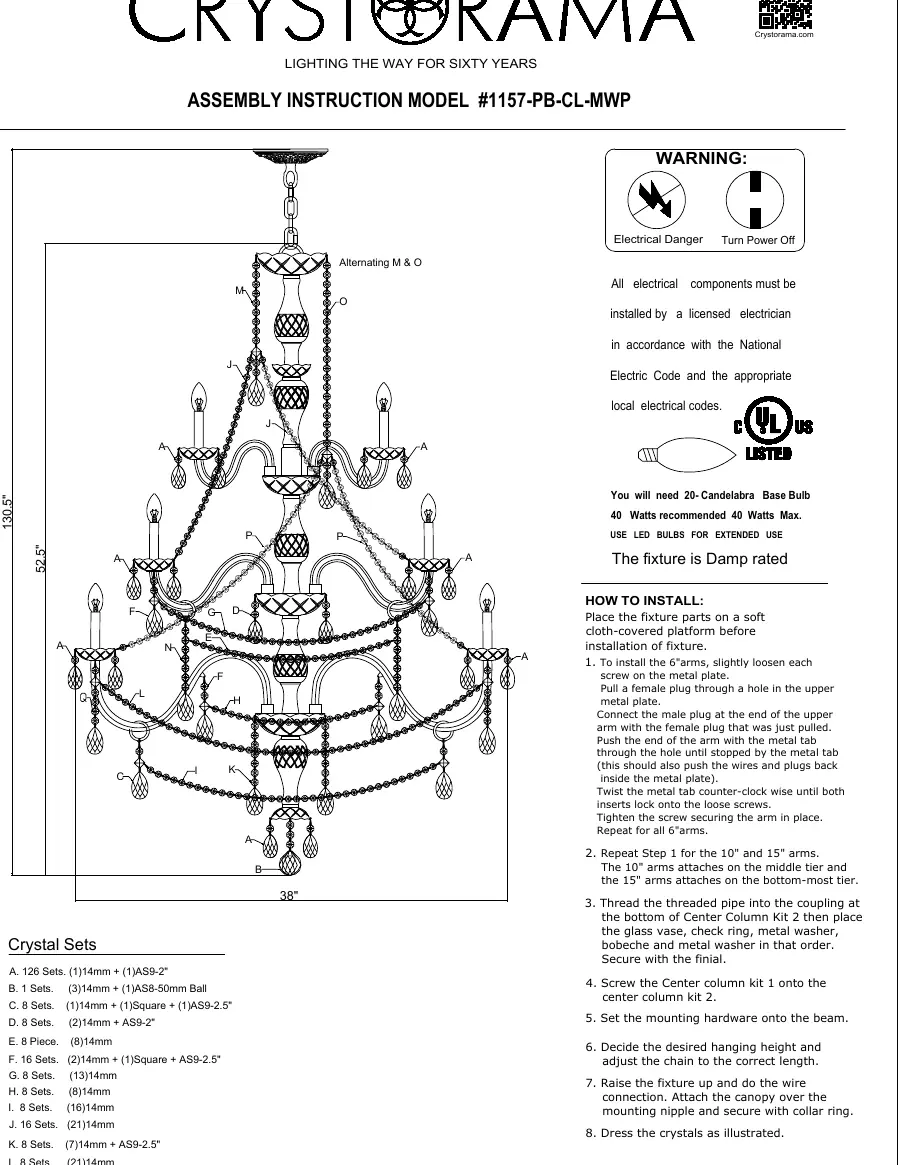

Dress the crystals as illustrated in the diagram. The crystal sets (A through Q) consist of various combinations of 14mm crystals, squares, balls, and specific pins. Refer to the Crystal Sets list on page 1 for the exact count and composition of each set.

Parts list

The fixture includes various components such as the canopy, collar loop, chain, center column kits, arms, bobeches, and glass vases. Refer to the exploded view diagram on page 2 to identify specific parts by their letter codes (A-V) and descriptions.
