Crystorama 1064-CH-CL-MWP Crystal Chandelier Assembly Instructions
Assembly and installation guide for the Crystorama 1064-CH-CL-MWP 4-light crystal chandelier. Includes parts list, wiring instructions, and bulb requirements.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1064-CH-CL-MWP chandelier, including a parts list and wiring guidance. p. 1, 2
Key actions
- Place fixture parts on a soft cloth-covered platform before installation. p. 1
- Attach the mounting bar onto the outlet box. p. 1
- Adjust the chain to the desired hanging height. p. 1
- Make wire connections and secure the canopy. p. 1
- Dress the crystal. p. 1
First start
- Place fixture parts on a soft cloth-covered platform. p. 1
- Attach mounting bar to outlet box. p. 1
- Adjust chain length. p. 1
- Connect wires and secure canopy. p. 1
- Install bobeche and dress crystal. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb | 4- Candelabra Base Bulb | 40 Watts recommended, 60 Watts Max. | p. 1 |
| Rating | Damp rated | Suitable for damp locations | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Part Numbers and Diagram p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This chandelier requires installation by a licensed electrician. It is damp-rated, making it suitable for various indoor environments. You will need 4 Candelabra base bulbs (40 Watts recommended, 60 Watts maximum). LED bulbs are recommended for extended use.
Safety warnings
- Turn off power at the source before beginning installation.
- Electrical components must be installed in accordance with the National Electric Code and local electrical codes.
- This product contains lead, which is known to the State of California to cause cancer and/or birth defects.
Installation steps
- Place the fixture parts on a soft, cloth-covered platform to prevent damage.
- Place the bottom bobeche and dish over the distributor box and secure with the finial.
- Attach the mounting bar onto the outlet box.
- Determine the desired hanging height and adjust the chain to the correct length.
- Raise the fixture, perform the wire connections, attach the canopy over the mounting bar, and secure with the collar ring.
- Place the bobeche over the socket.

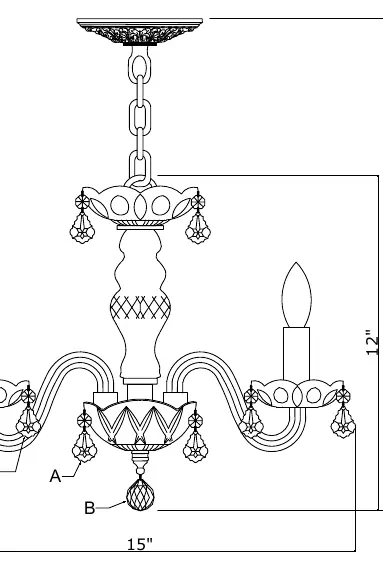

- Dress the crystal as illustrated.
Parts list
The fixture includes the following components:
- Mounting hardware (wire connectors, lock washer, hex nuts, mounting bar, threaded nipple, screws)
- Canopy, collar ring, collar loop, and chain
- Center column kit (including top bobeche, metal dish, glass vase, metal cover)
- Bobeches, candle sleeves, arms, distributor box, bottom bobeche, metal dish, and finial
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not hanging at desired height
Adjust the chain length before final installation.
Electrical connection issues
Ensure installation is performed by a licensed electrician in accordance with local codes.
Before use
- Verify all parts are present using the parts list
- Ensure power is turned off at the breaker
- Confirm ceiling outlet box can support the fixture weight
- Have 4 Candelabra base bulbs ready
Show more Show less
Specs in practice
- Lead Warning
- Product contains materials known to cause cancer/reproductive harm; handle with care
Images and diagrams
- The wiring diagram shows the connection from the outlet box to the fixture canopy.

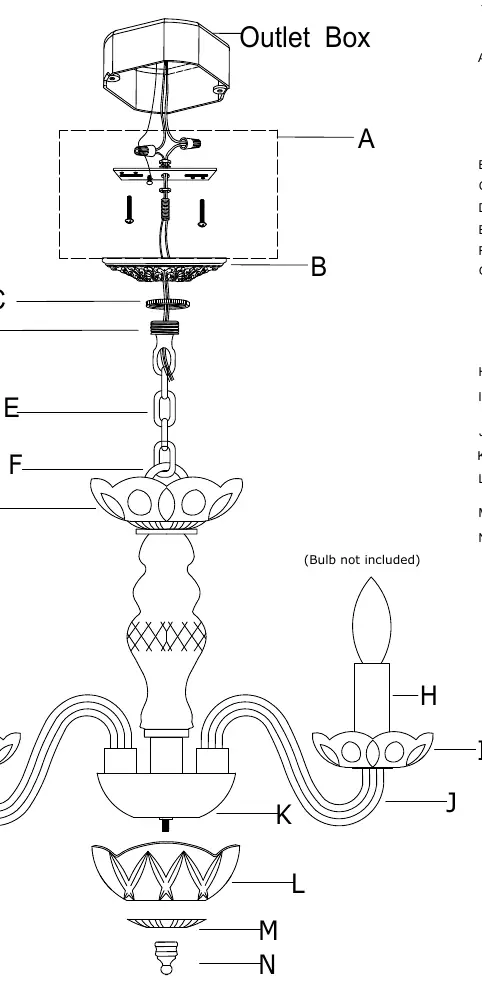

- The parts diagram identifies components A through N for assembly.
