Crystorama 1110-CH-CL-MWP Crystal Chandelier Assembly Instruction
Quick assembly and installation guide for the Crystorama 1110-CH-CL-MWP 10-light crystal chandelier. Includes wiring instructions, arm assembly steps, bulb requirements, and crystal dressing guide.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 1110-CH-CL-MWP chandelier, including wiring, crystal placement, and part identification. p. 1, 2
Key actions
- Install arms by connecting plugs and locking the metal tab. p. 1
- Attach mounting bar, adjust chain, and connect wires. p. 1
- Dress the crystals. p. 1
First start
- Turn off power and ensure installation is performed by a licensed electrician. p. 1
- Place fixture parts on a soft cloth-covered platform. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb | 10- Candelabra Base Bulb | Required bulb type and quantity | p. 1 |
| Wattage | 40 Watts recommended, 60 Watts Max | Recommended and maximum wattage per bulb | p. 1 |
| Rating | Dry rated | Environmental rating for the fixture | p. 1 |
Where to find it in the PDF
- Assembly instructions and crystal sets p. 1
- Part numbers and diagrams p. 2
Table of contents
Quick guide from the manual
This document provides assembly and installation instructions for the Crystorama 1110-CH-CL-MWP crystal chandelier. The fixture is dry-rated and requires installation by a licensed electrician in accordance with the National Electric Code and local electrical codes. Ensure all power is turned off before beginning installation.
Safety and installation requirements
- Electrical Safety: Turn off power at the circuit breaker before starting.
- Professional Installation: All electrical components must be installed by a licensed electrician.
- Bulb Requirements: Requires 10 Candelabra base bulbs. 40 Watts recommended, 60 Watts maximum. LED bulbs are recommended for extended use.
- Environment: The fixture is dry-rated (indoor use only).
- Preparation: Place fixture parts on a soft, cloth-covered platform to prevent damage during assembly.
Installation steps
- Arm Installation: Slightly loosen each screw on the metal plate. Pull a female plug through the hole in the upper metal plate. Connect the male plug at the end of the arm with the female plug. Push the end of the arm with the metal tab through the hole until stopped by the metal tab. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all arms.
- Bottom Assembly: Place the bottom bowl, two metal washers, bottom bobeche, and a metal washer in that order over the distributor box. Secure with the finial.
- Mounting: Attach the mounting bar onto the outlet box.
- Height Adjustment: Decide the desired hanging height and adjust the chain to the correct length.
- Wiring: Raise the fixture up and perform the wire connection. Attach the canopy over the mounting bar and secure with the collar ring.
- Crystal Dressing: Dress the crystals as illustrated in the provided crystal sets list.
Parts list
The fixture includes various components, including the mounting bar, canopy, collar ring, chain, center column kit, bobeches, arms, and crystal sets. Refer to the exploded parts diagram for specific part identification and quantities.
Manufacturer information
Crystorama
Practical help
Common problems
Arms are loose or not secure
Ensure the metal tab on the arm is twisted counter-clockwise until the inserts lock onto the screws on the metal plate, then tighten the screw.
Difficulty with wiring
Ensure power is turned off at the source. Installation must be performed by a licensed electrician.
Before use
- Verify power is turned off at the circuit breaker.
- Ensure you have 10 Candelabra base bulbs (max 60W each).
- Prepare a soft, cloth-covered surface for assembly.
- Check that all parts are present according to the parts list.
- Confirm the installation location is dry (dry-rated fixture).
Show more Show less
Specs in practice
- Candelabra Base
- Requires E12 base bulbs.
Images and diagrams
- The arm installation diagram shows the connection of male and female plugs and the locking mechanism using the metal tab and screws.

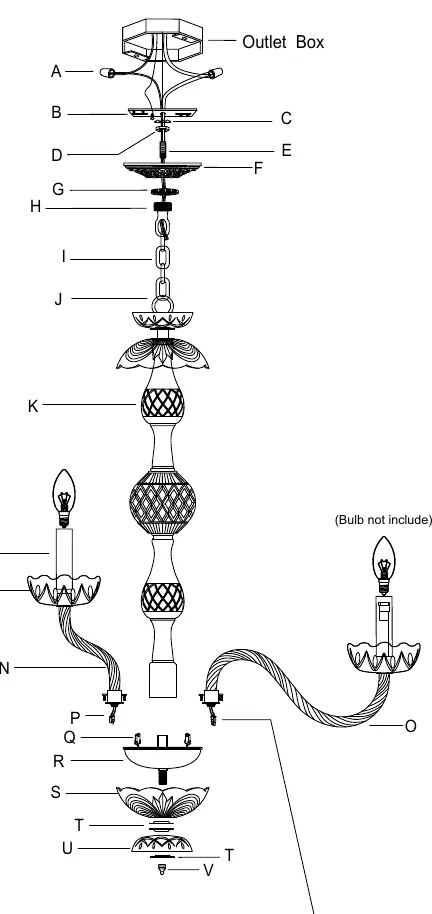

- The parts diagram illustrates the assembly order from the outlet box down to the finial.
Model compatibility
- Requires a licensed electrician for installation.
- LED bulbs are recommended for extended use.
Manual page author
Michael Turner
