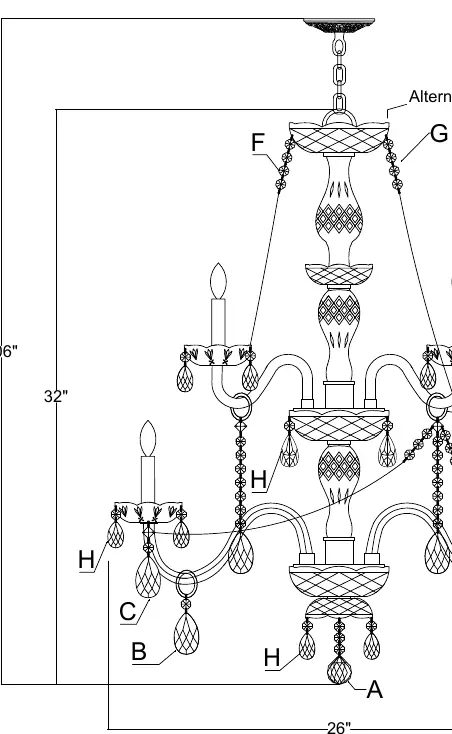

Assembly diagram showing the structure and arm placement

Page 1

Page 2

Page 2

Important Information

This chandelier is damp rated and must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off the power before beginning installation. The fixture requires 12 Candelabra base bulbs (40 Watts recommended, 60 Watts maximum). LED bulbs are recommended for extended use.

Assembly and Installation

Before starting, place all fixture parts on a soft, cloth-covered platform to prevent damage.

Install Arms: Slightly loosen each screw on the metal plate. Pull a female plug through a hole in the upper metal plate. Connect the male plug at the end of the upper arm with the female plug. Push the end of the arm with the metal tab through the hole until stopped by the metal tab. Twist the metal tab counter-clockwise until both inserts lock onto the loose screws. Tighten the screw to secure the arm. Repeat for all 6-inch arms.
Lower Tier Arms: Repeat the arm installation process for the 10-inch arms on the bottom tier.
Center Column: Place the metal washer, bobeche, and metal washer in order over distributor box-2. Secure with the finial. Screw the Center column kit 1 onto the center column kit 2.
Mounting: Attach the mounting bar onto the outlet box.
Height Adjustment: Decide the desired hanging height and adjust the chain to the correct length.
Wiring: Raise the fixture up to perform the wire connection. Attach the canopy over the mounting bar and secure it with the collar ring.

Crystal Installation

Dress the crystals onto the fixture as illustrated in the assembly diagram. The crystal sets are categorized as follows:

Set A: 1 Piece (3)14mm + (1)AS8-40mm Ball
Set B: 6 Sets (1)Ring + (1)14mm + AS9-2.5"
Set C: 6 Sets (1)Square + (1)14mm + AS9-2.5"
Set D: 6 Sets (1)Ring + (1)Square + (7)14mm + AS9-2.5"
Set E: 12 Sets (17)14mm
Set F: 6 Sets (18)14mm
Set G: 6 Sets (29)14mm
Set H: 71 Sets (1)14mm + AS9-2"

Parts List

The fixture includes mounting hardware (wire connectors, mounting bar, lock washer, hex nut, nipple, screws), canopy, collar ring, collar loop, chain, center column kits, arms (6-inch and 10-inch), bobeches, glass vases, metal covers, male plugs, metal washers, finial, and PVC candle sleeves.

Manufacturer information

Crystorama

Brand profile

Manufacturer website Open official website

Practical help

Common problems

Arm not locking into place

Ensure the metal tab is twisted counter-clockwise until both inserts lock onto the loose screws on the metal plate.

Wiring connection difficulty

Ensure the fixture is raised and supported properly while connecting wires to the outlet box; installation must be performed by a licensed electrician.

Before use

Verify all parts are present according to the parts list.
Ensure power is turned off at the source.
Prepare a soft, cloth-covered surface for assembly.
Confirm you have 12 Candelabra base bulbs (LED recommended).
Check that the mounting bar is securely attached to the outlet box.

Show more Show less

Specs in practice

Candelabra Base: Standard E12 bulb base type.
Recommended Wattage: 40W per bulb is recommended; do not exceed 60W per bulb.

Images and diagrams

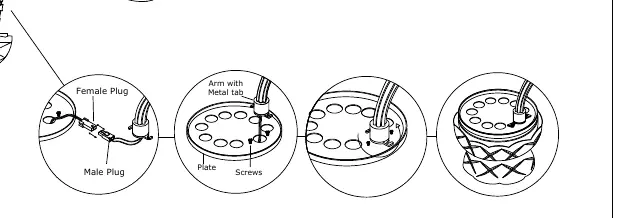

The arm installation diagram illustrates pulling the female plug through the plate, connecting the male plug, and twisting the metal tab to lock the arm.

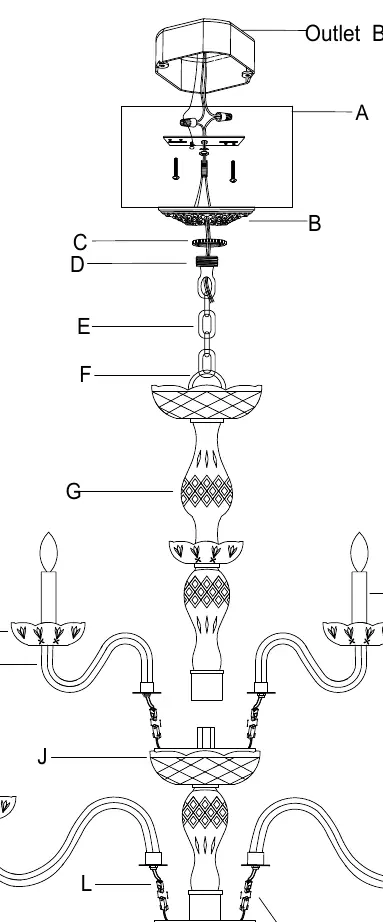

The parts diagram shows the vertical assembly order of the center column, distributor boxes, and bobeches.
