Crystorama 1483-HB-CL-MWP Majestic Three Light Ceiling Mount Assembly Instruction
Quick guide for the Crystorama 1483-HB-CL-MWP Majestic Three Light Ceiling Mount. Includes installation steps, crystal assembly, bulb requirements, and parts list.
Table of contents
Quick guide from the manual
This fixture is designed for indoor use in dry locations only. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Ensure power is turned off before beginning installation.
Installation instructions
- Perform a complete inventory of all parts and components before starting the installation.
- Safely attach the fixture to the outlet box.
- Install the bobeches and bulbs.
- Connect the power.
- Dress the fixture with crystals, starting with the pocket labeled (A).
- Apply crystal sets in alphabetical order.

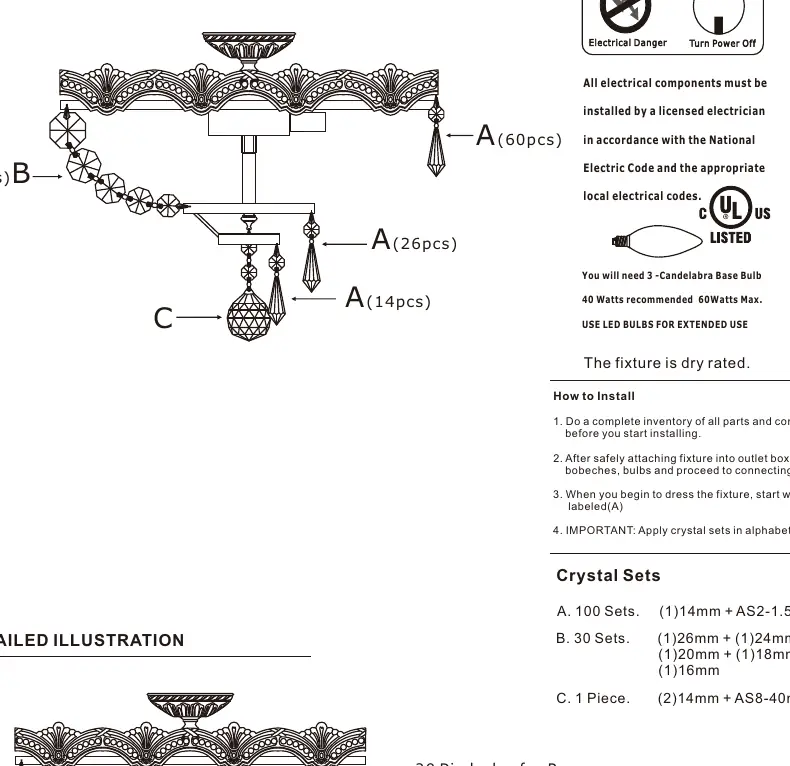

Crystal assembly
The fixture requires specific crystal sets to be installed:
- Set A (100 Sets): (1) 14mm + AS2-1.5"
- Set B (30 Sets): (1) 26mm + (1) 24mm + (1) 20mm + (1) 18mm + (1) 16mm
- Set C (1 Piece): (2) 14mm + AS8-40mm Ball
Bulb requirements
The fixture requires 3 Candelabra Base bulbs. 40 Watts is recommended, with a maximum of 60 Watts. Using LED bulbs is recommended for extended use.
Parts list
The following components are included:
- Wire Connector (2)
- Mounting Bar (1)
- Screw (1)
- Hex Nut (1)
- Ball Nut (1)
- Canopy (1)
- Vase (1)
- Banding kit (1)
- Nut (2)
- Thread (1)
- Metal Tube (1)
- 2-Tier Basket (1)
- Finial (1)
Safety and warnings
This product contains lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.P65warnings.ca.gov. The fixture is dry rated and should not be installed in damp or wet environments.
Official resources from the manual
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not lighting up
Ensure bulbs are properly seated and power is connected by a licensed electrician.
Missing crystals
Verify inventory against the Crystal Sets list (A, B, C) before starting assembly.
Before use
- Inventory all parts against the parts list
- Ensure a licensed electrician is available for installation
- Verify the outlet box is secure
- Check that the fixture is installed in a dry location
Show more Show less
Images and diagrams
- The assembly diagram shows the sequence of mounting the canopy, banding kit, and basket.
- Crystal sets are labeled A, B, and C with specific pin hole locations.
Model compatibility
- Use LED bulbs for extended use.
- Not suitable for damp or wet locations.
