Assembly Instruction for Crystorama 131-MK-CEILING Mini Chandelier
Quick guide for installing and assembling the Crystorama 131-MK-CEILING mini chandelier. Includes step-by-step instructions for hanging and ceiling mount configurations, crystal placement, and parts identification.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Crystorama 131-MK-CEILING mini chandelier, covering both hanging and ceiling-mounted installation methods. p. 1, 2
Key actions
- Install the fixture using either the 'For hanging' or 'For ceiling' procedure. p. 1
- Hang crystals on the rings, alternating between glass drop A and B. p. 1
First start
- Turn off power and ensure installation is performed by a licensed electrician. p. 1
- Install the bulb (1-Medium Base, 40W recommended, 60W max). p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb | 1-Medium Base Bulb | Required bulb type | p. 1 |
| Wattage | 40W recommended, 60W max | Power rating for bulb | p. 1 |
| Rating | Damp rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Warnings p. 1
- Parts List and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeImportant Information
This fixture must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. Always turn off power at the circuit breaker before beginning installation.
Technical Specifications:
- Bulb Type: 1 Medium Base bulb
- Wattage: 40 Watts recommended, 60 Watts maximum
- Rating: Damp rated
Installation for Hanging Configuration
- Determine the preferred hanging height and adjust the chain length accordingly.
- Open one link of the chain, connect it to the fixture loop, and close the link. Repeat for the canopy loop.
- Thread the mounting screws into the mounting bar and tighten with the small hex nut.
- Secure the mounting bar to the outlet box using the outlet box screws.
- Raise the canopy, allowing the mounting screws to protrude through the holes, and secure with the ball nut.
- Hang crystals on the metal ring and bottom basket, alternating between glass drop A and B.
- Hang glass drop C at the bottom of the bottom basket.
- Install the bulb (not included) into the socket.
Installation for Ceiling Configuration
- Loosen the hex nut of the canopy and disassemble the canopy.
- Remove the loop from the top of the fixture.
- Slide the canopy, metal washer, and lock washer over the nipple, then secure with the hex nut.
- Thread the mounting screws into the mounting bar and tighten with the small hex nut.
- Secure the mounting bar to the outlet box using the outlet box screws.
- Raise the canopy, allowing the mounting screws to protrude through the holes, and secure with the ball nut.
- Install the bulb (not included) into the socket.
- Hang crystals on the metal ring and bottom basket, alternating between glass drop A and B.
- Hang glass drop C at the bottom of the bottom basket.
Crystal Assembly
Proper crystal placement is essential for the fixture's appearance. Hang crystals on the rings and bottom basket by alternating between glass drop A and glass drop B. Ensure glass drop C is placed at the very bottom of the bottom basket.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture is not level
Ensure the mounting bar is securely and evenly attached to the outlet box and that the canopy is tightened properly.
Crystals are uneven
Verify that you are alternating between glass drop A and B as specified in the assembly diagram.
Before use
- Turn off power at the circuit breaker.
- Verify all parts are present according to the parts list.
- Ensure the outlet box is securely mounted.
- Confirm you have a Medium Base bulb (max 60W).
- Ensure the installation area is suitable for a damp-rated fixture.
Show more Show less
Images and diagrams

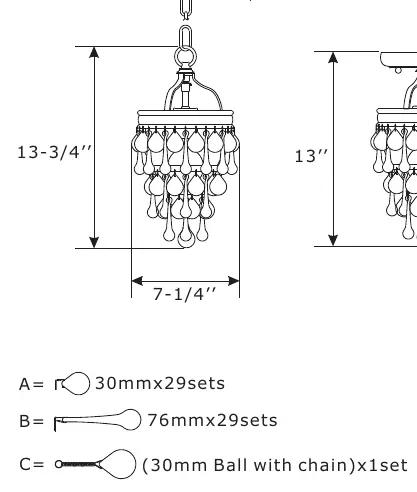

- The crystal placement diagram shows the specific pattern for hanging glass drops A and B on the metal ring and bottom basket.

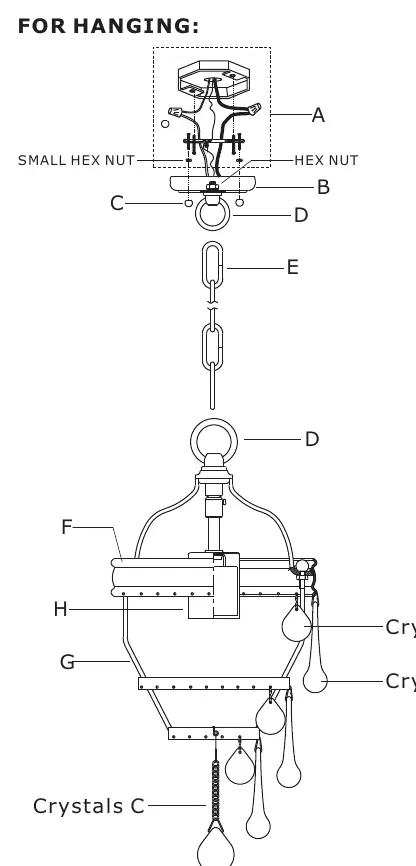

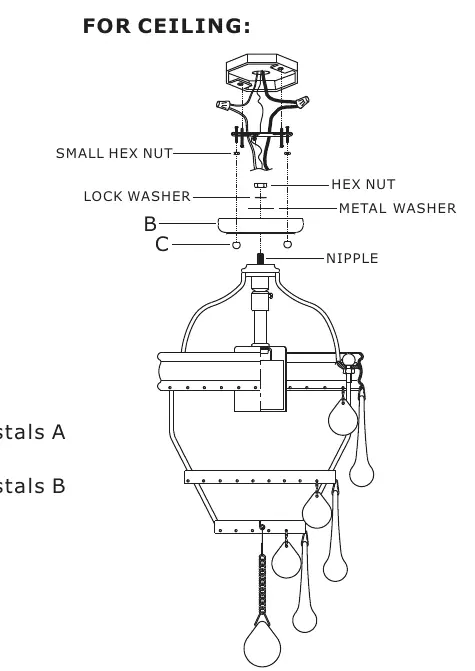

- The exploded view diagrams illustrate the difference between the 'Hanging' (chain) and 'Ceiling' (flush mount) installation hardware configurations.
Model compatibility
- Suitable for damp locations.
- Requires standard Medium Base bulbs.
