Crystorama 130-VG-CEILING Three Light Ceiling Mount Installation Manual
Installation guide for the Crystorama 130-VG-CEILING three-light fixture. Includes step-by-step instructions for both hanging and ceiling mount configurations, crystal assembly, and a complete parts list.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Crystorama 130-VG-CEILING light fixture, covering both hanging and ceiling-mount configurations, along with crystal assembly and bulb requirements. p. 1, 2
Key actions
- Install as a hanging fixture p. 1
- Install as a ceiling fixture p. 1
- Assemble crystals p. 1
First start
- Install bulbs p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Required bulb base type | p. 1 |
| Bulb Wattage | 40 Watts Recommended, 60 Watts Max | Recommended and maximum wattage per bulb | p. 1 |
| Fixture Rating | Damp rated | Environmental suitability | p. 1 |
Where to find it in the PDF
- Installation and Assembly Instructions p. 1
- Parts List and Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide for Installation
This fixture is designed for installation by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. Ensure the power is turned off at the source before beginning installation. This fixture is Damp rated.
Specifications:
- Bulb Type: 3x Candelabra Base
- Wattage: 40 Watts recommended, 60 Watts maximum
- Recommendation: Use LED bulbs for extended use
Installation for Hanging
- Determine the preferred hanging height and adjust the chain as required.
- Open one link of the chain, connect it to the fixture loop, and close the link. Repeat to connect the other end of the chain to the canopy loop.
- Thread the mounting screws into the matching holes of the mounting bar and tighten with the small hex nut.
- Secure the mounting bar to the outlet box using the outlet box screws.
- Raise the canopy, allowing the mounting screws to protrude through the holes in the canopy, and secure with the ball nut.
Installation for Ceiling Mount
- Loosen the hex nut of the canopy and disassemble the canopy.
- Remove the loop from the top of the fixture.
- Slip the canopy, the metal washer, and the lock washer over the nipple, then secure with the hex nut.
- Thread the mounting screws into the matching holes of the mounting bar and tighten with the small hex nut.
- Secure the mounting bar to the outlet box using the outlet box screws.
- Raise the canopy, allowing the mounting screws to protrude through the holes in the canopy, and secure with the ball nut.
Crystal Assembly
Follow these steps to attach the crystals to the fixture:

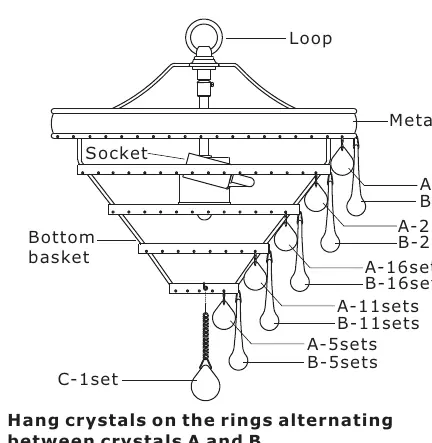

- Hang crystals on the metal ring and bottom basket, alternating between glass drop A and B.
- Hang glass drop C at the bottom of the bottom basket.
- Install the bulb (not included) into the socket.
Parts List
The following parts are included with the fixture:
- Mounting hardware
- Canopy (W5-7/8" x H1-1/8")
- Finials
- Loops
- Chain (L72", 4mm thick)
- Metal ring
- Bottom basket
- Sockets
Manufacturer information
Crystorama
Practical help
Common problems
Fixture is not secure
Ensure the mounting bar is securely fastened to the outlet box with the provided screws and that the ball nuts are tightened properly.
Bulb compatibility
Use Candelabra Base bulbs only. Do not exceed 60 Watts per bulb.
Before use
- Turn off electrical power at the source.
- Ensure a licensed electrician performs the installation.
- Verify all parts are present according to the parts list.
- Check that the outlet box is suitable for the fixture weight.
- Confirm the fixture is being installed in a suitable location (Damp rated).
Show more Show less
Images and diagrams

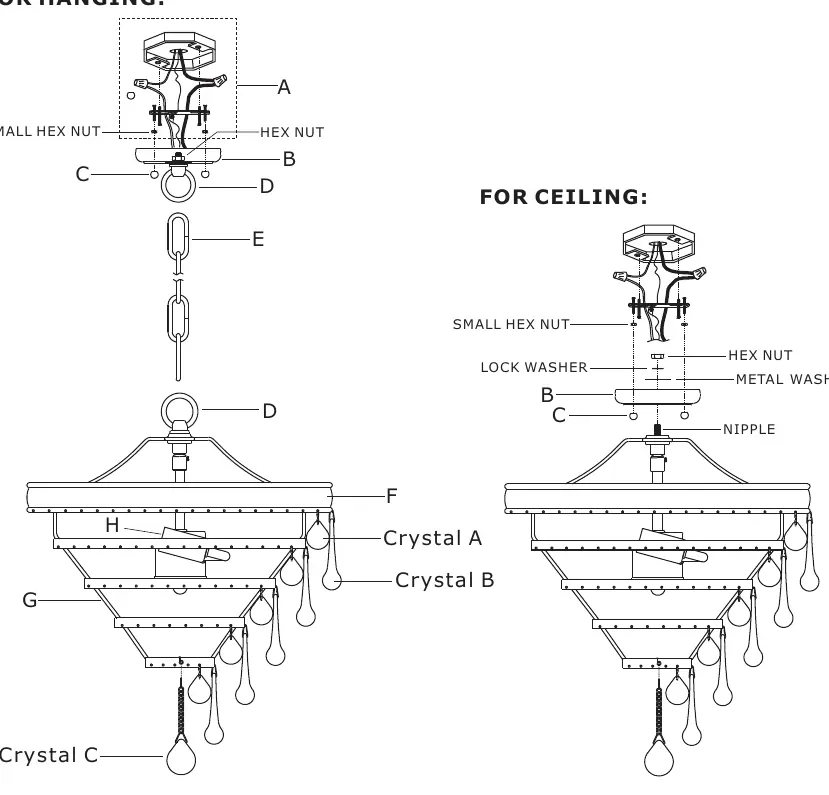

- The manual provides two distinct installation methods: hanging (using a chain) and ceiling mount (flush).
