Installation Guide for Danfoss Finger Guards VLT Soft Starter MCD 600
Official installation guide for Danfoss Finger Guards designed for VLT Soft Starter MCD 600. Includes safety warnings, parts list, and step-by-step installation instructions.
Quick answers from the manual
Quick answer
- Finger guards are installed by clipping retaining brackets to the base, feeding cables through the guards, connecting the cables, and securing the guards with cable ties. p. 2
Key actions
- Isolate power before installation p. 1
- Install retaining brackets p. 2
- Secure guards with cable ties p. 2
Problems and fixes
Cables do not fit through finger guards
Shorten the finger guards at the narrow end to make a bigger opening.
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Kit 175G0186 | Models 0144B–0579B and 0160C–0448C | Compatible soft starter models | p. 1 |
| Kit 175G0202 | Models 0654B–1250B | Compatible soft starter models | p. 1 |
Where to find it in the PDF
- Description and Parts List p. 1
- Installation Procedure p. 2
Table of contents
Quick guide from the manual
Safety Warning: The soft starter contains dangerous voltages when connected to mains. Always isolate the soft starter from mains voltage before attaching or removing accessories to prevent death or serious injury. Fit finger guards to all terminals, even if no cable is connected.
Description
Finger guards are designed to fit over the soft starter's power terminals. They increase the IP rating and prevent accidental contact with live terminals. When used with cables of 22 mm diameter or greater, they provide IP20 protection.
Parts List

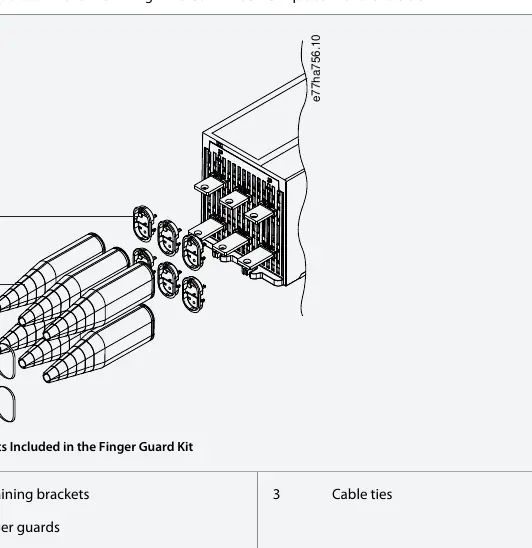

The kit includes the following items:
- Finger guards (6)
- Retaining brackets (6)
- Cable ties (6)
- Installation guide (1)
Installation
Follow these steps to install the finger guards:
- Disconnect the soft starter from mains and control voltage.
- Place 1 retaining bracket over each busbar and clip into the base of the soft starter.
- Feed each power cable through the narrow end of each finger guard.
- Connect the cables to the appropriate terminals of the soft starter. Note: If the cables do not fit through the finger guards, shorten the finger guards at the narrow end to make a bigger opening.
- Push the finger guard over each retaining bracket and secure in place with a cable tie.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Cables do not fit through the finger guards
Shorten the finger guards at the narrow end to create a larger opening.
Before use
- Isolate the soft starter from mains and control voltage before starting.
- Verify you have the correct kit for your soft starter model.
- Ensure all parts (guards, brackets, cable ties) are present.
- Check cable diameter (guards provide IP20 protection for cables 22 mm or greater).
Model compatibility
- Kit 175G0186: For models 0144B–0579B and 0160C–0448C.
- Kit 175G0202: For models 0654B–1250B.
- Finger guards are not available for models 0590C–1134C.
